Mid Self-Diagnosis

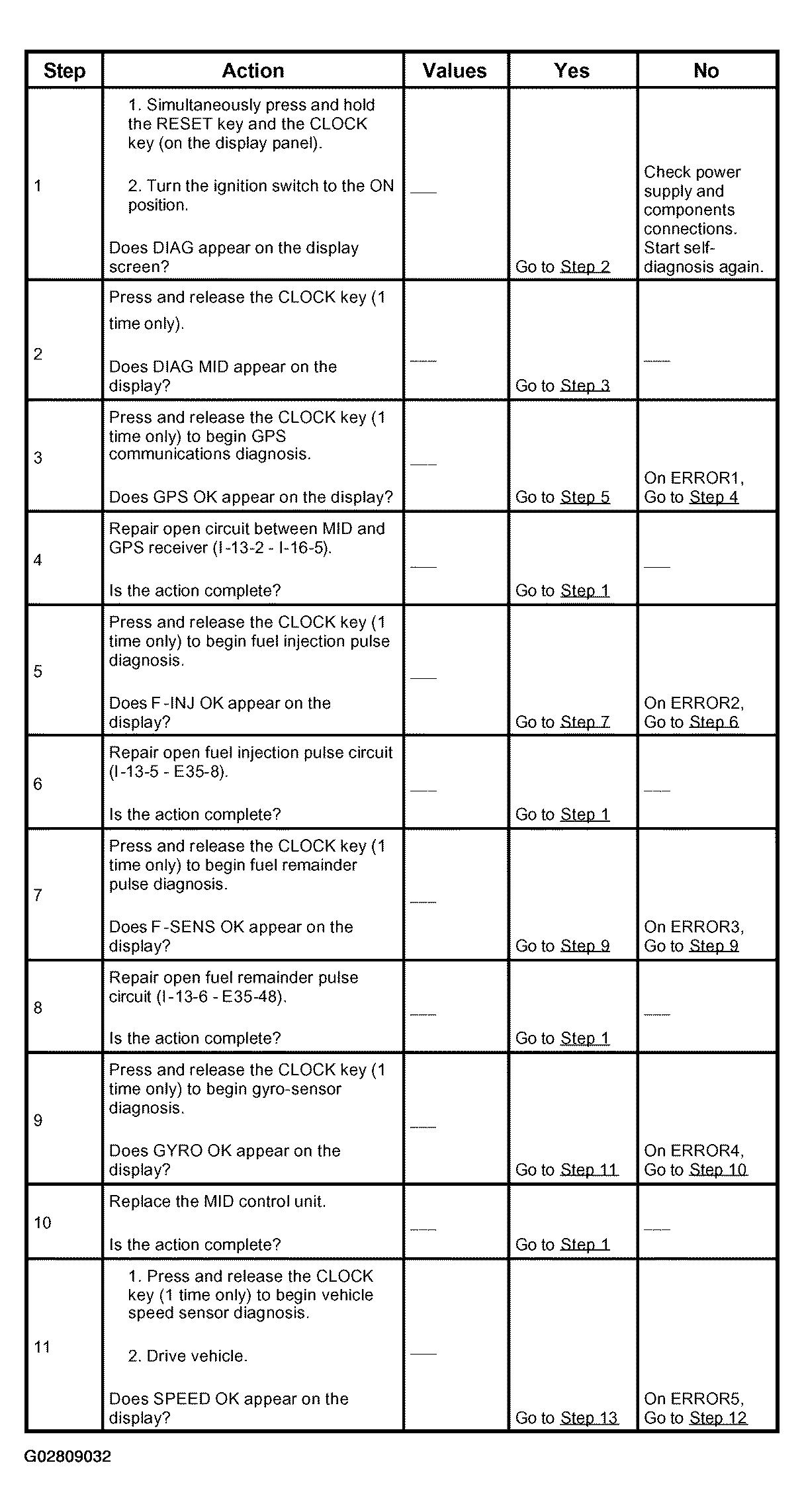

Fig 1: MID Self-Diagnosis

G02809032

Courtesy of ISUZU MOTOR CO.

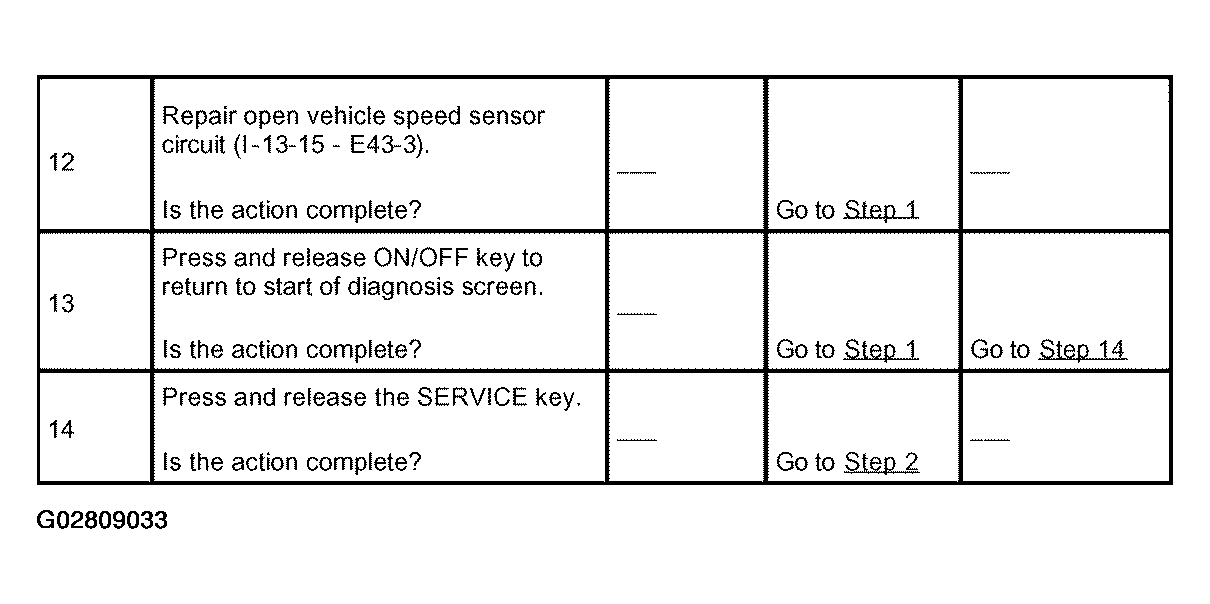

Fig 2: MID Self-Diagnosis

G02809033

Courtesy of ISUZU MOTOR CO.
