Audio Self-Diagnosis

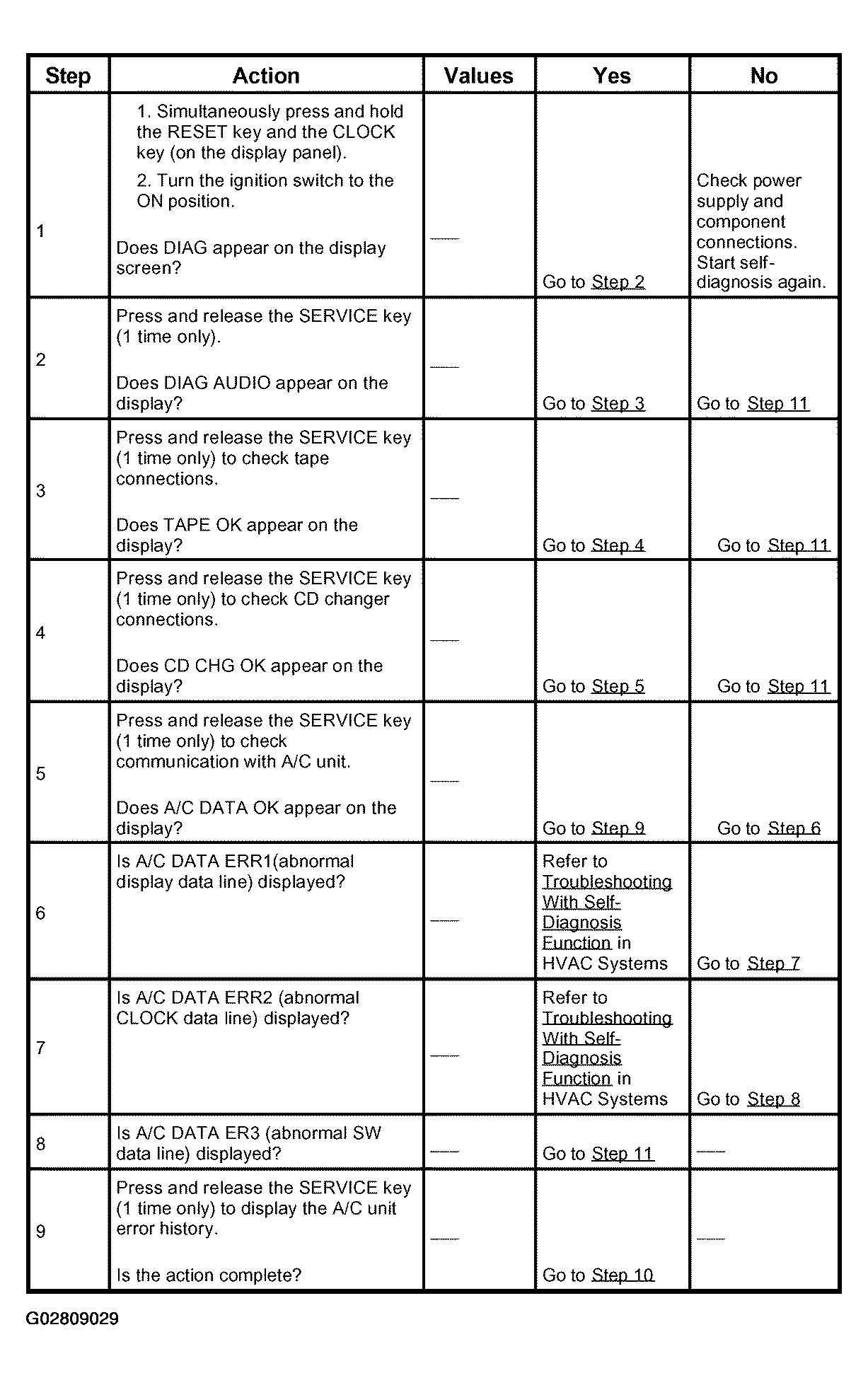

Fig 1: Audio Self-Diagnosis (1 Of 2)
G02809029Courtesy of ISUZU MOTOR CO.
NOTE: If prompted, refer to TROUBLESHOOTING WITH SELF-DIAGNOSIS FUNCTION in HVAC article.

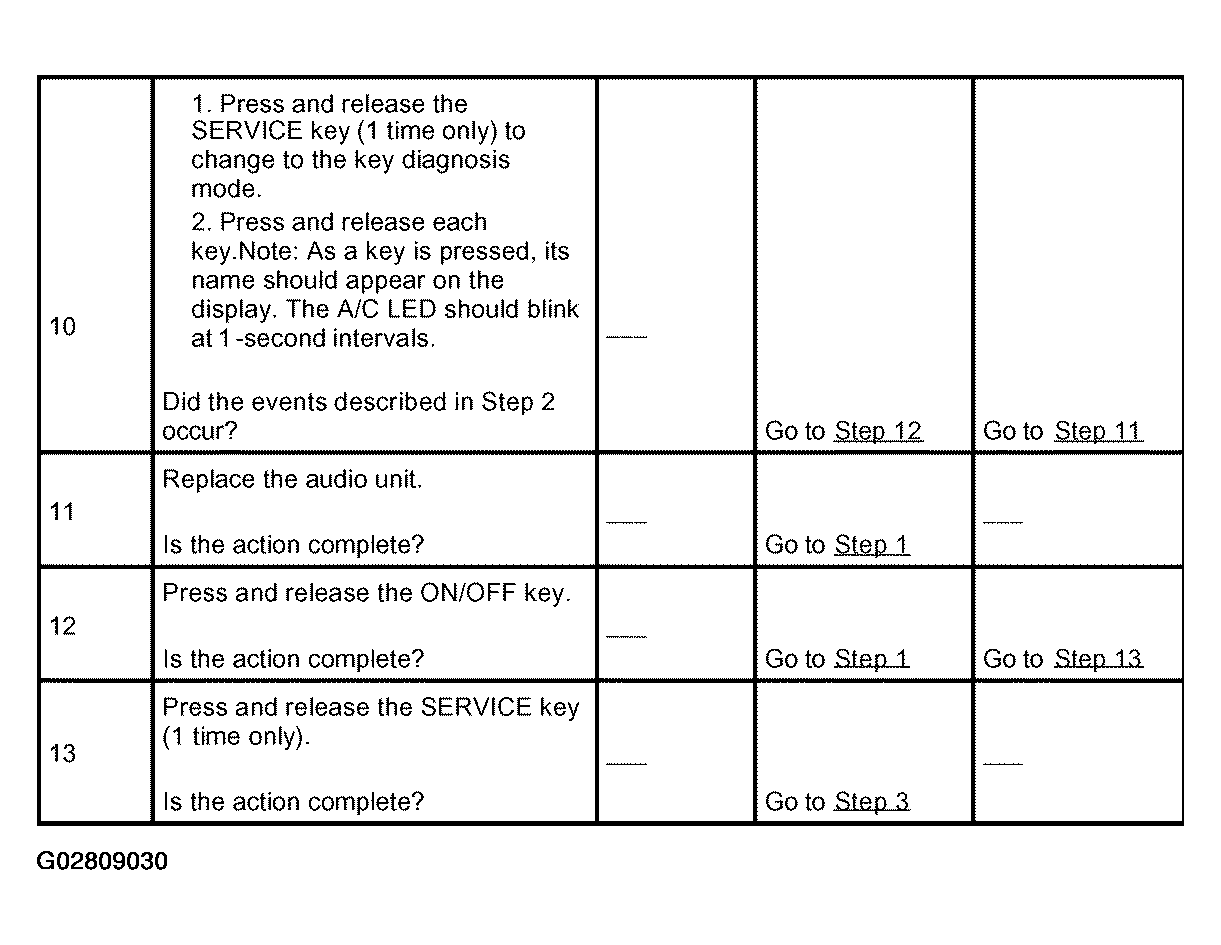

Fig 2: Audio Self-Diagnosis (2 Of 2)
G02809030Courtesy of ISUZU MOTOR CO.
