Instrument Cluster: Removal

  1. Disconnect battery ground cable.
  2. Remove Dash Side Trim Panel -LH.
  3. Remove lower cover assembly (2). See Fig 1 .
  4. Remove meter cluster assembly (1).

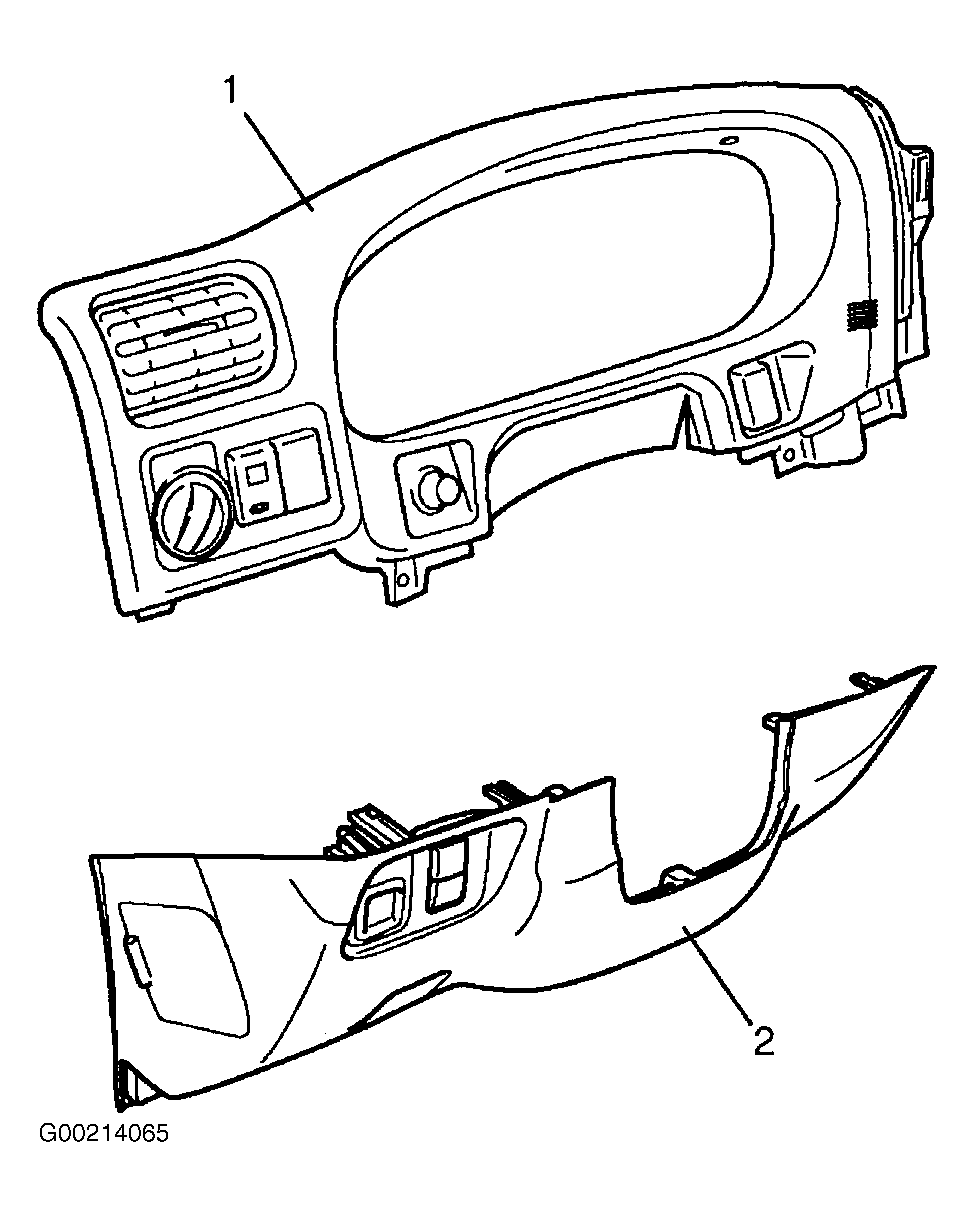

    Fig 1: Removing Lower Cover & Meter Cluster Assembly
    G00214065Courtesy of ISUZU MOTOR CO.
  5. Remove meter assembly (3). See Fig 2 .
    • Remove four fixing screws.
    • Disconnect meter connectors.

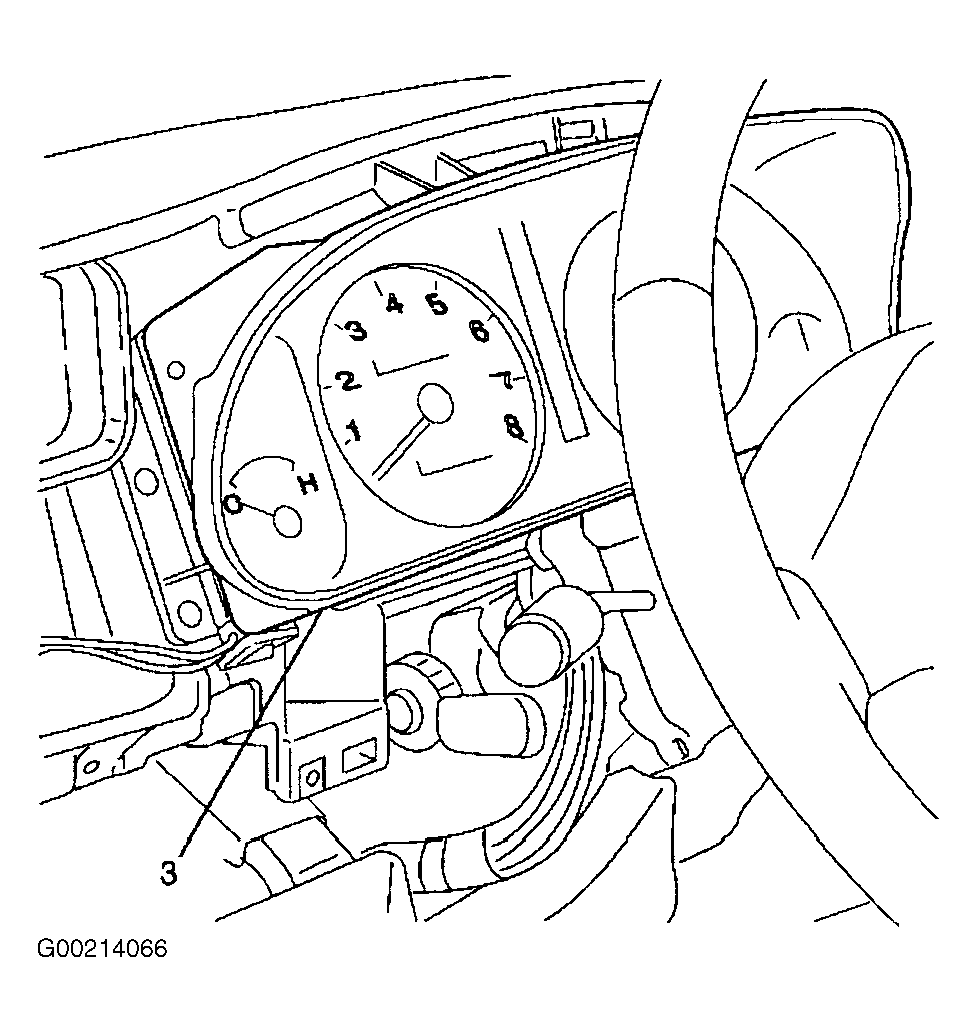

      Fig 2: Removing Meter Assembly
      G00214066Courtesy of ISUZU MOTOR CO.
      CAUTION: The removed meter assembly should be placed upright or with its face side up.
