Parts Location: Removal

  1. Disconnect the battery ground cable.
  2. Remove the pull box.
    • Remove the fixing screw.

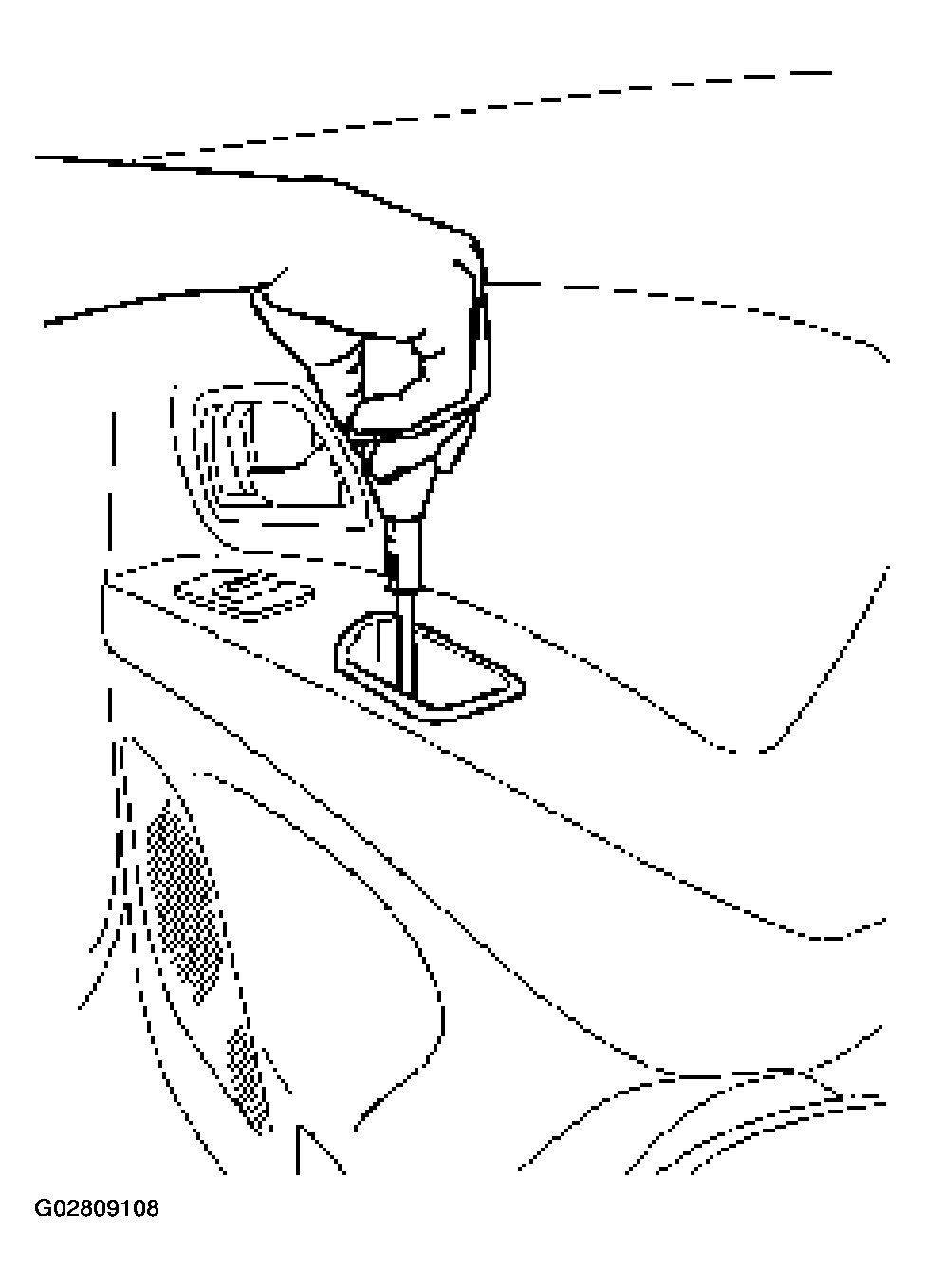

      Fig 1: Removing Screw From Pull Box
      G02809108Courtesy of ISUZU MOTOR CO.
  3. Remove the power window switch (1).
    • Pull the power window switch and remove the connector.

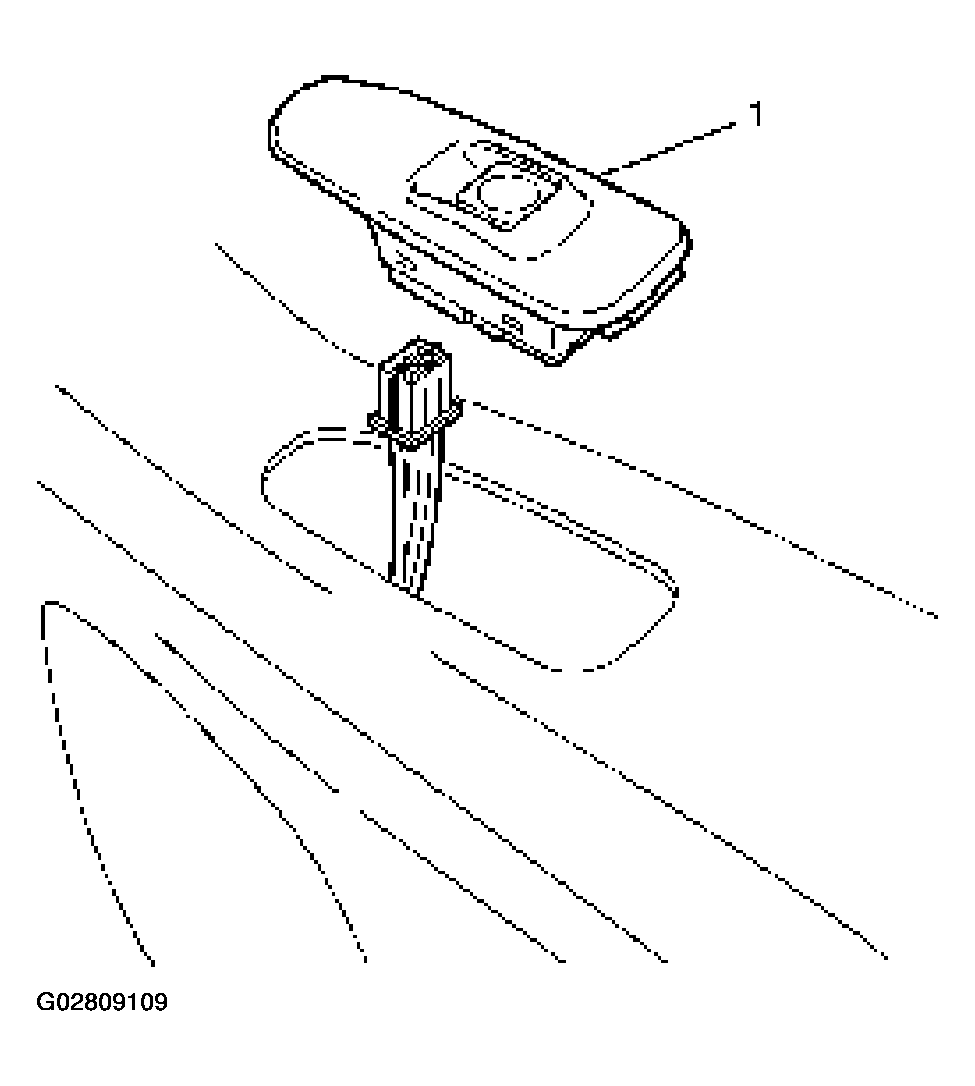

      Fig 2: Removing Power Window Switch
      G02809109Courtesy of ISUZU MOTOR CO.
  4. Remove the inside handle.
    • Open the screw cover and remove the screw.
    • Disconnect the cable.

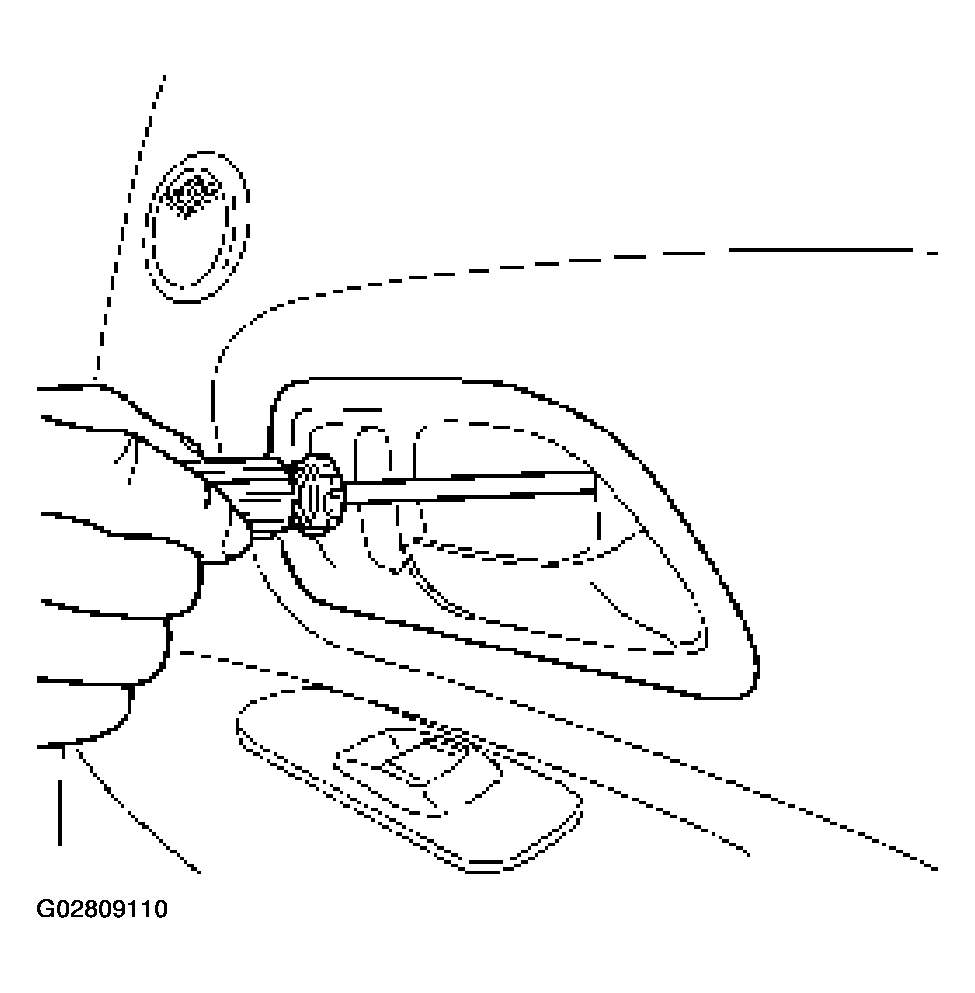

      Fig 3: Removing Screw From Inside Handle
      G02809110Courtesy of ISUZU MOTOR CO.
  5. Pull the trim panel at the 7 clip positions.
    • Disconnect the tweeter and courtesy light connectors.

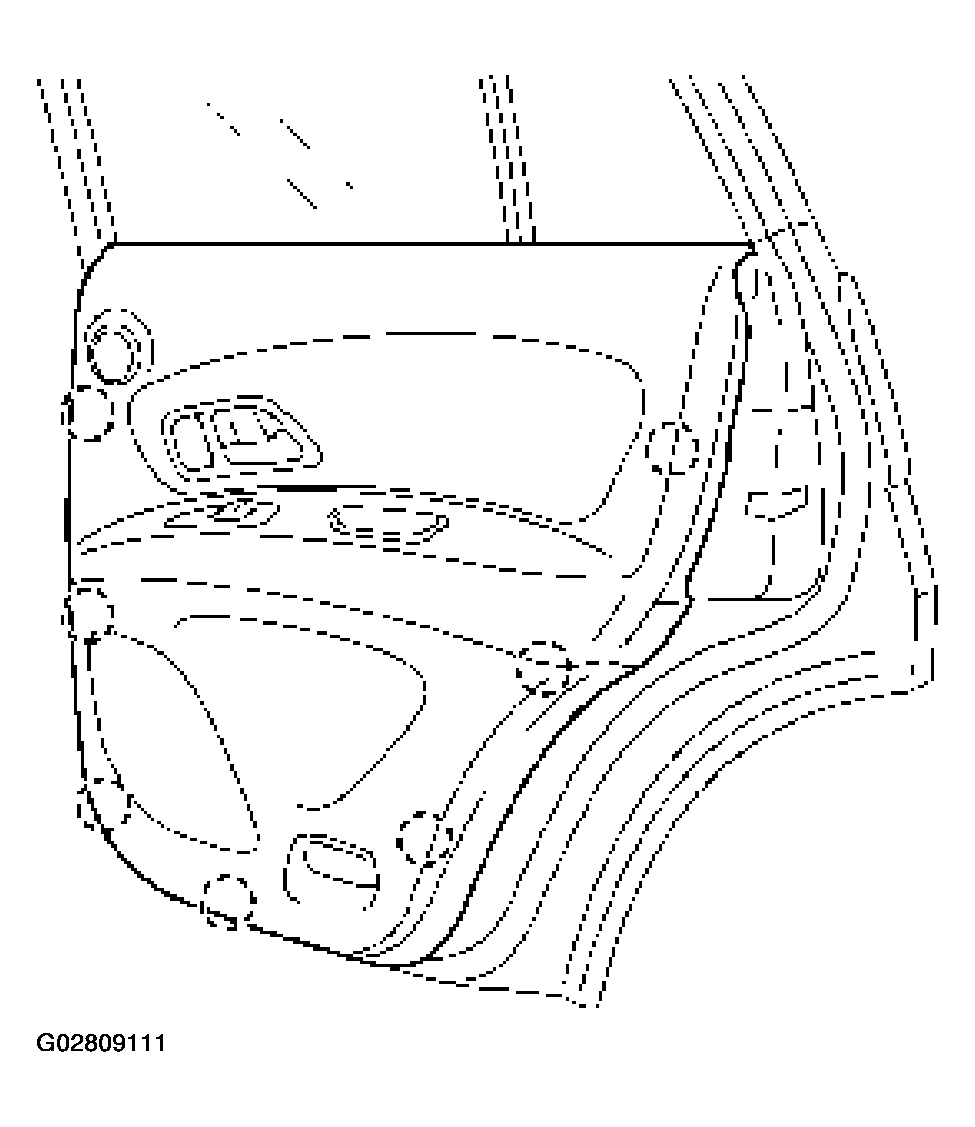

      Fig 4: Pulling Trim Panel At Clip Positions
      G02809111Courtesy of ISUZU MOTOR CO.
  6. Remove the inner waist seal.
  7. Remove the tweeter and the courtesy light.
  8. Remove the pull box bracket.
  9. Remove the speaker and the speaker spacer.
    • Disconnect the speaker harness connector.
  10. Remove the inside lock bracket.
    • Disconnect the cable.
  11. Remove the waterproof sheet (1).
    • Taking notice of the door harness, peel the waterproof sheet off the door panel carefully.

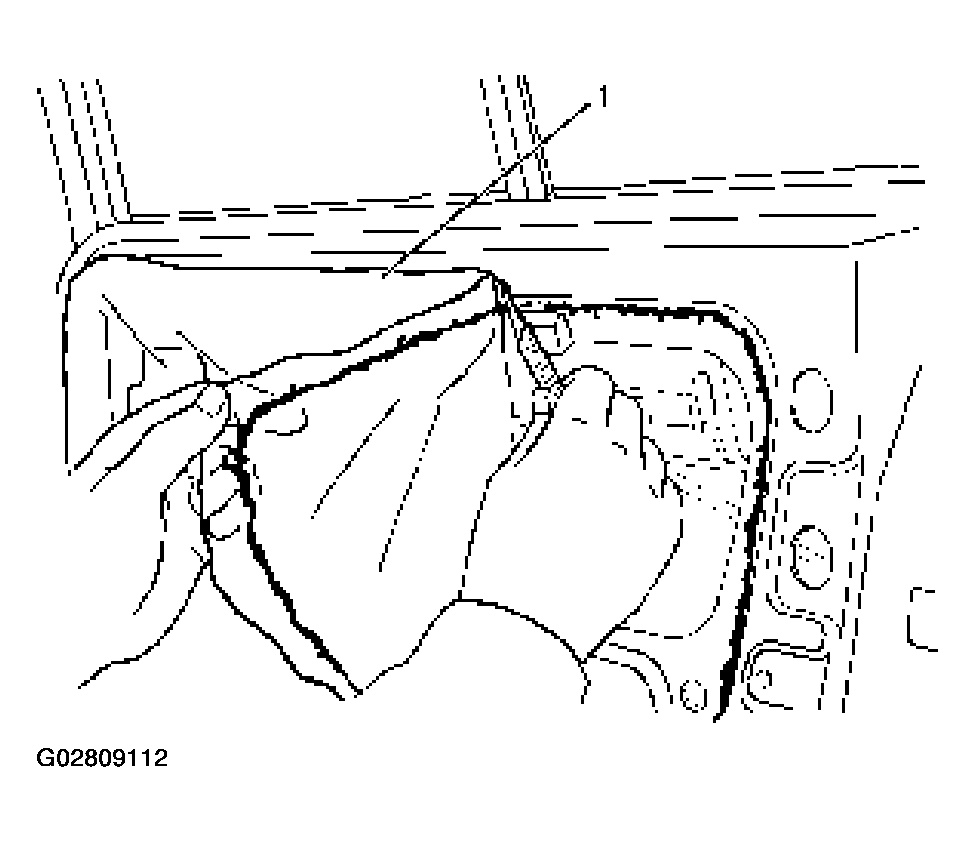

      Fig 5: Removing Waterproof Sheet
      G02809112Courtesy of ISUZU MOTOR CO.
  12. Remove the outer waist seal.
    • Remove the front side screw and pull the waist seal upward.
  13. Remove the window glass
    • Operate the regulator (power window switch) to adjust the glass height and expose the access hole. Remove the 2 bolts fixing the bottom channel and the regulator. Remove the glass.

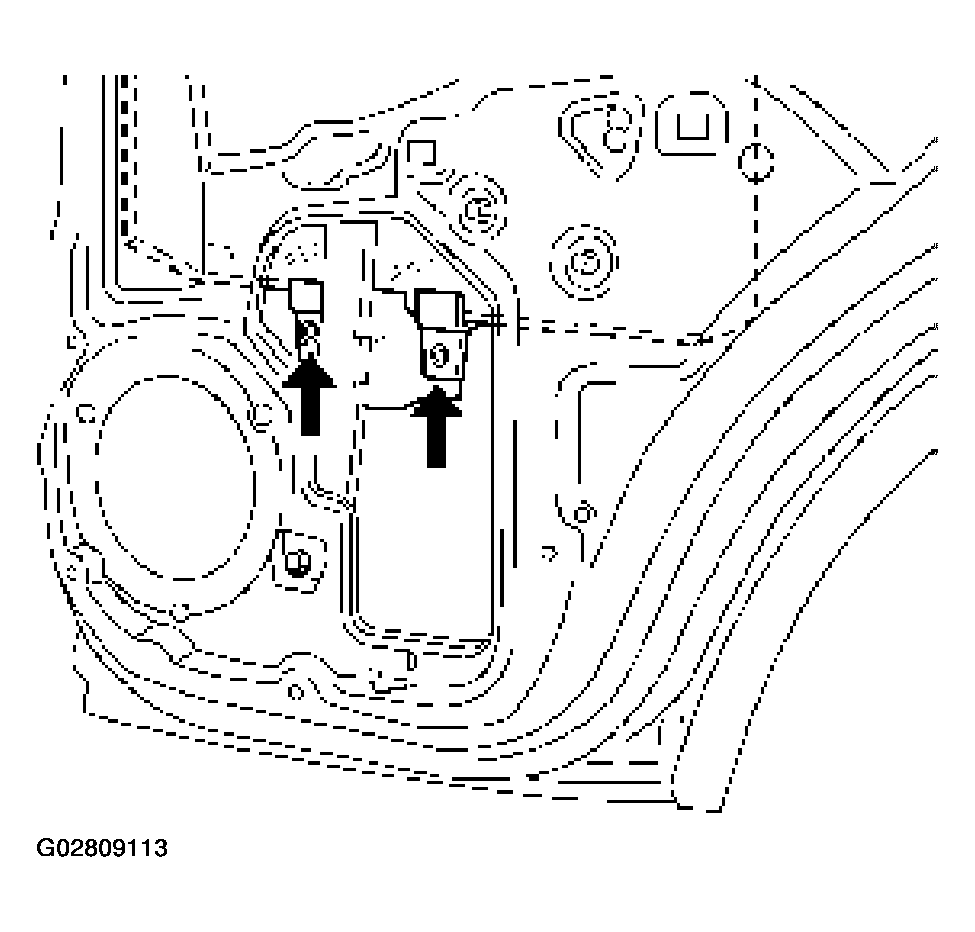

      Fig 6: Removing Window Glass Fixing Bolts From Regulator
      G02809113Courtesy of ISUZU MOTOR CO.

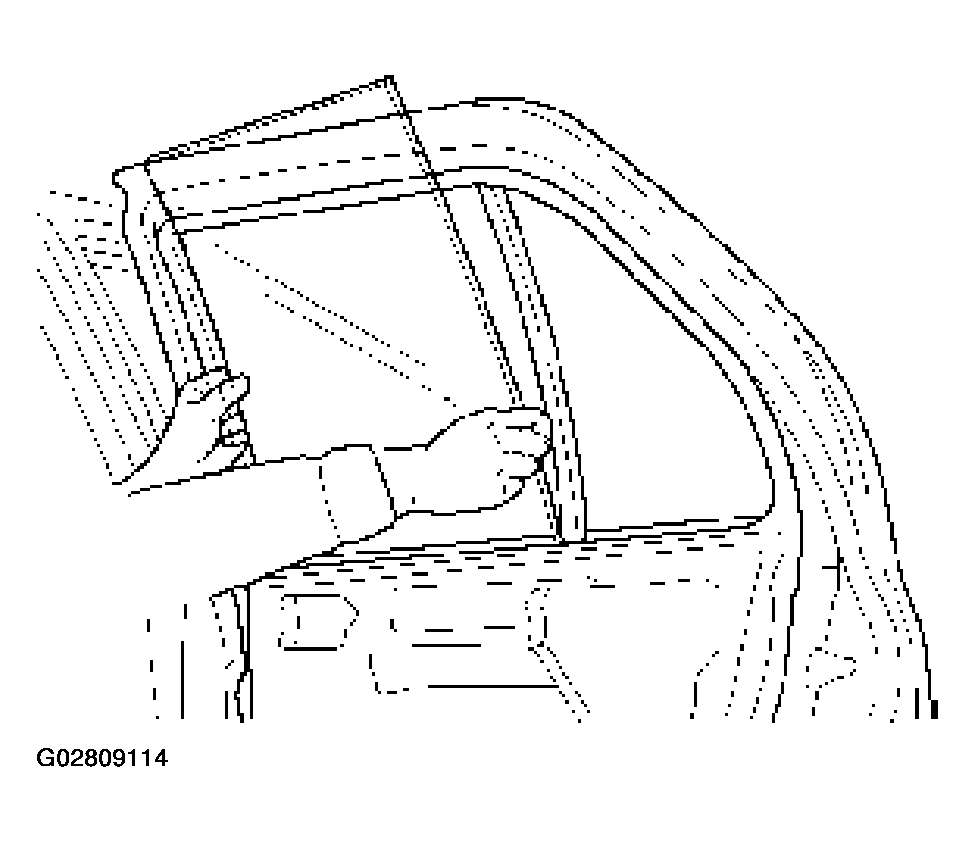

      Fig 7: Removing Window Glass
      G02809114Courtesy of ISUZU MOTOR CO.
  14. Remove the fixed window glass (2) by removing the screw from the top of the division bar (1) and the bolt from the bottom of the division bar.

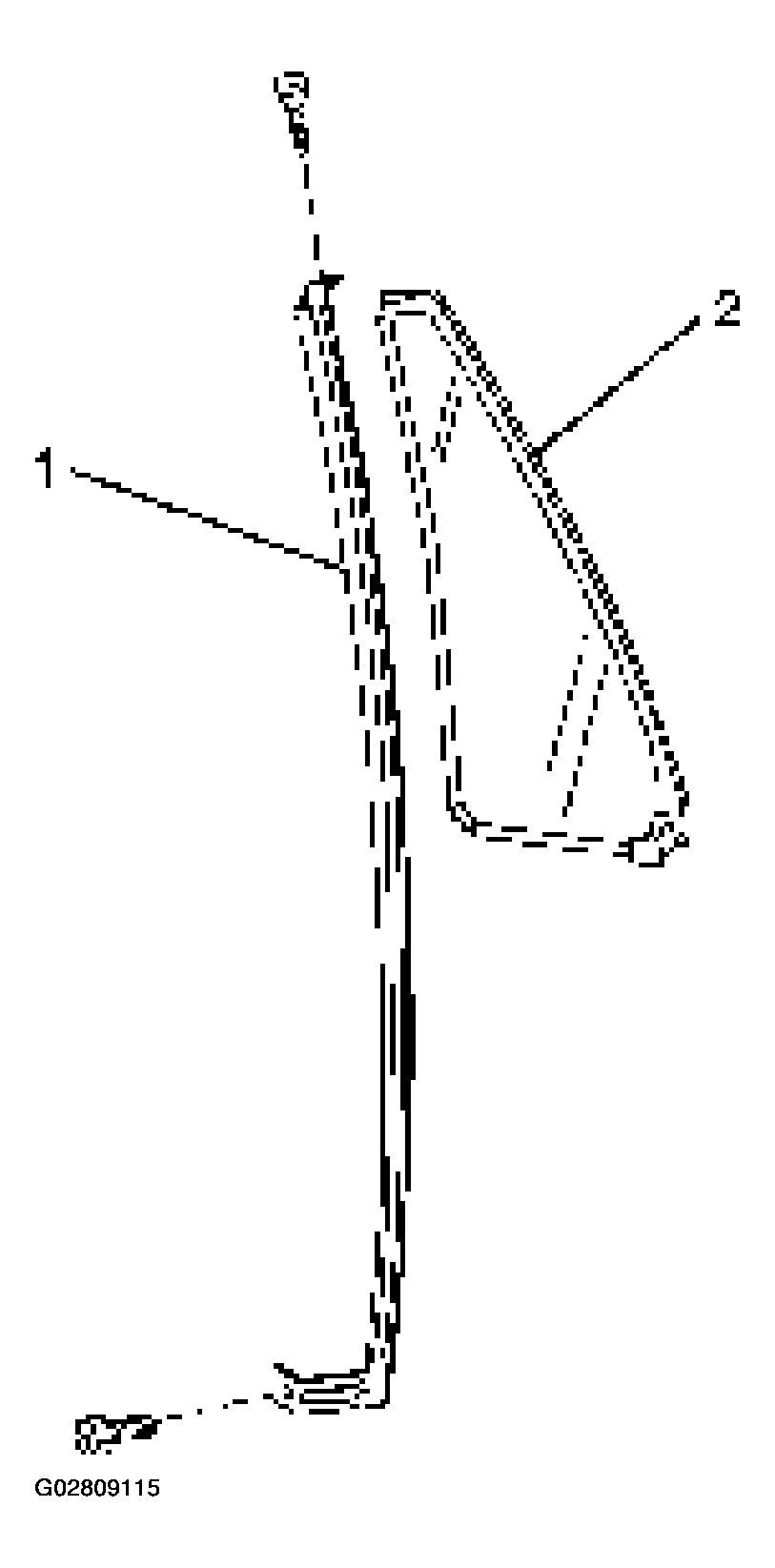

    Fig 8: Removing Screw From Top Of Division Bar
    G02809115Courtesy of ISUZU MOTOR CO.
  15. Remove the window regulator.
    • Remove the 6 fixing bolts and pull the regulator out from the lower hole of the door panel.

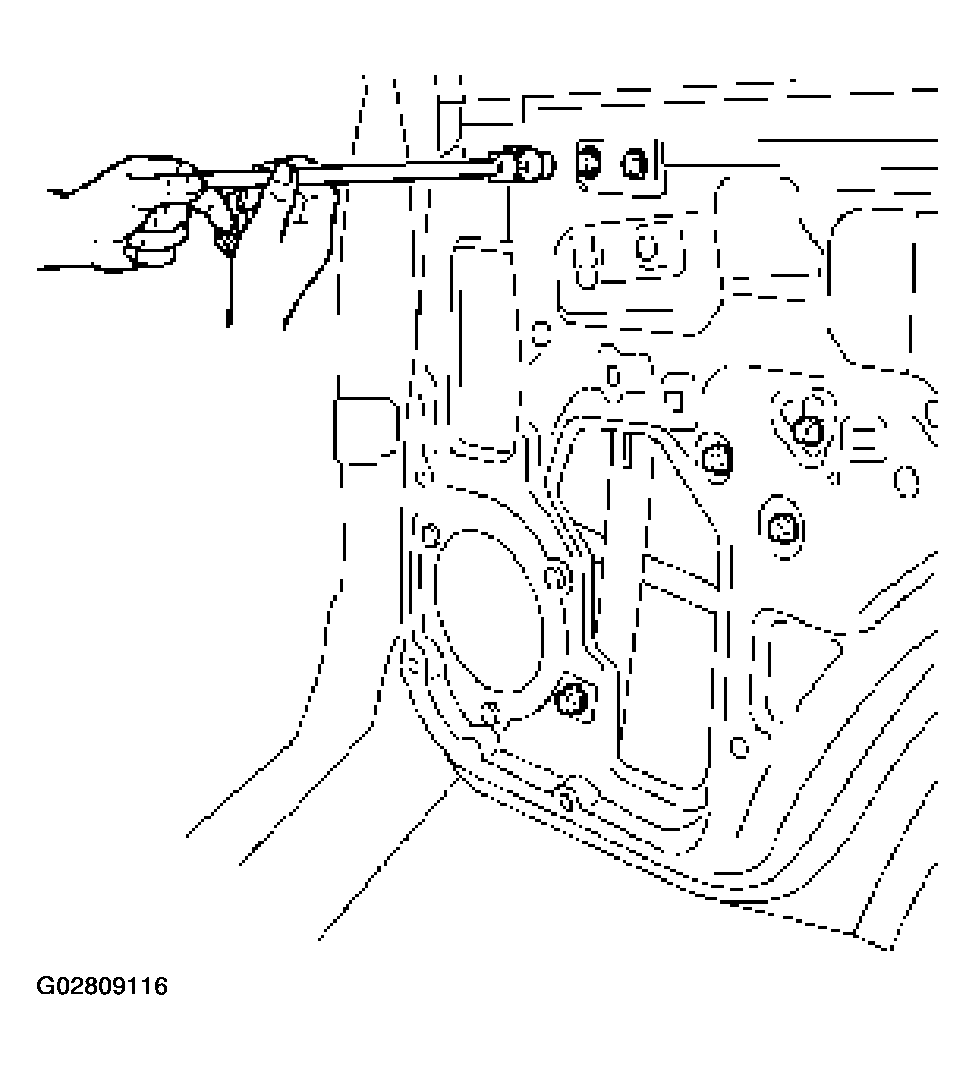

      Fig 9: Removing Window Regulator
      G02809116Courtesy of ISUZU MOTOR CO.
  16. Remove the glass run.
    • Pull the glass run from the door frame.
