Parts Location: Removal

  1. Disconnect the battery ground cable.
  2. Remove the pull box.
    • Remove the one fixing screw.

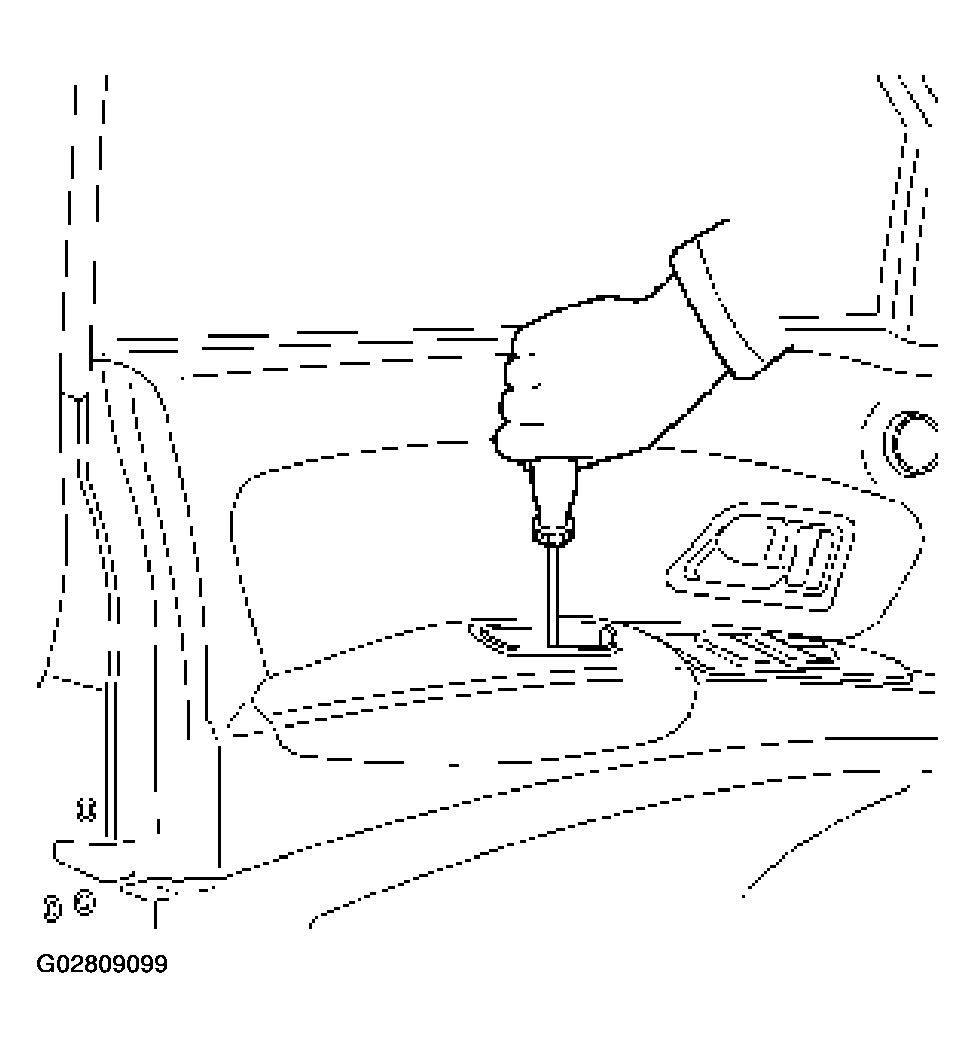

      Fig 1: Removing Fixing Screw Of Pull Box
      G02809099Courtesy of ISUZU MOTOR CO.
  3. Remove the power window switch (1).
    • Pull the power window switch and remove the connector.

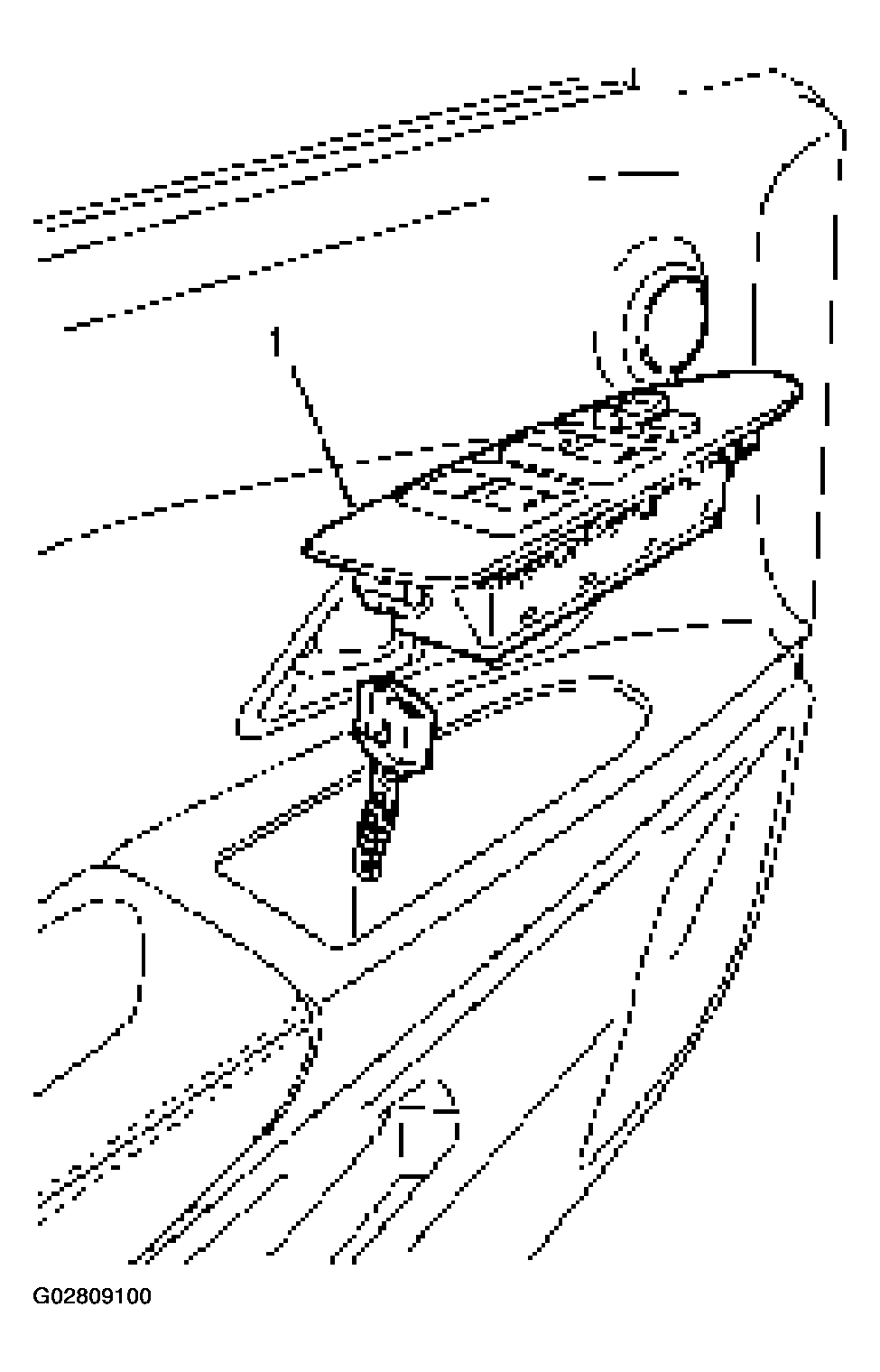

      Fig 2: Removing Power Window Switch
      G02809100Courtesy of ISUZU MOTOR CO.
  4. Remove the inside handle.
    • Open the screw cover (1) and remove the screw.
    • Disconnect the cable.
      Fig 3: Removing Screw From Inside Handle
      G02809101Courtesy of ISUZU MOTOR CO.
  5. Remove the door mirror cover.
  6. Remove the trim panel at the 8 clip positions (1).
    • Disconnect the tweeter and courtesy light connectors.

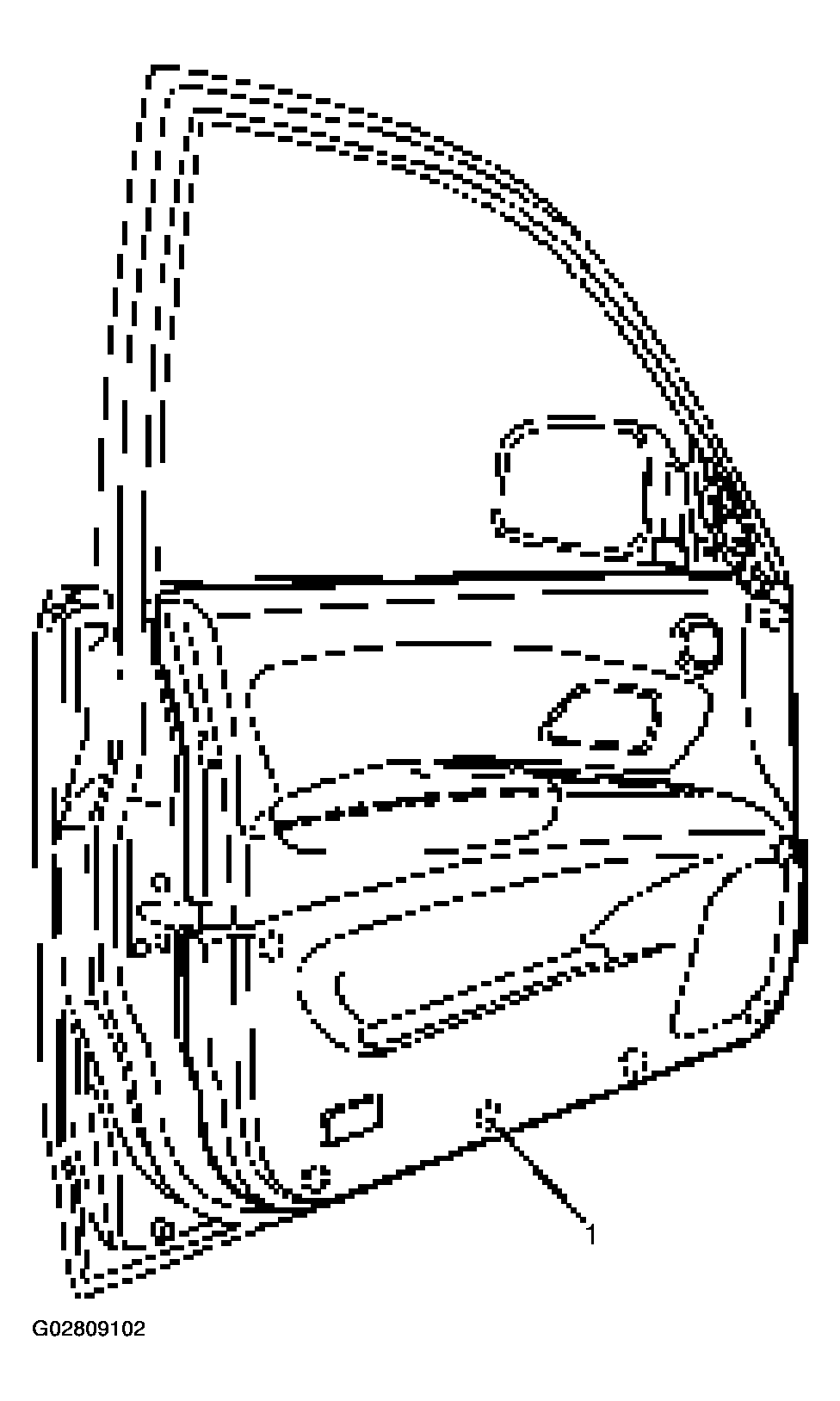

      Fig 4: Removing Trim Panel At Clip Positions
      G02809102Courtesy of ISUZU MOTOR CO.
  7. Remove the inner waist seal.
  8. Remove the tweeter.
  9. Remove the courtesy light.
  10. Remove the pull box bracket.
  11. Remove the inside lock bracket.
    • Disconnect the cable.
  12. Remove the speaker (2) and speaker spacer (1).
    • Disconnect the speaker connector (3).

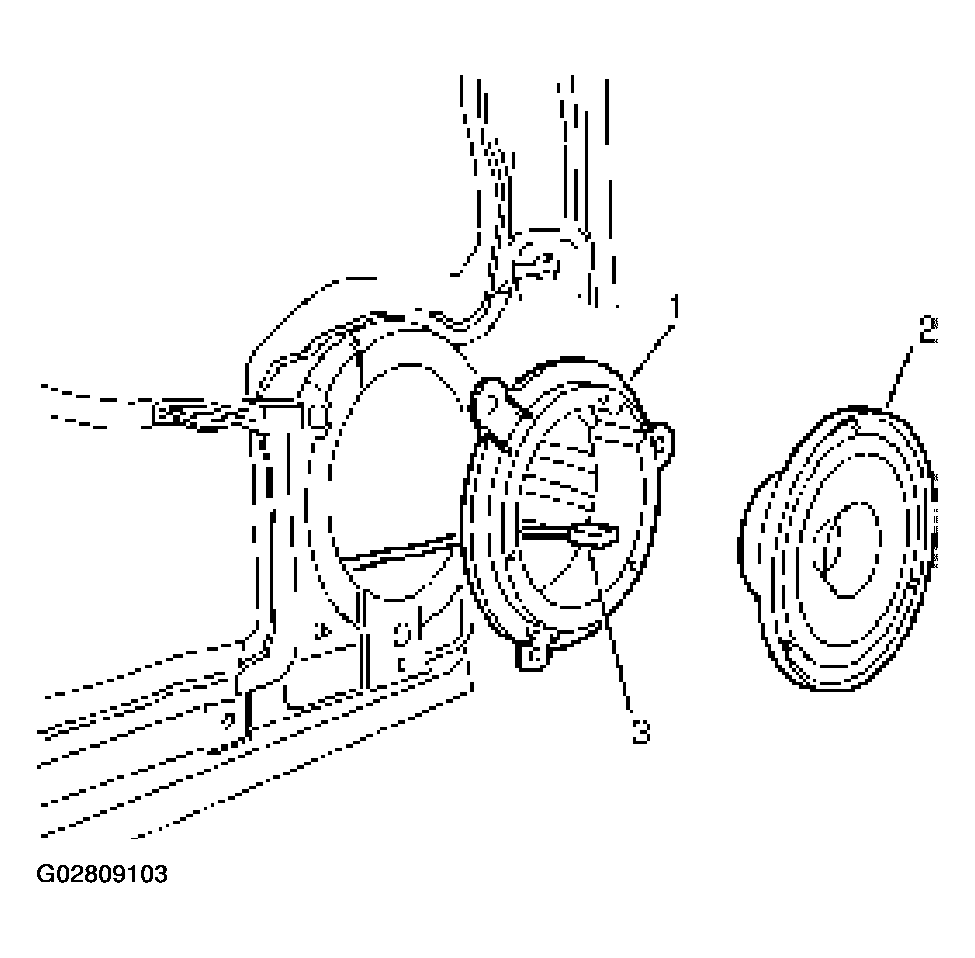

      Fig 5: Removing Speaker & Speaker Spacer
      G02809103Courtesy of ISUZU MOTOR CO.
  13. Remove the waterproof sheet.
  14. Remove the outer waist seal.
    • Remove the rear side screw and pull the outer waist seal upward.
  15. Remove the window glass.
    • Operate the regulator (power window switch) to adjust the glass height and expose the access hole. Remove the 2 bolts fixing the bottom channel and the regulator. Remove the glass.

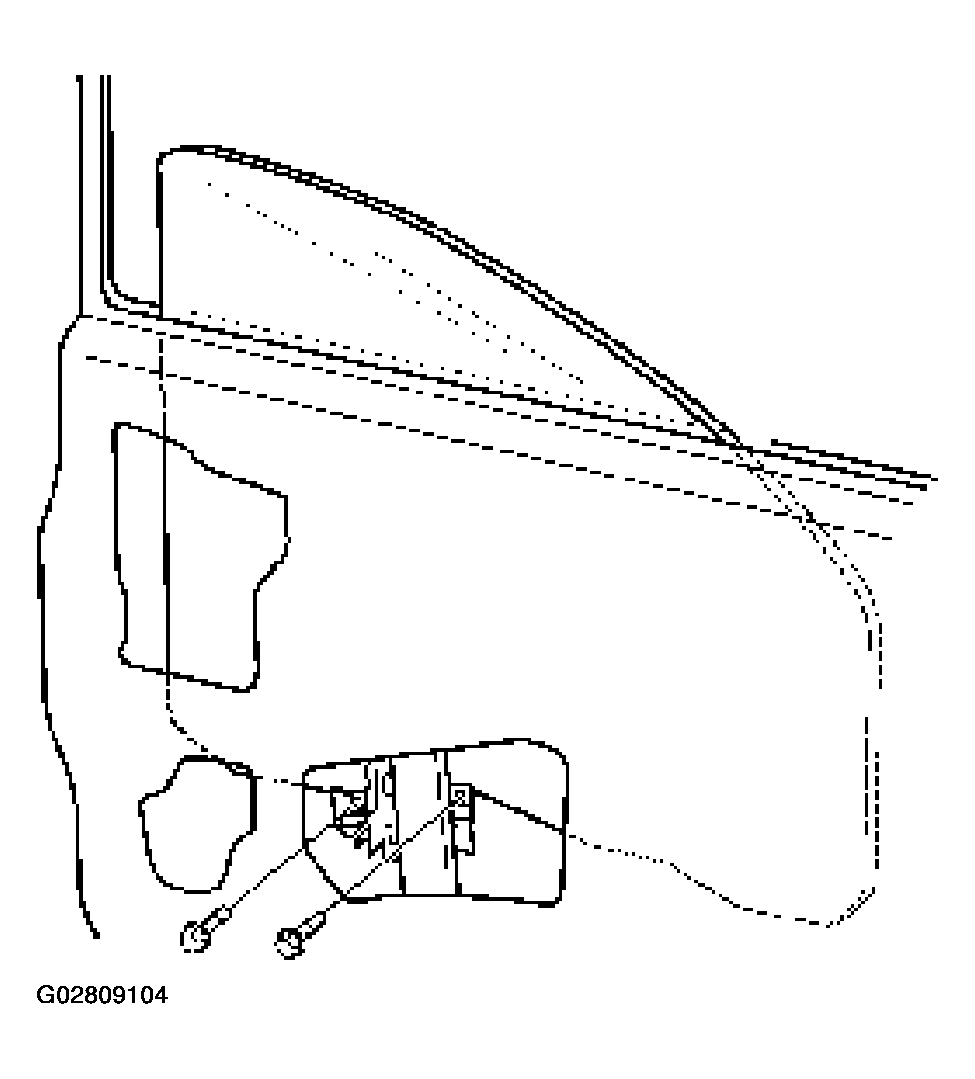

      Fig 6: Removing Bolts Of Window Glass
      G02809104Courtesy of ISUZU MOTOR CO.

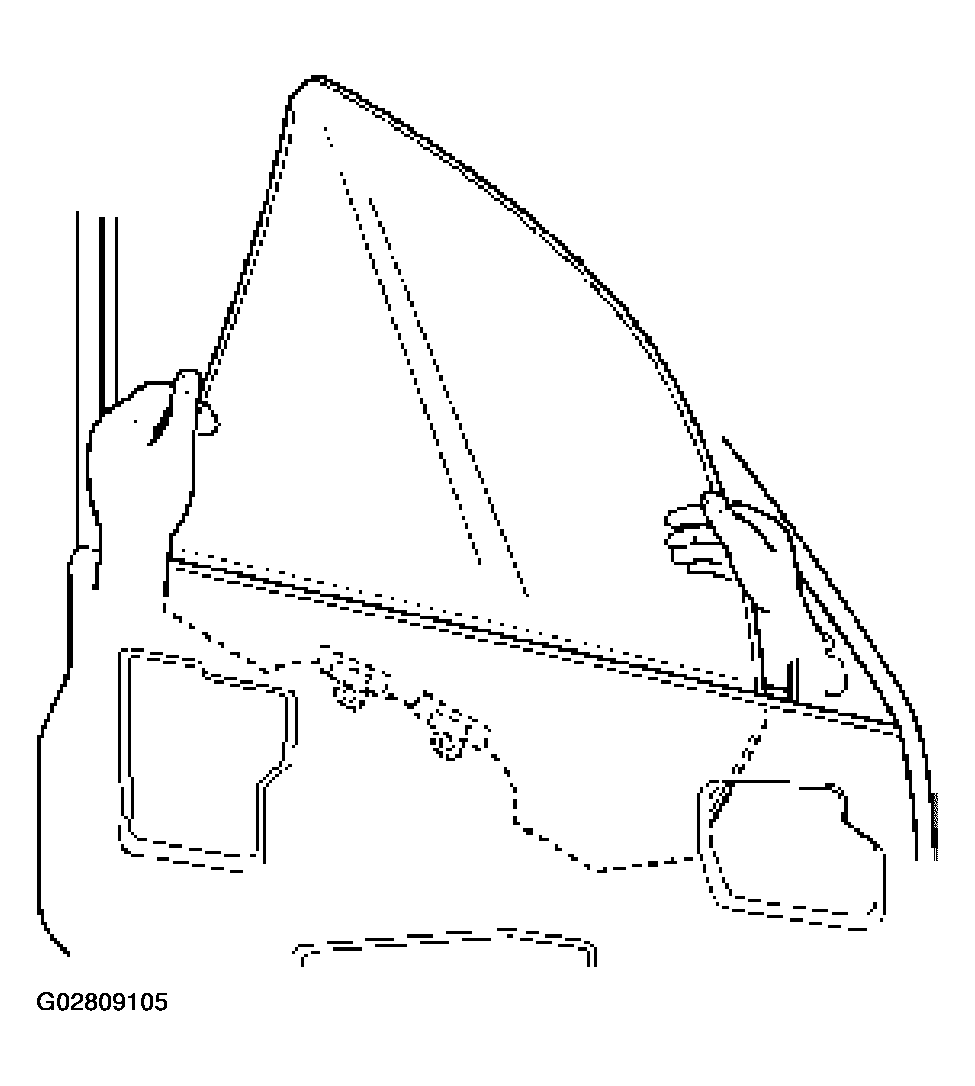

      Fig 7: Removing Door Glass
      G02809105Courtesy of ISUZU MOTOR CO.
  16. Remove the window regulator.
    • Remove the 7 fixing bolts and disconnect the window regulator motor harness connector.
  17. Remove the glass run.
    • Pull the glass run (6) from the door frame.

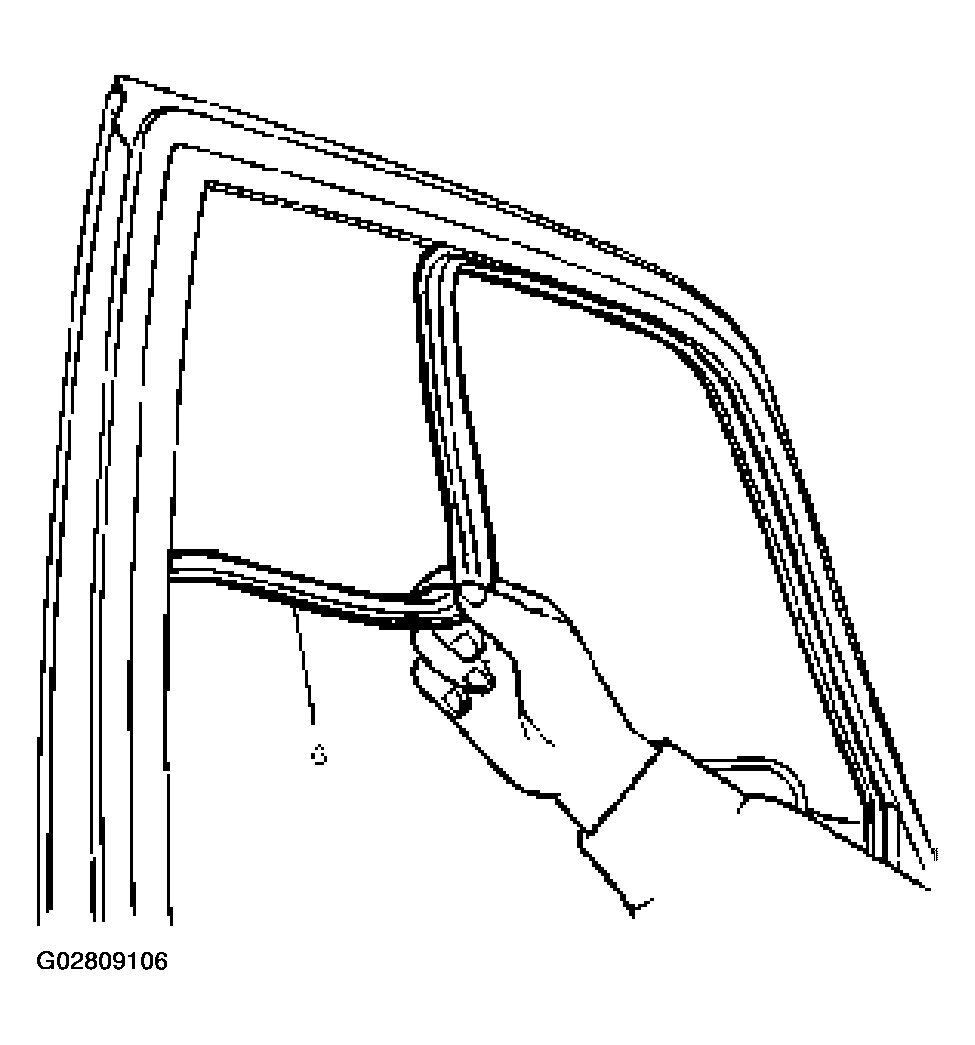

      Fig 8: Pulling Glass Run From Door Frame
      G02809106Courtesy of ISUZU MOTOR CO.
