Side Body Section (Rear Side)

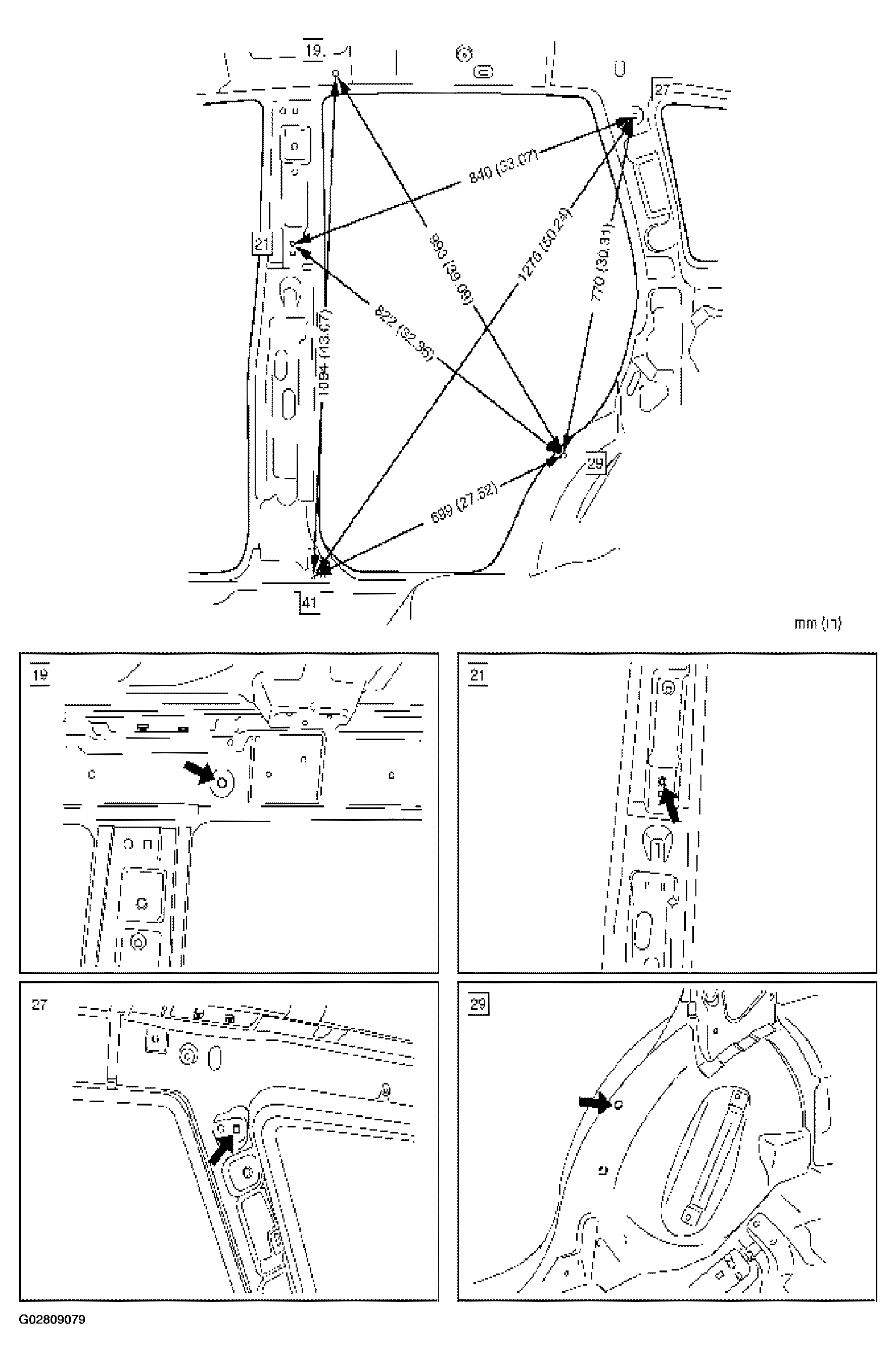

Fig 1: Identifying Body Dimension Of Side Body Section (Rear Side) (1 Of 2)
G02809079Courtesy of ISUZU MOTOR CO.

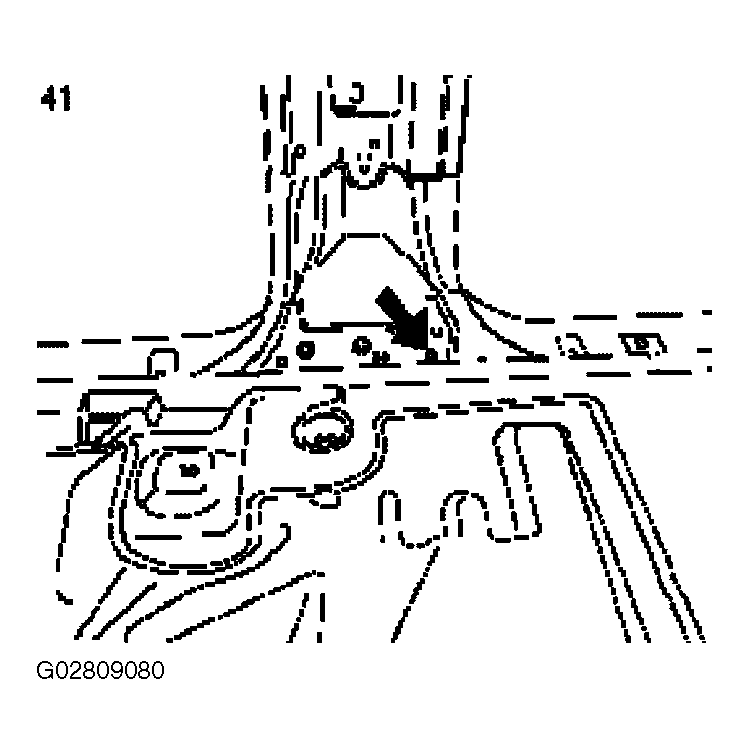

Fig 2: Identifying Body Dimension Of Side Body Section (Rear Side) (2 Of 2)
G02809080Courtesy of ISUZU MOTOR CO.
