Room Section (Front Side)

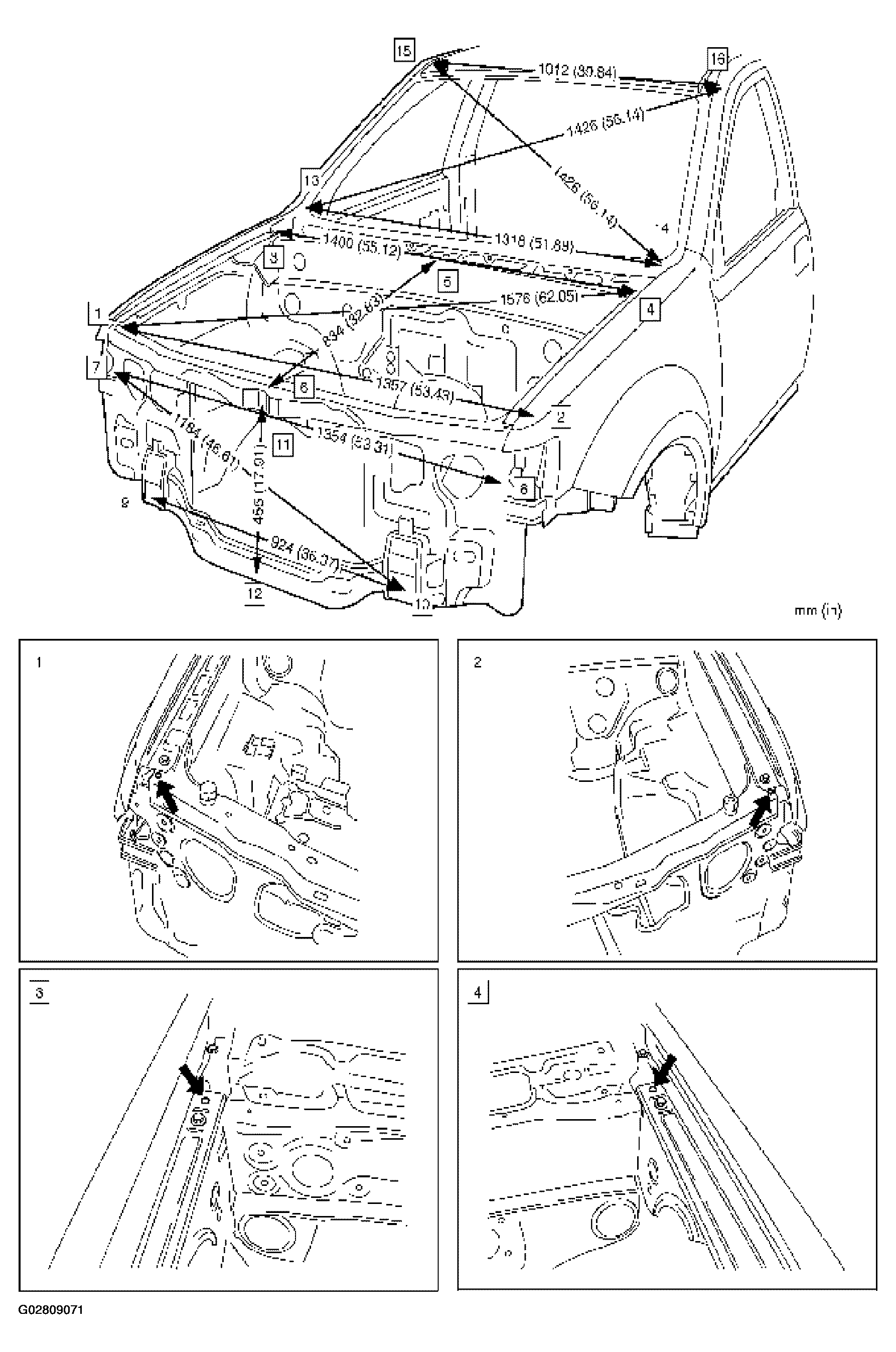

Fig 1: Identifying Body Dimension Of Room Section (Front Side) (1 Of 2)
G02809071Courtesy of ISUZU MOTOR CO.

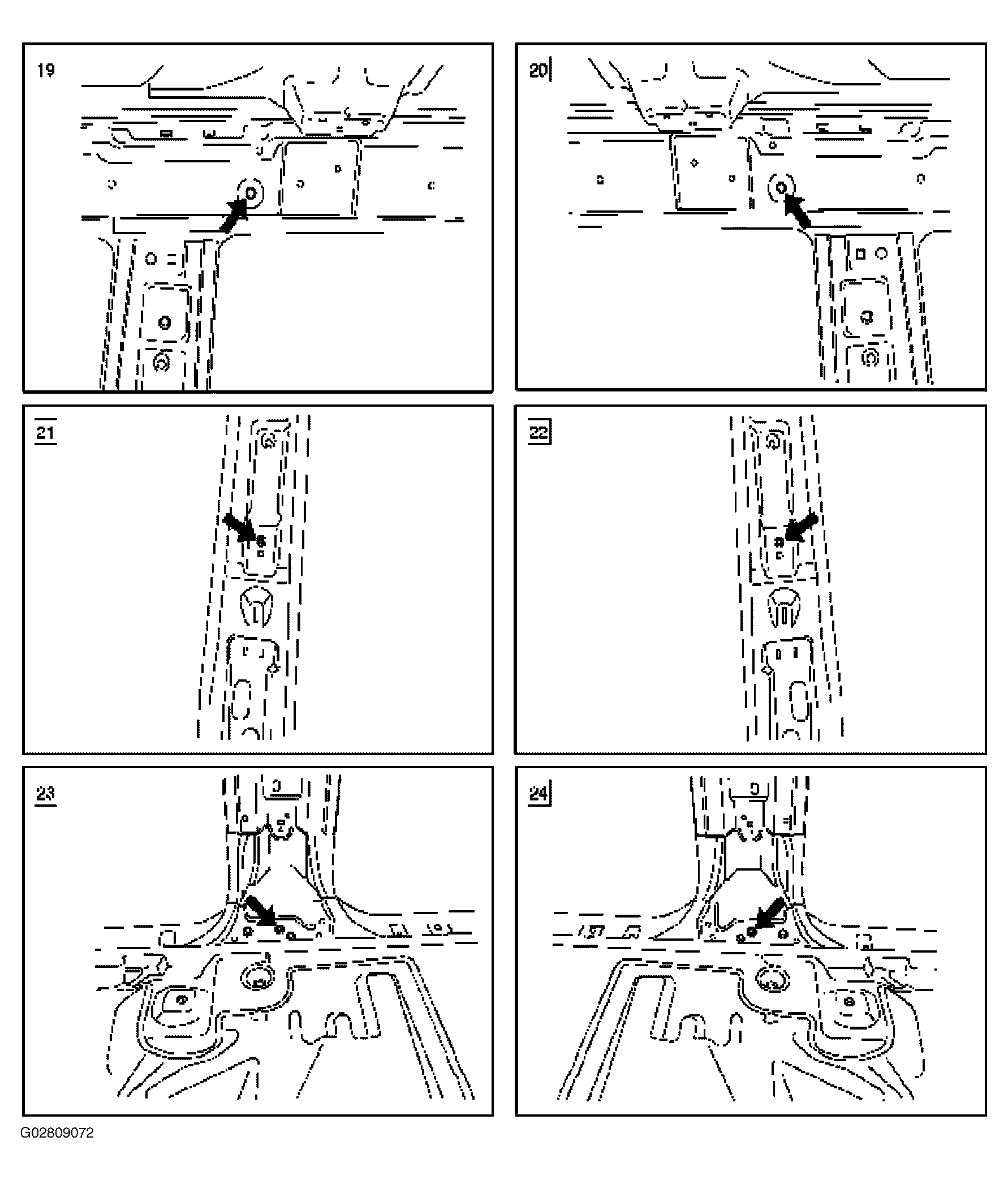

Fig 2: Identifying Body Dimension Of Room Section (Front Side) (2 Of 2)
G02809072Courtesy of ISUZU MOTOR CO.
