Shift Indicator - A/T: Service and Repair

SHIFT LEVER ILLUMINATION LIGHT BULB (A/T)

REMOVAL




1. Disconnect the battery ground cable.

2. Remove the console assembly.
- Remove four screws.

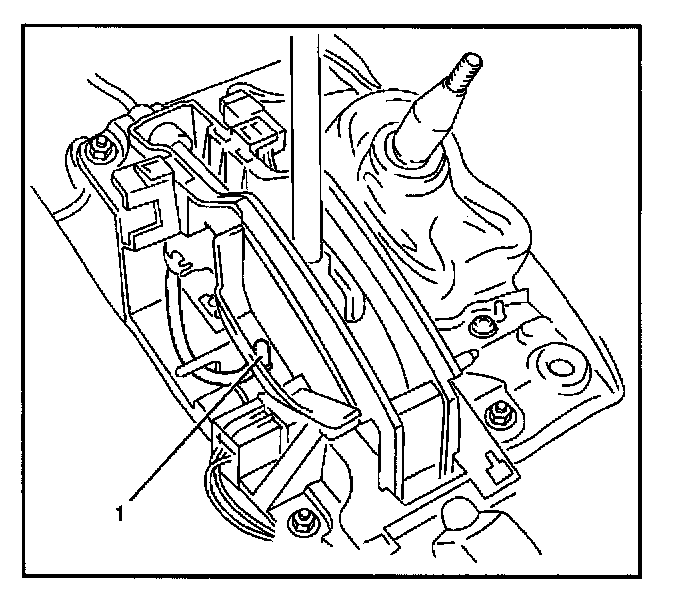

3. Remove the bulb (1).
- Turn the bulb socket counterclockwise.
- Pull out the bulb from the socket.

INSTALLATION
To install, follow the removal steps in the reverse order.
