Electrical Diagrams

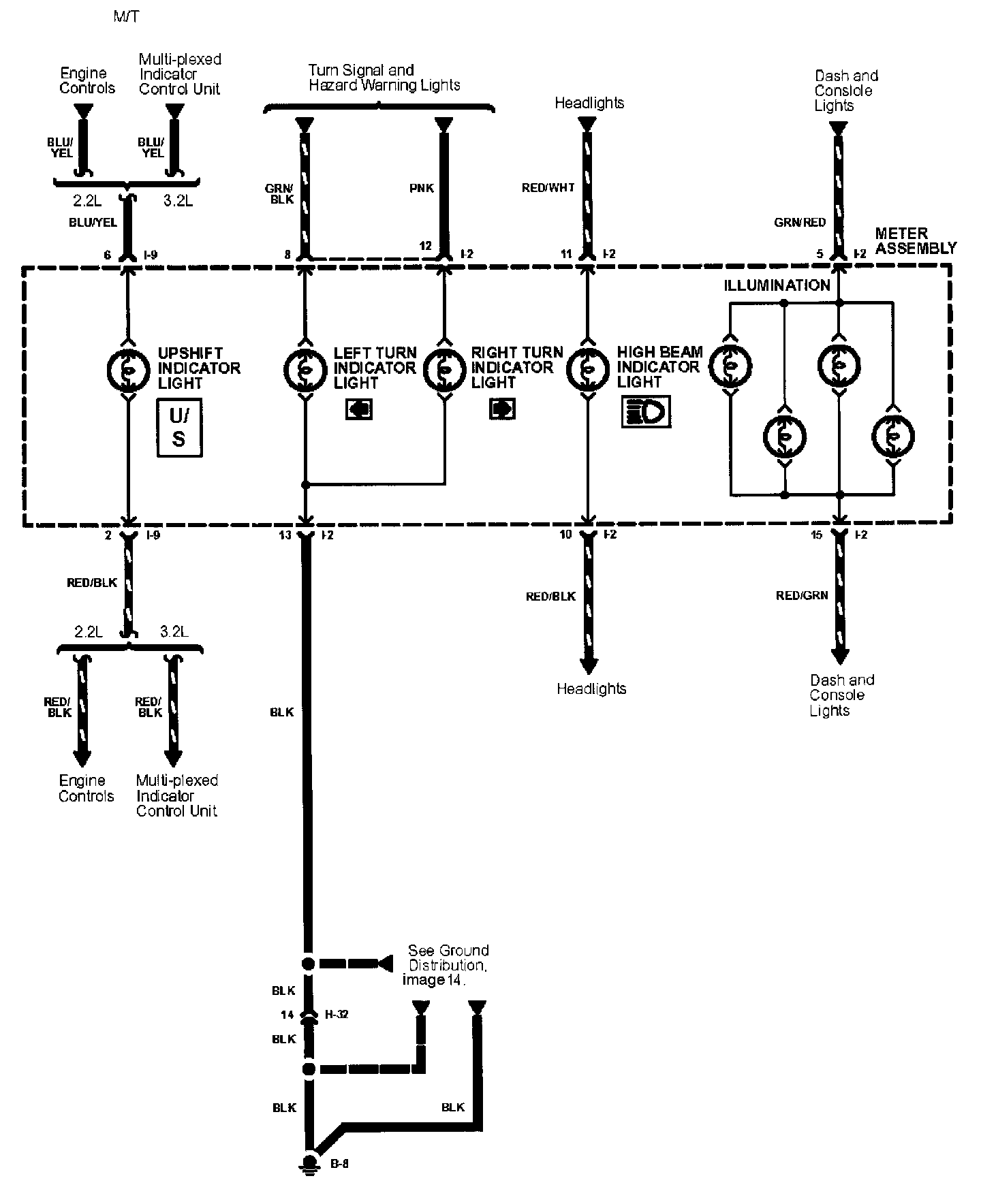

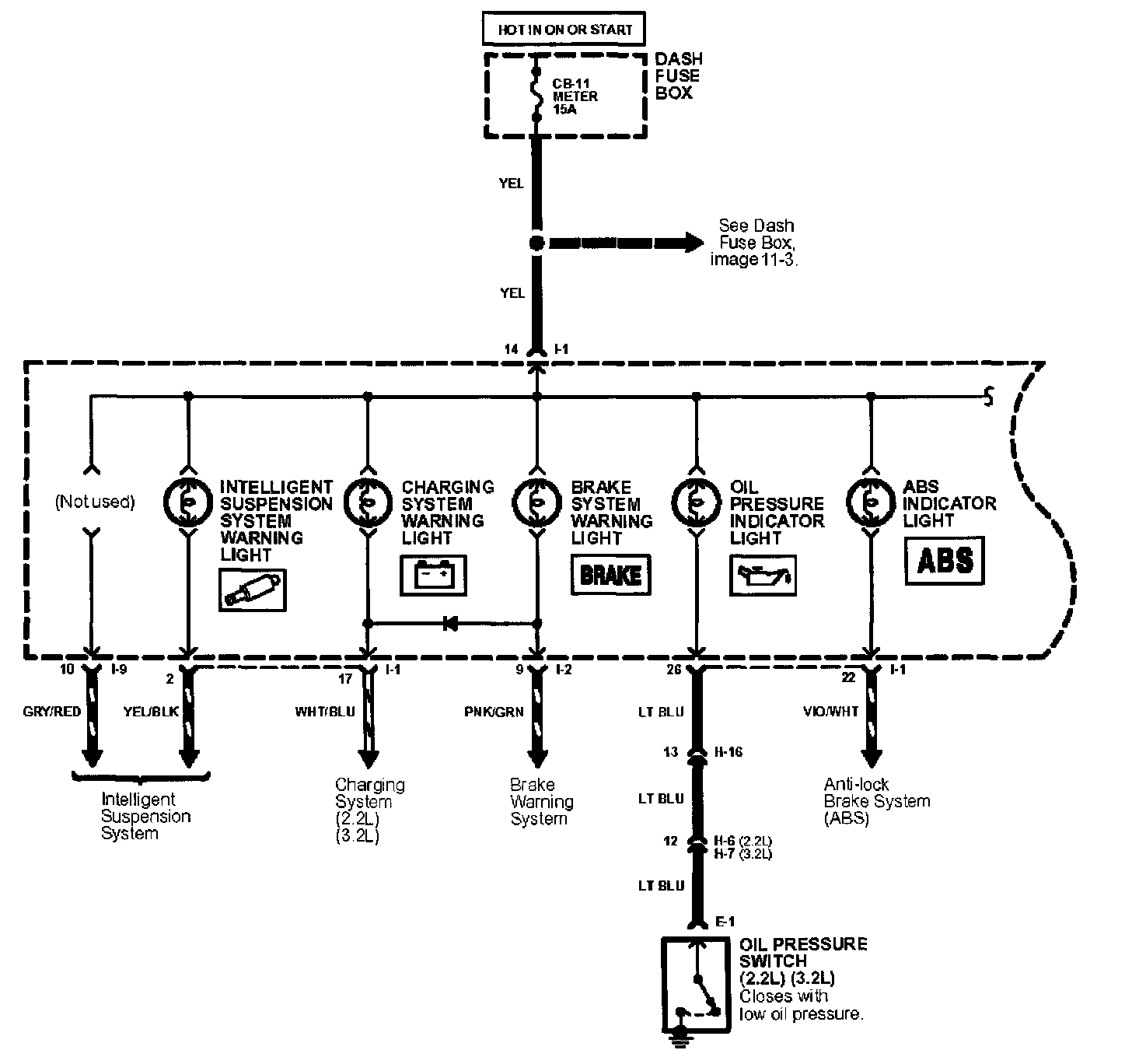

Indicators Image 80:

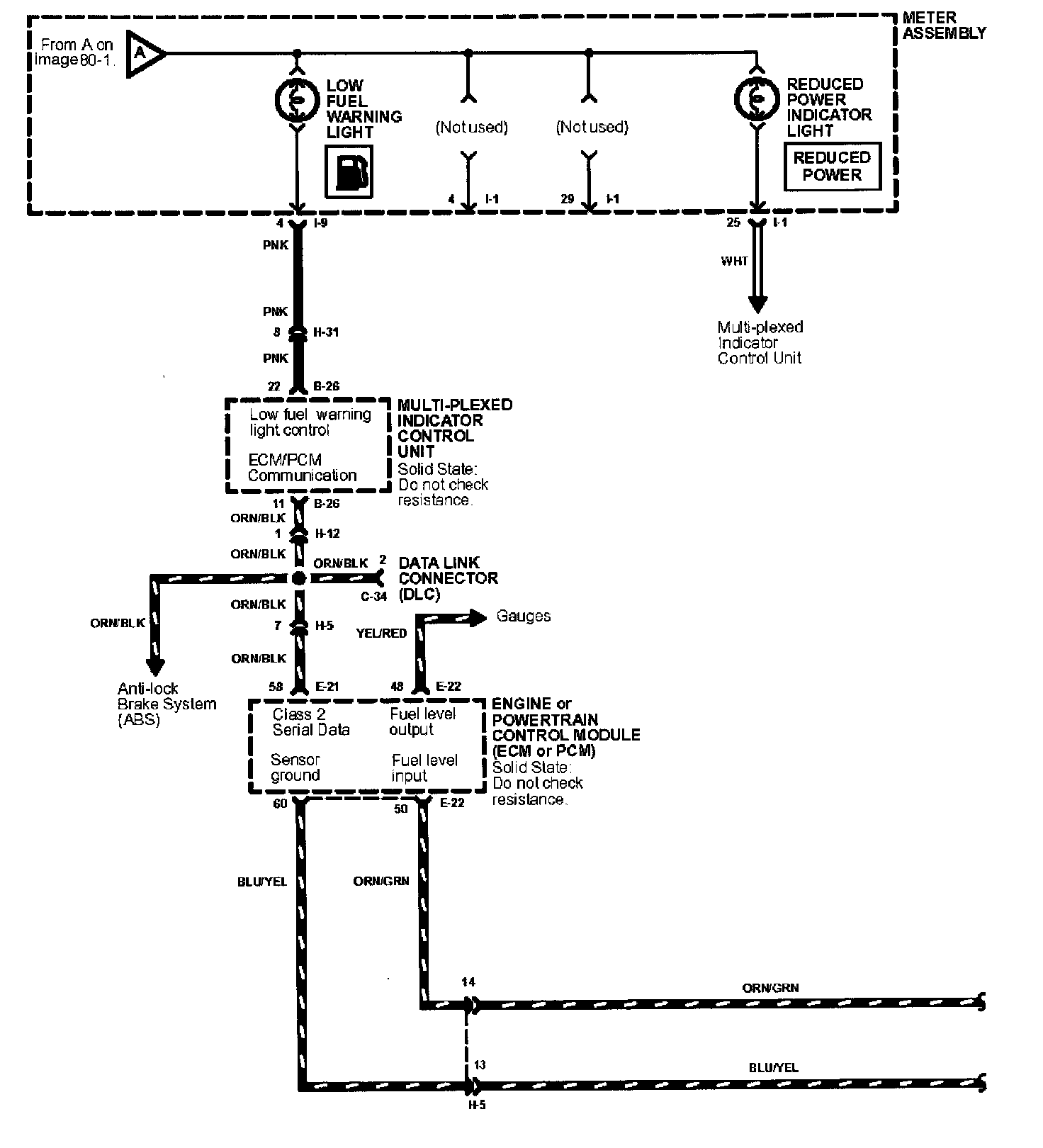

Indicators Image 80-1:

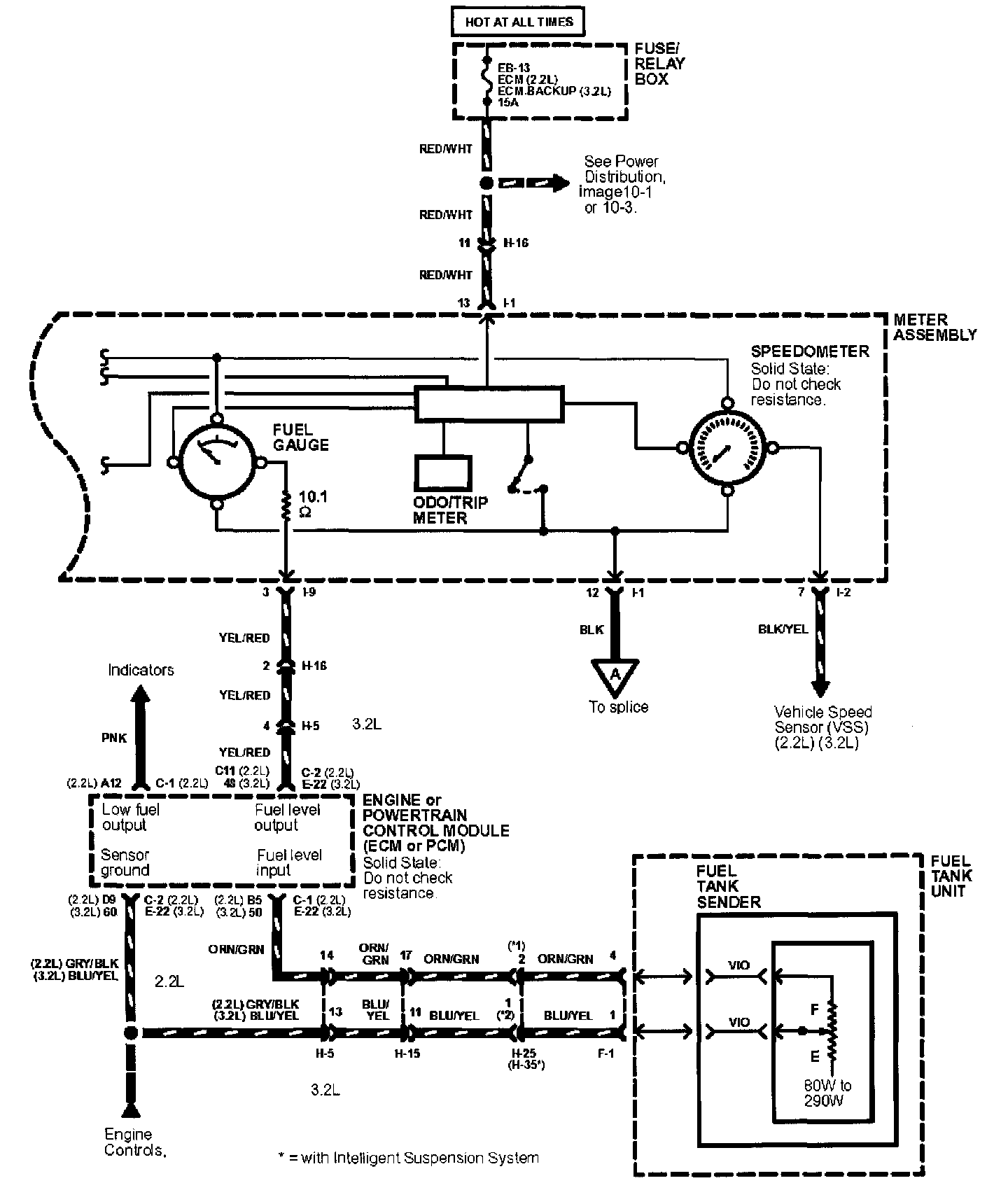

Indicators Image 80-4:

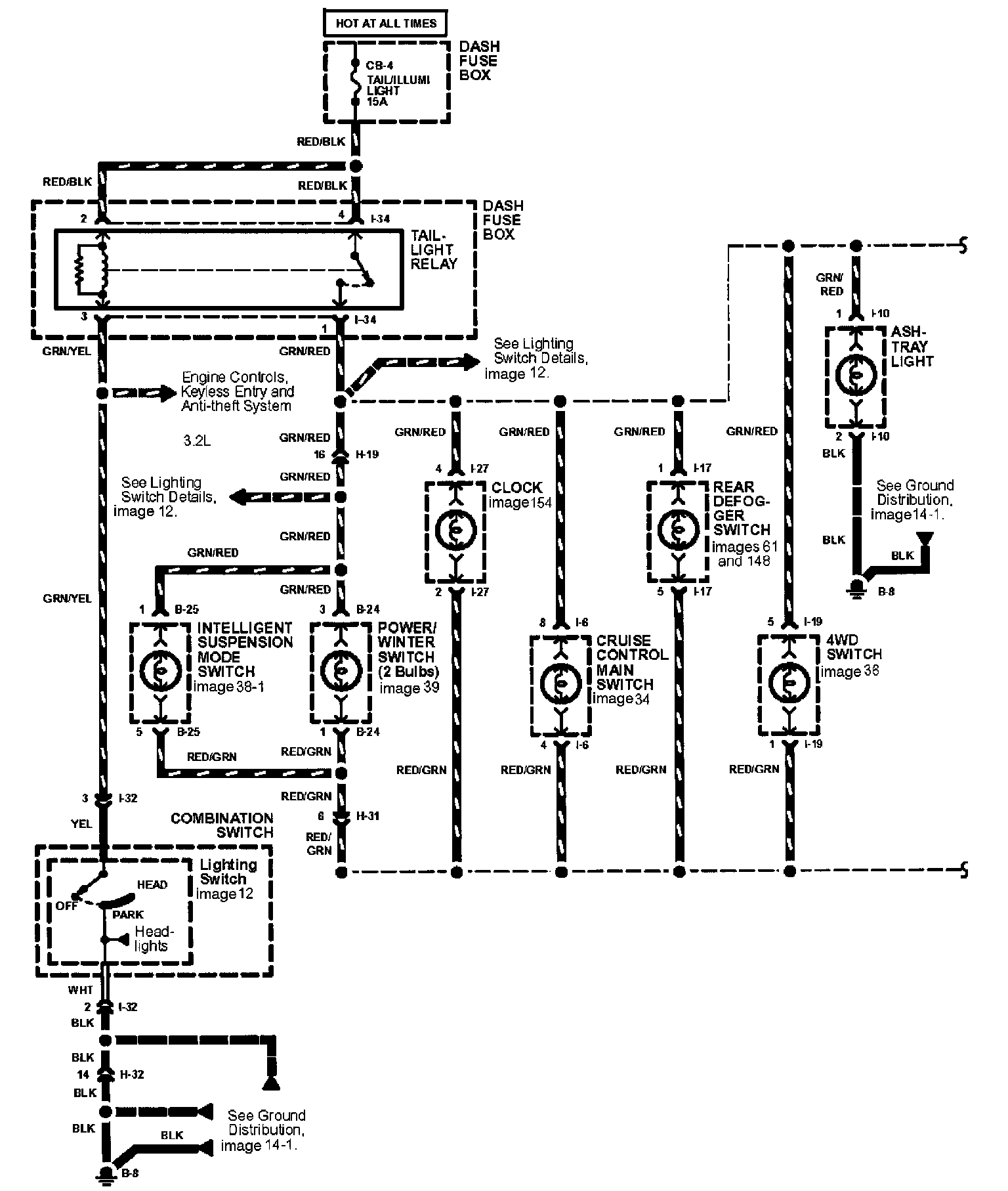

Indicators Image 80-5:

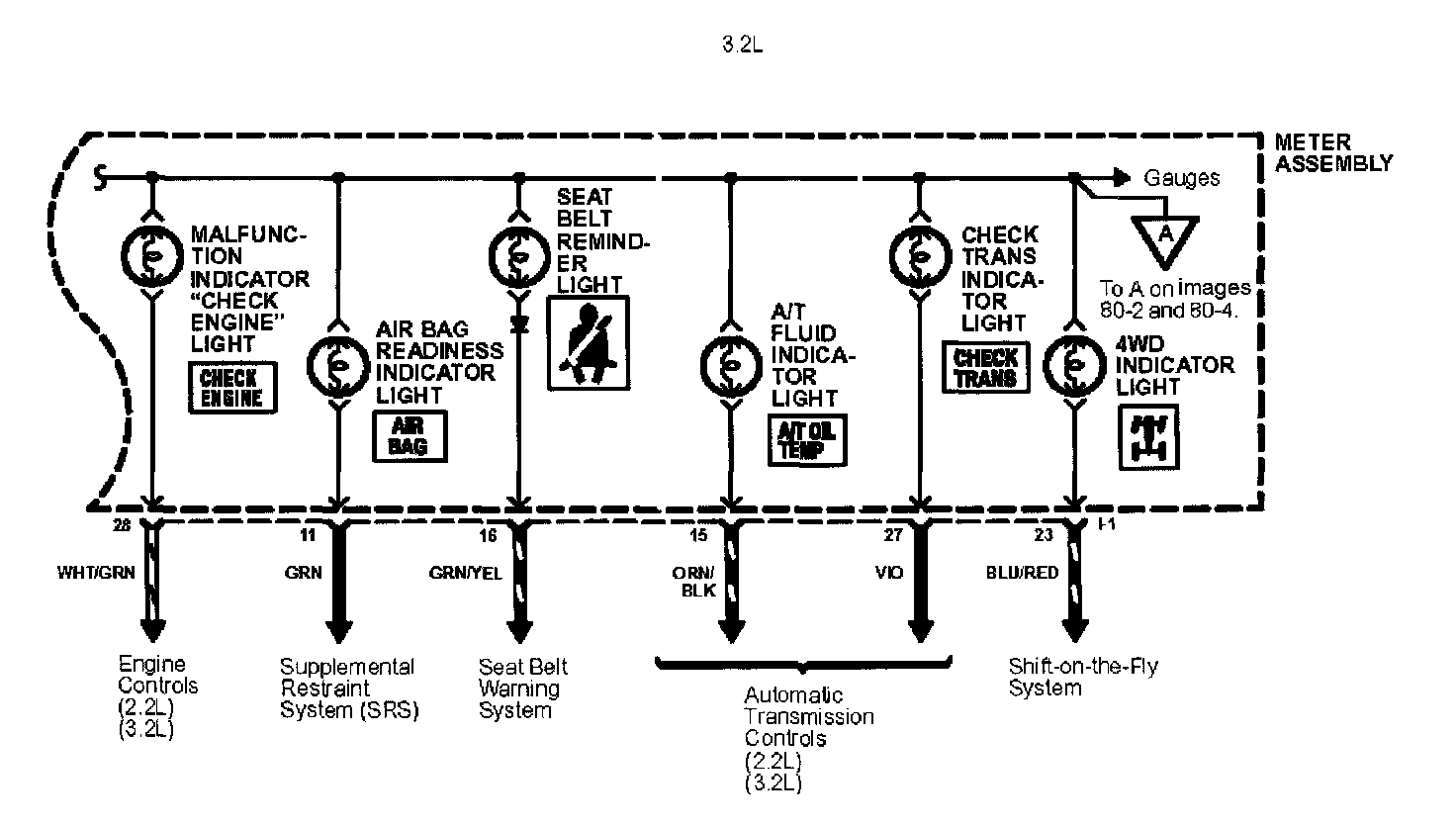

Indicators Image 80-6:

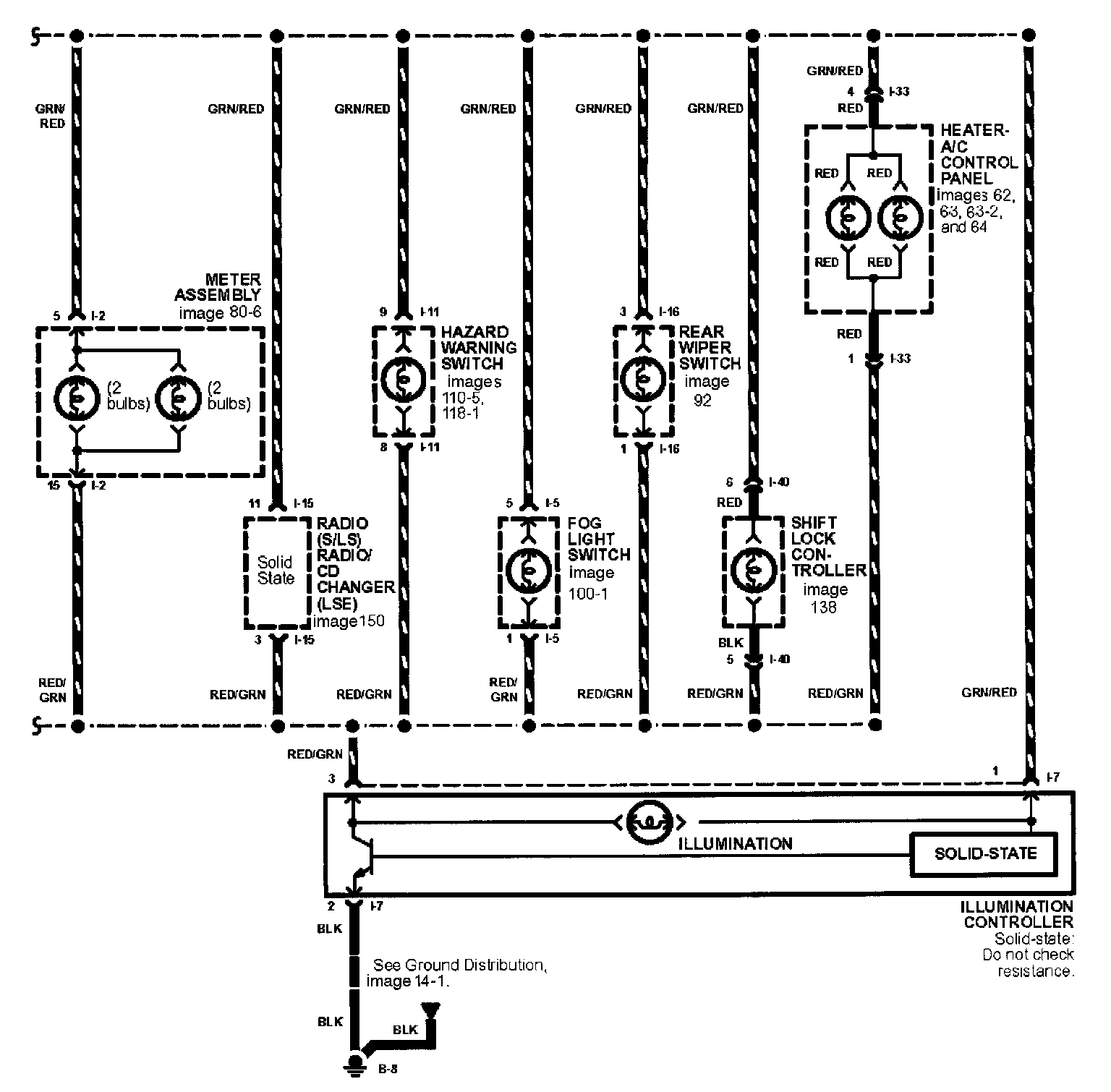

Gauges Image 81:

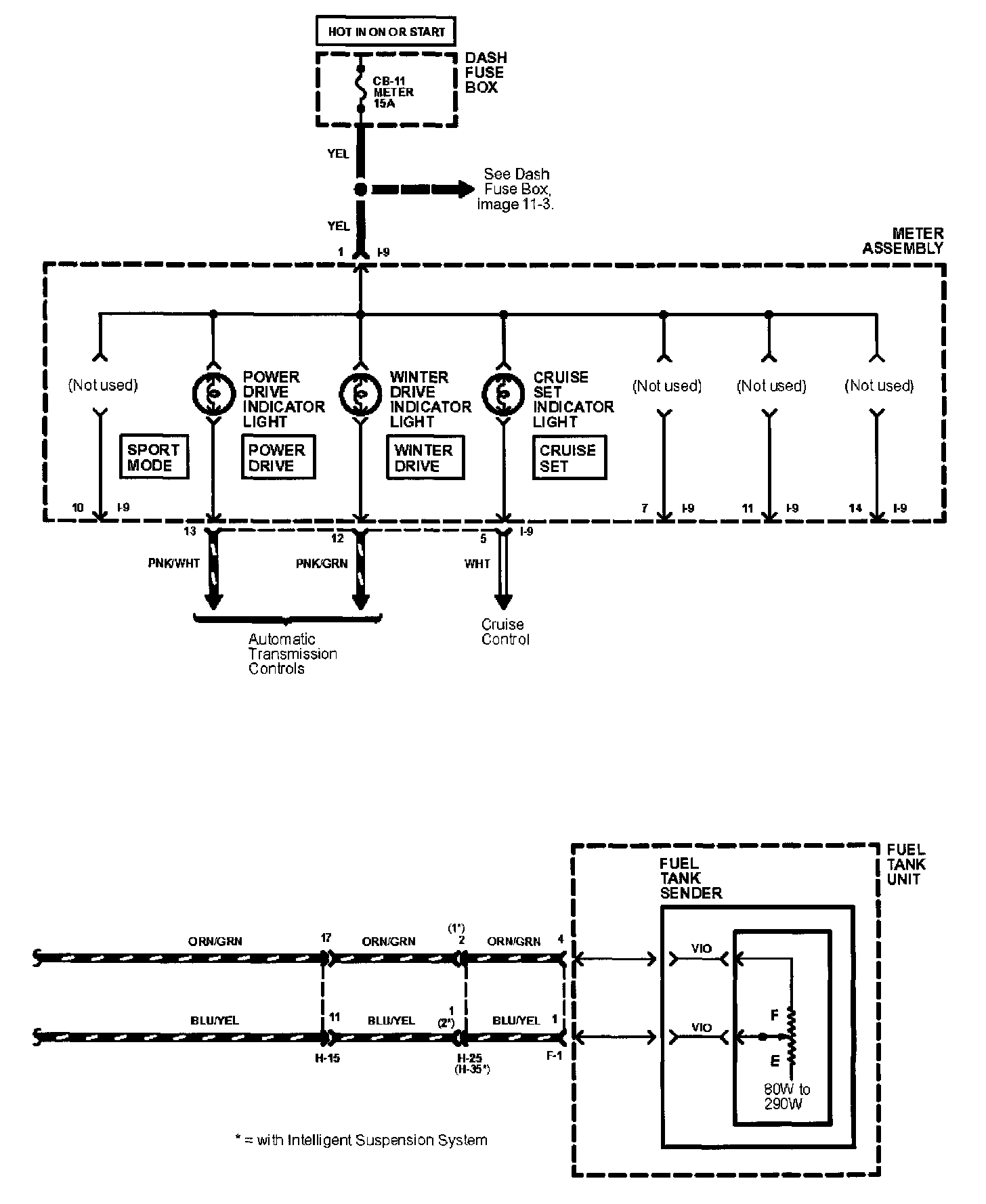

Gauges Images 81-1:

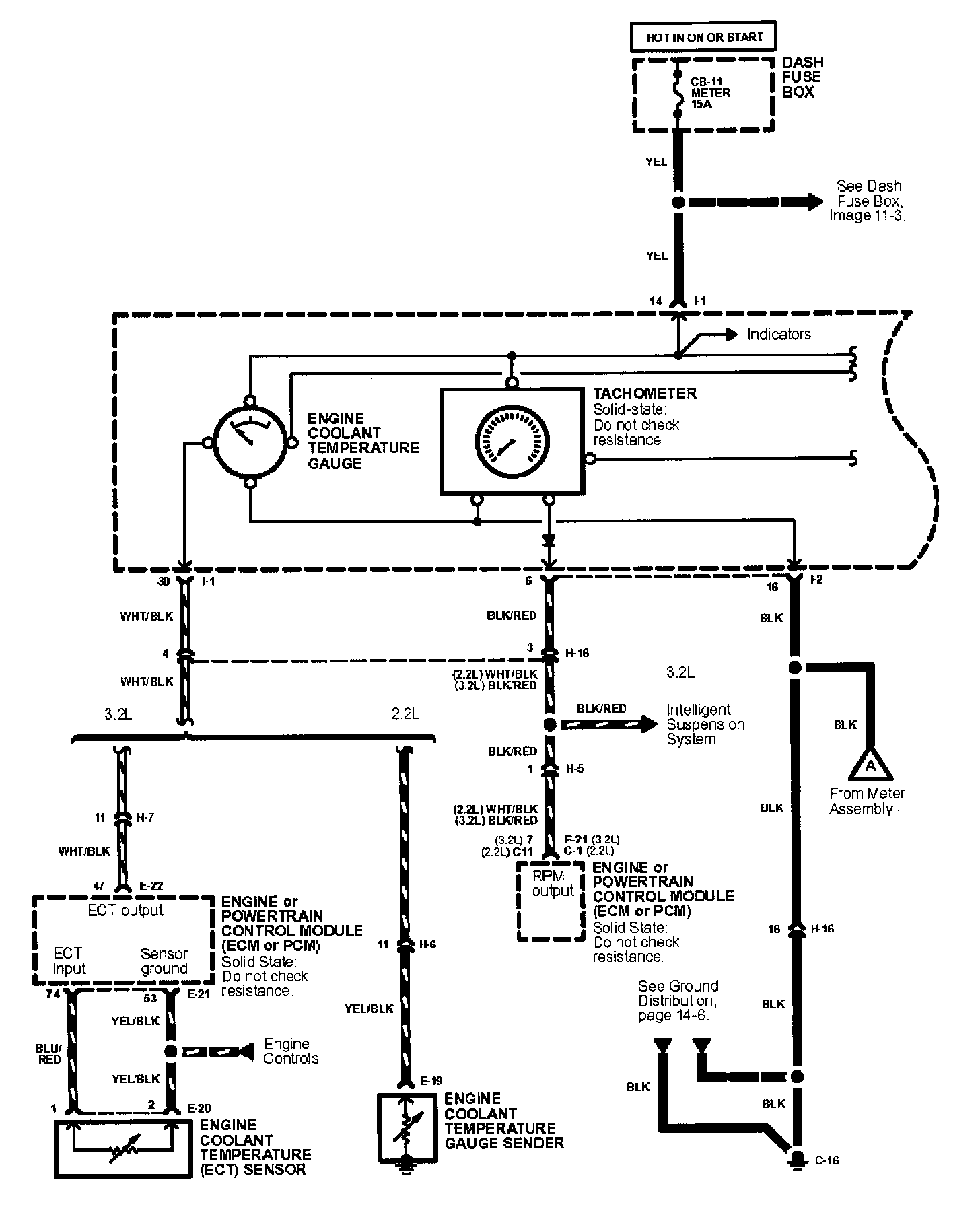

Dash and Console Lights Image 117:



Dash and Console Lights Image 117-1:
