Wiring Diagrams

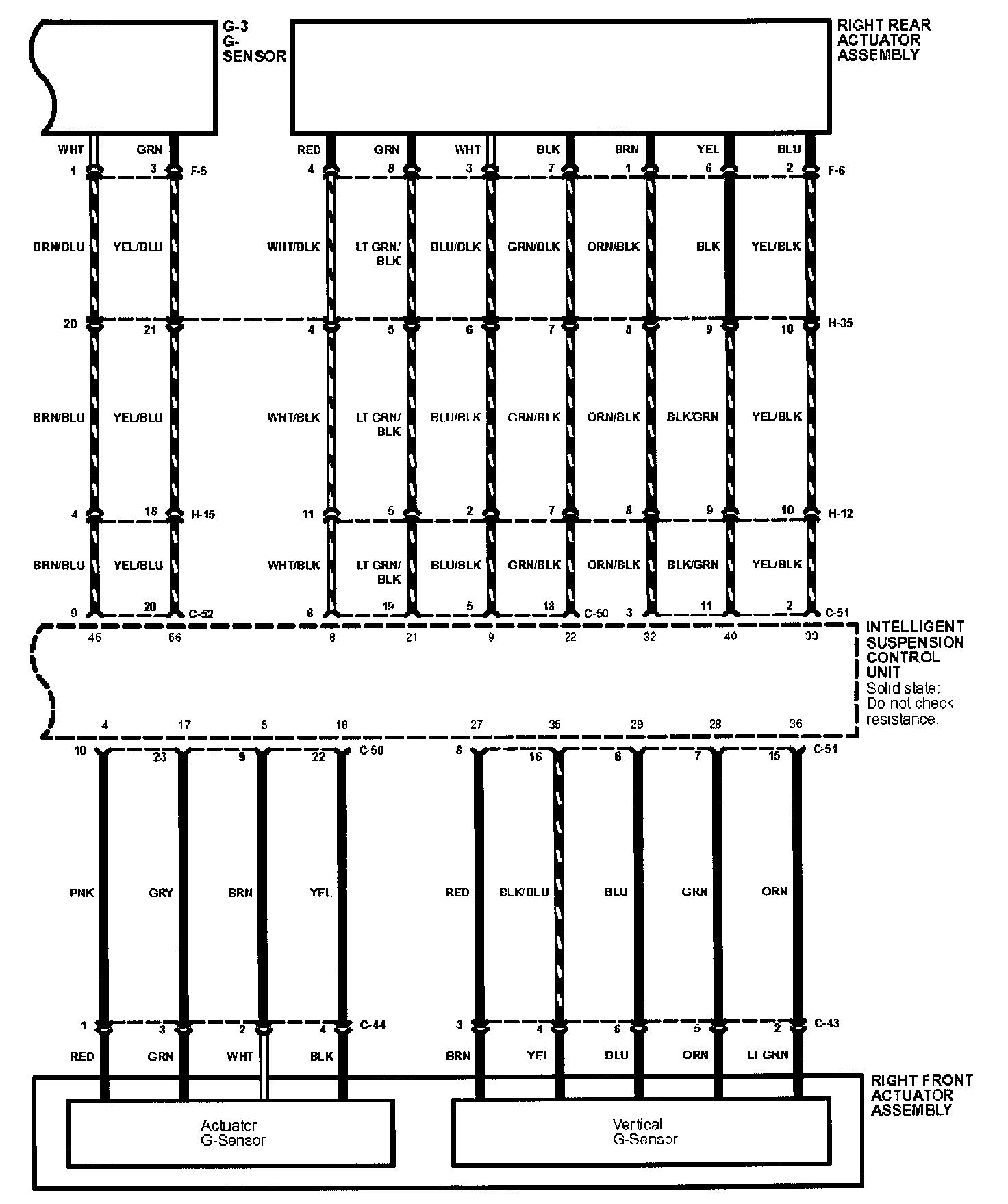

Intelligent Suspension System Image 38:

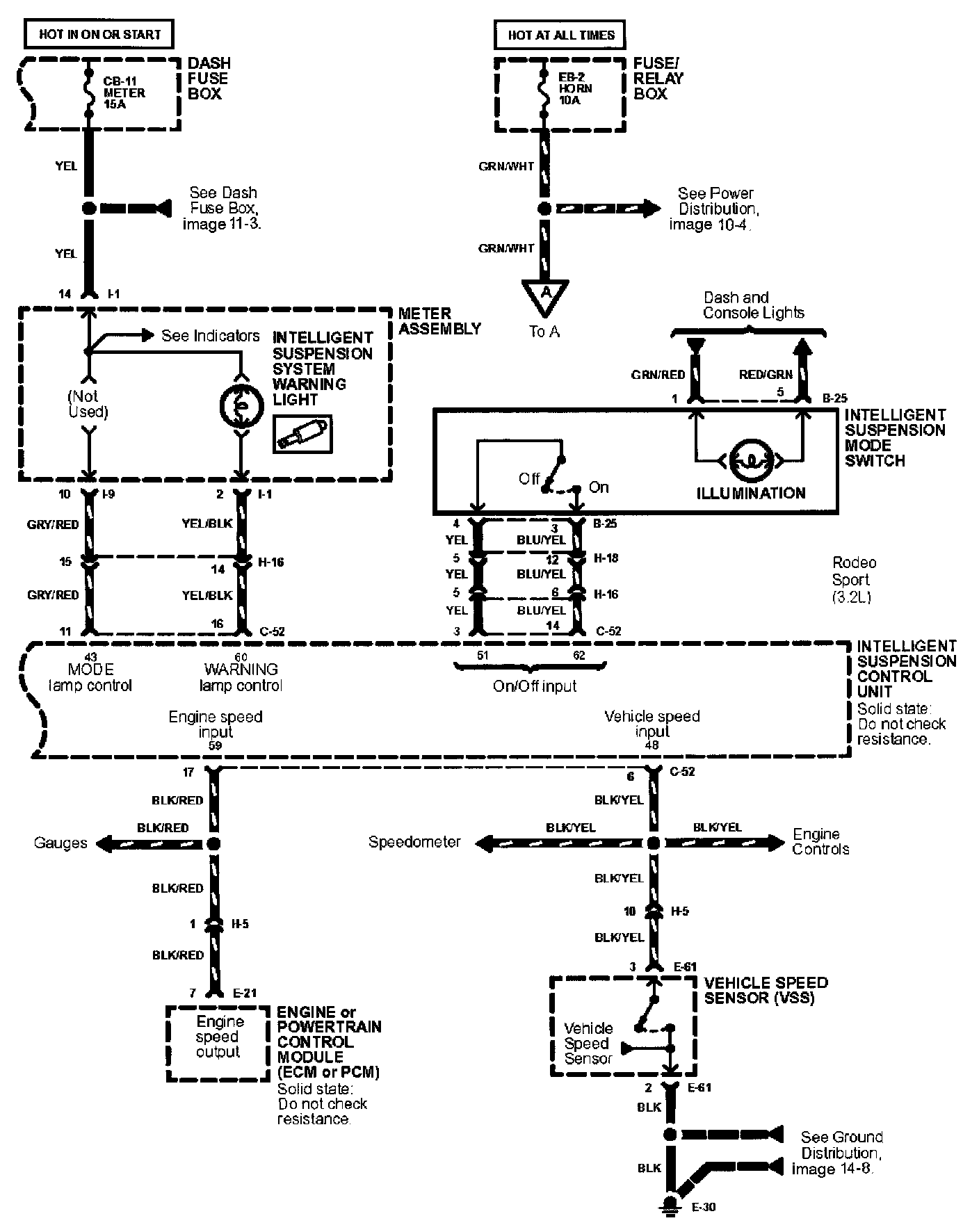

Intelligent Suspension System Image 38-1:

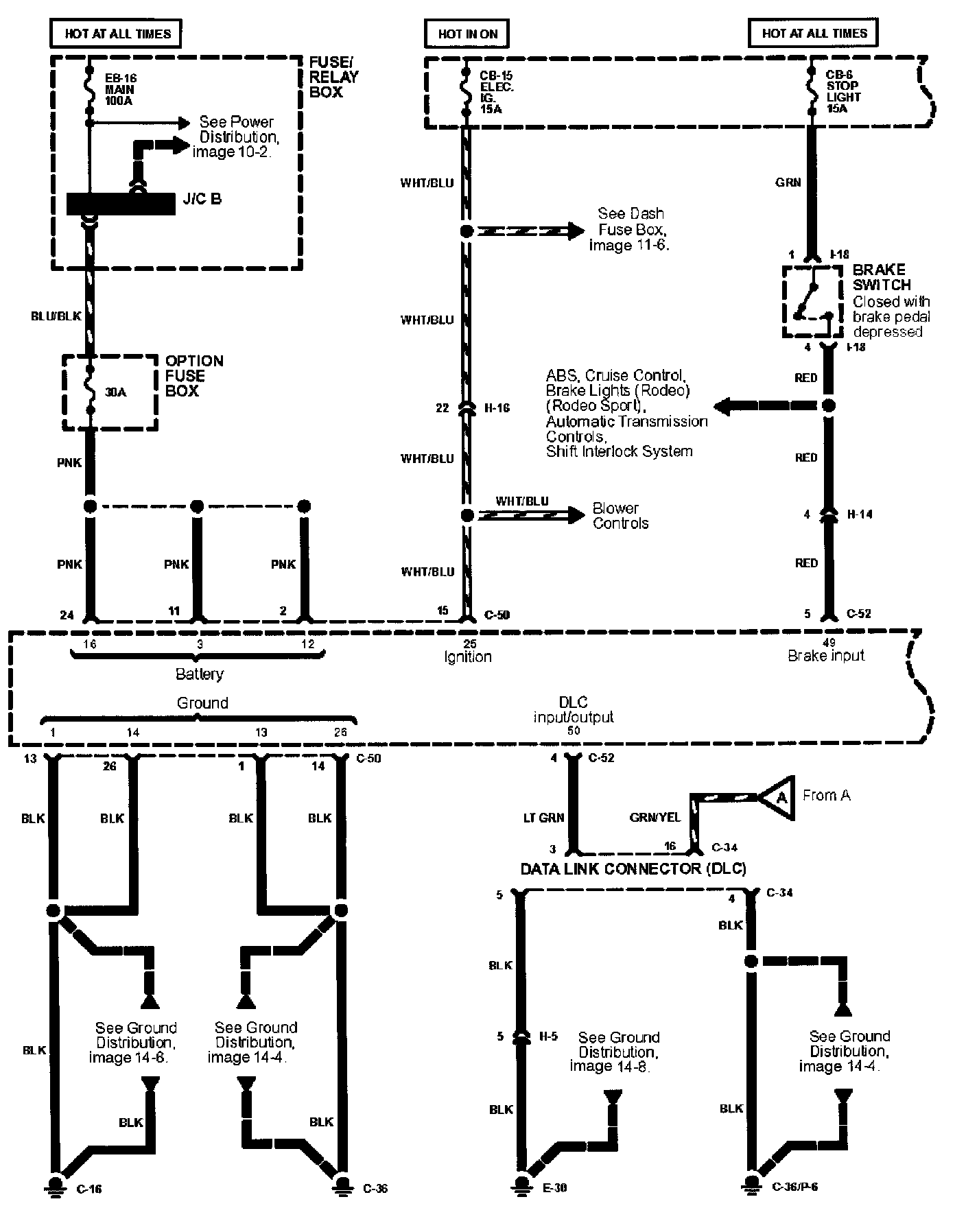

Intelligent Suspension System Image 38-2:



Intelligent Suspension System Image 38-3:
