Chart B - Air Bag Warning Lamp Comes "ON" Steady

Chat B "AIR BAR" Warning Lamp Comes "ON" Steady:

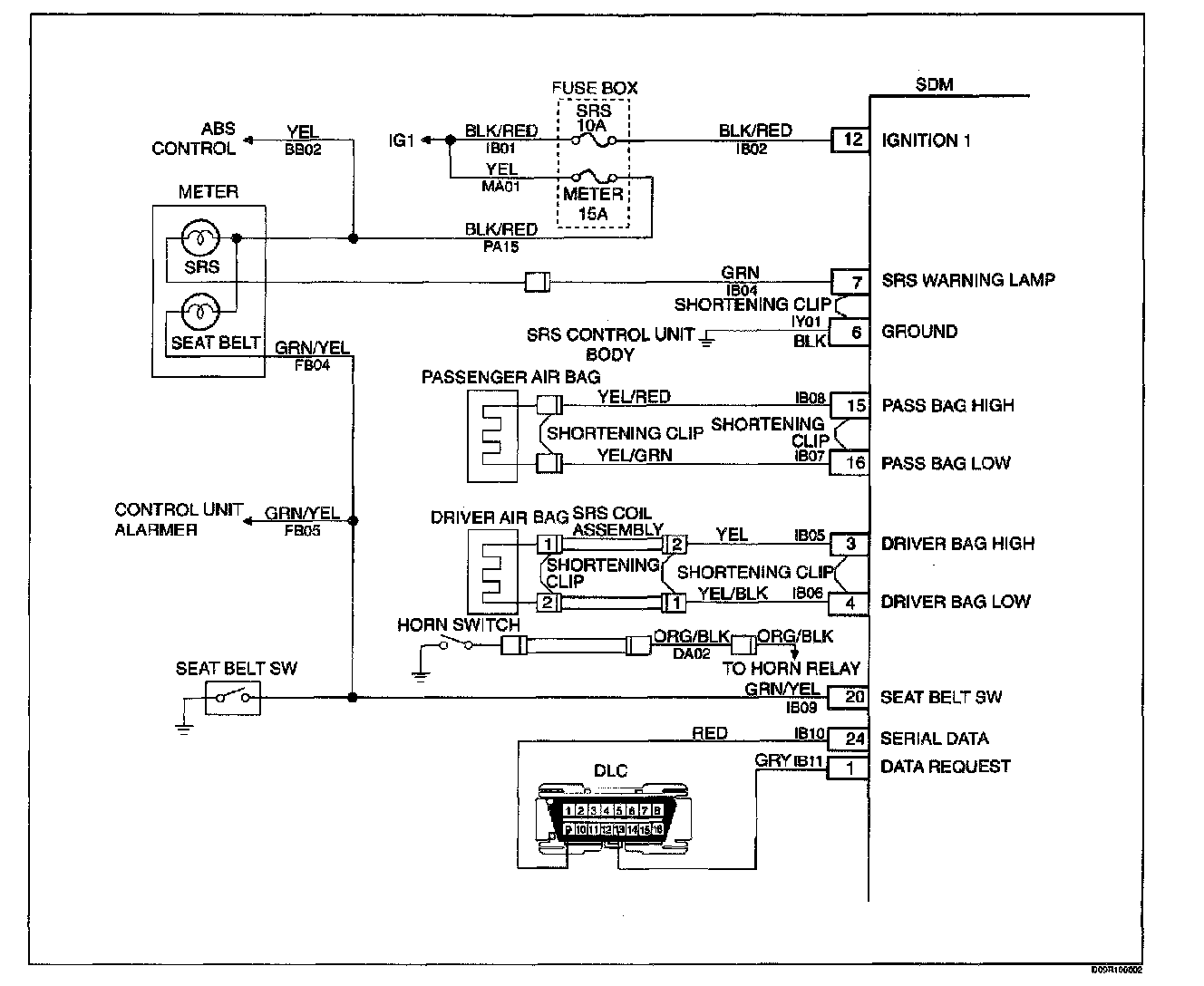

Circuit Description:
When the ignition switch is first turned "ON", "ignition 1" voltage is applied from the "METER" fuse to "AIR BAG", warning lamp which is connected to "Supplemental Restraint System (SRS) warning lamp", terminal "7". The "SRS" fuses apply system voltage to the "ignition 1" inputs, terminals "12". The Sensing and Diagnostic Module (SDM) responds by flashing the "AIR BAG" warning lamp 7 times. If "ignition 1" voltage is less than 9 volts, the "AIR BAG" warning lamp will come "ON" solid with no DTCs set.

Chart Test Description:
Number (5) below refer to step number (5) on the diagnostic chart.
2. This test checks for an open in the "ignition 1" circuit to the SDM.
3. This test checks for the voltage of "ignition 1."
4. This test determines whether the malfunction is a short to ground in Circuit IB04 - GREEN.

Steps 1 - 5:

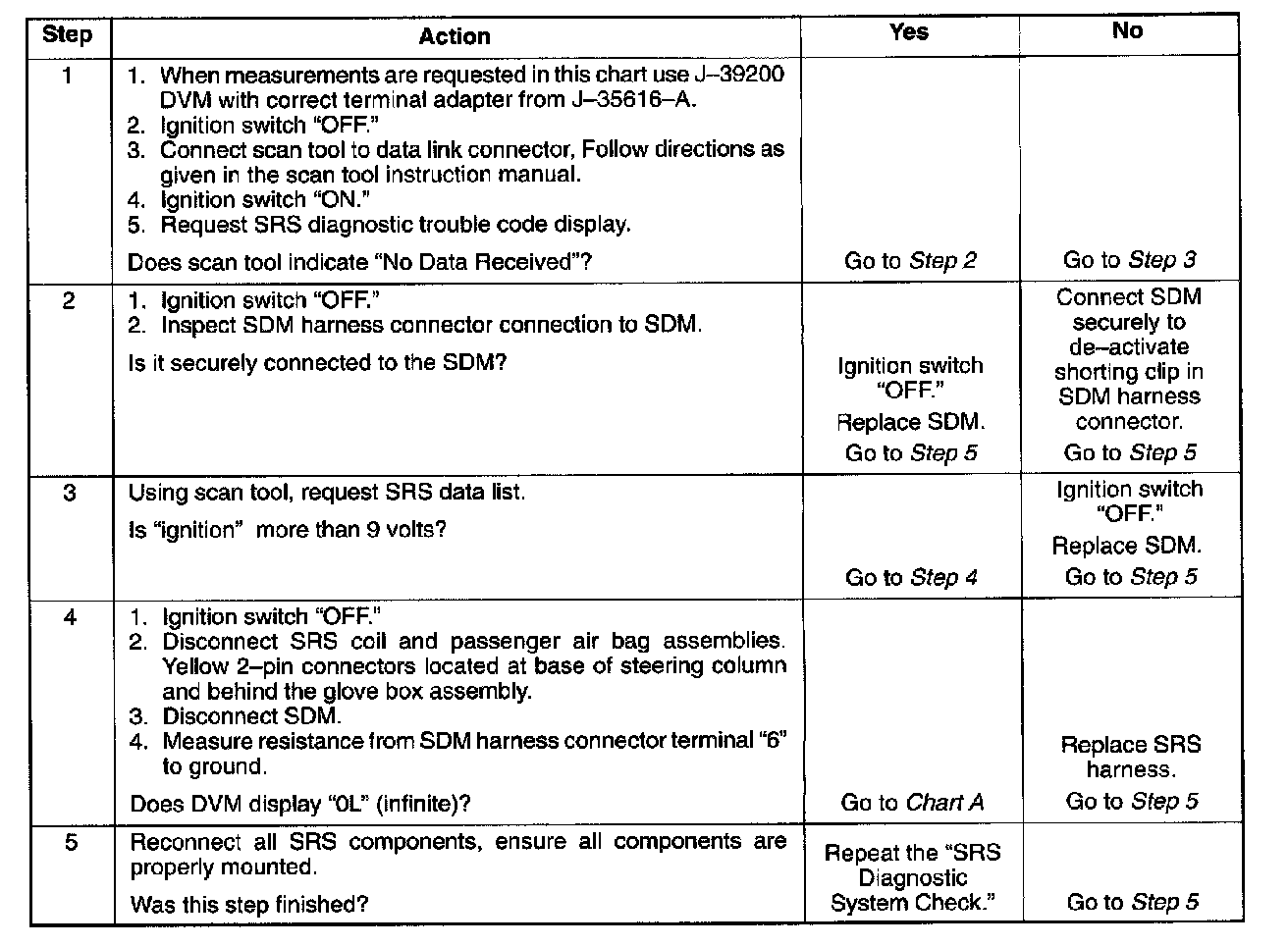

Chart B "AIR BAG" Warning Lamp Comes "ON" Steady
