Home >> Isuzu >> 2001 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Body and Frame >> Tailgate >> Tailgate Lock Cylinder >> Locations

Tailgate Lock Cylinder: Locations

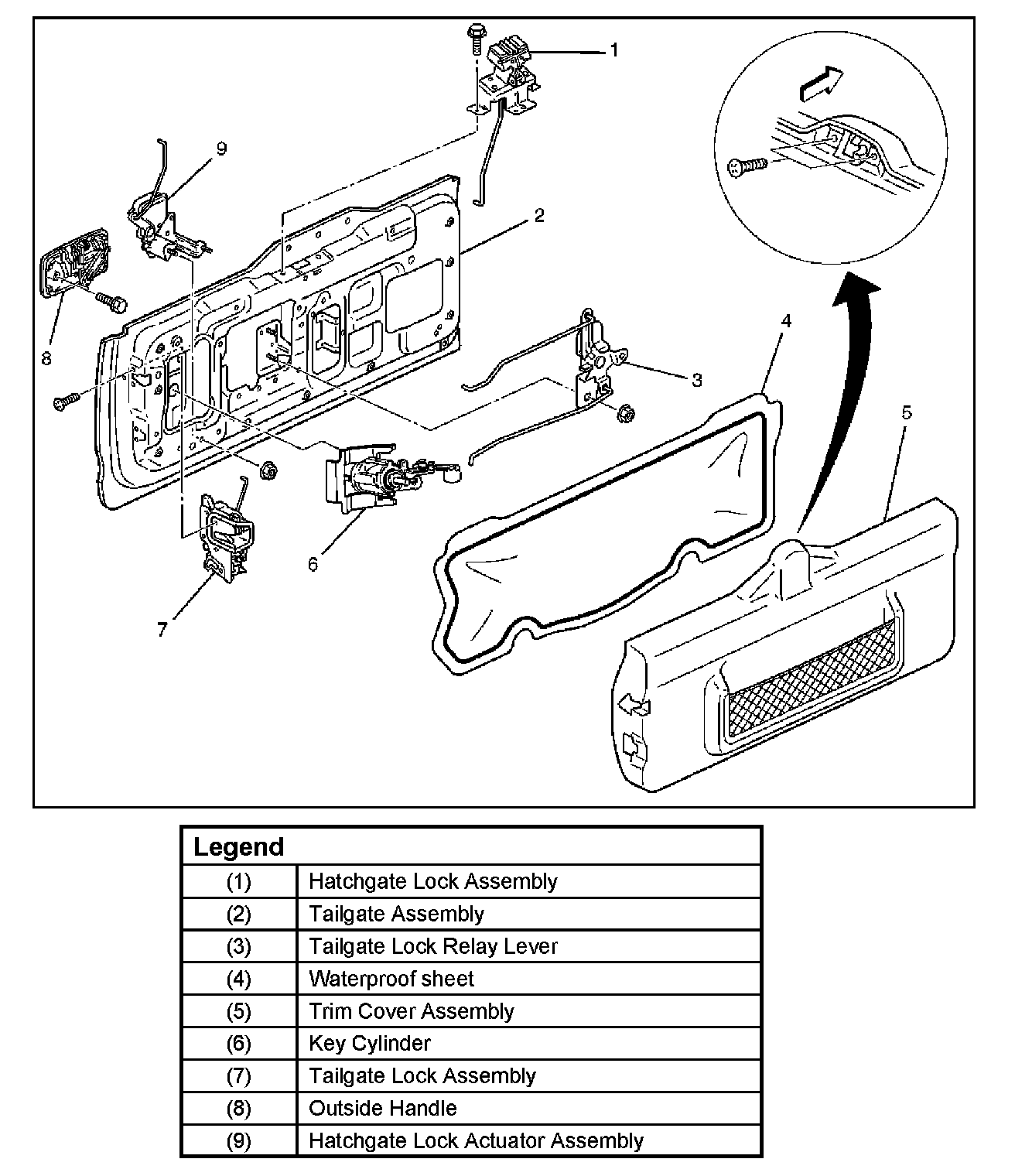

Tailgate Lock And Hatchgate Lock (LWB):

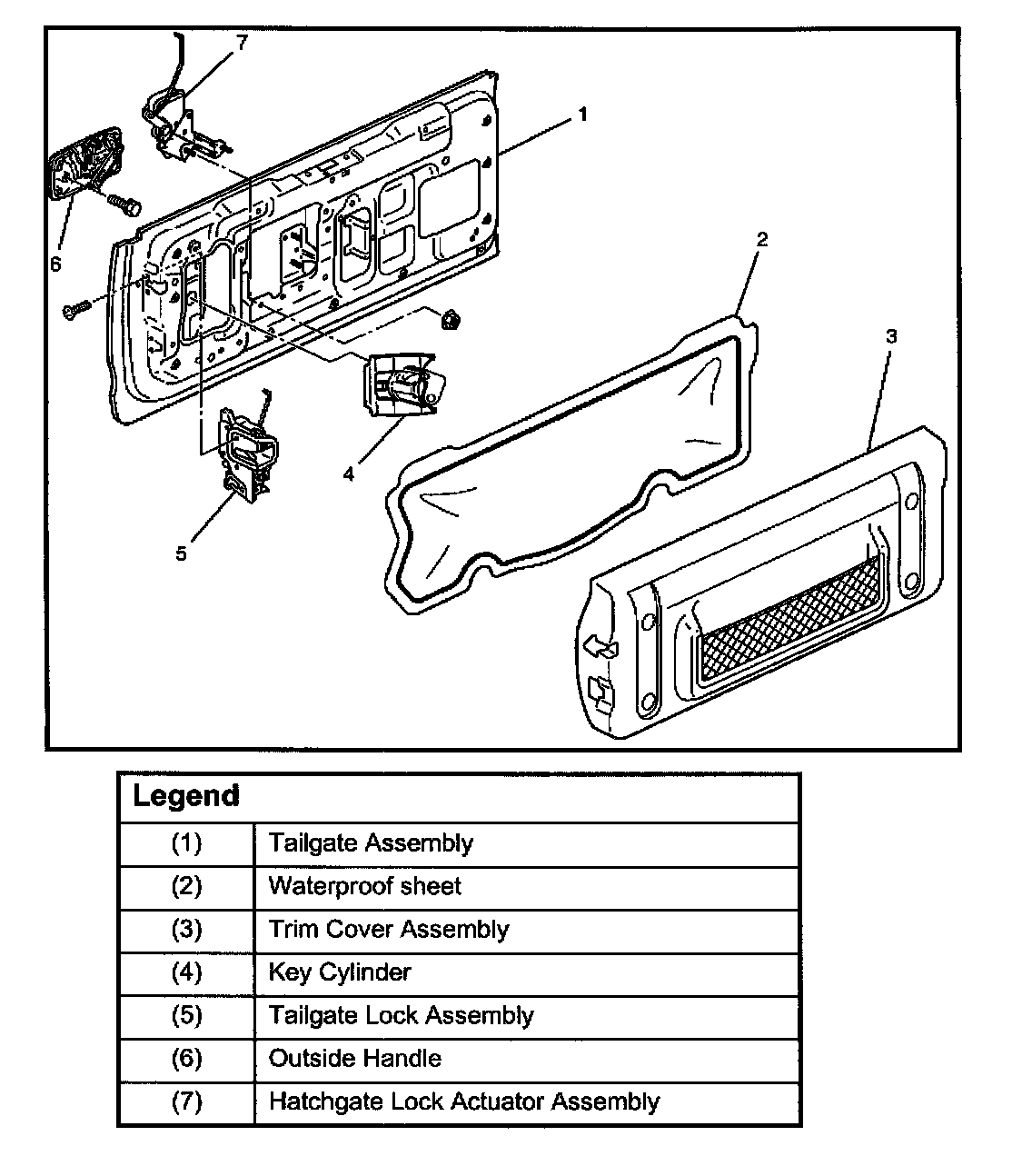

Tailgate Lock And Associated Parts:
