LEMON Manuals
: Even more car manuals for everyone
Home
>>
Isuzu
>>
2000
>>
Rodeo S 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
Wiring Diagrams

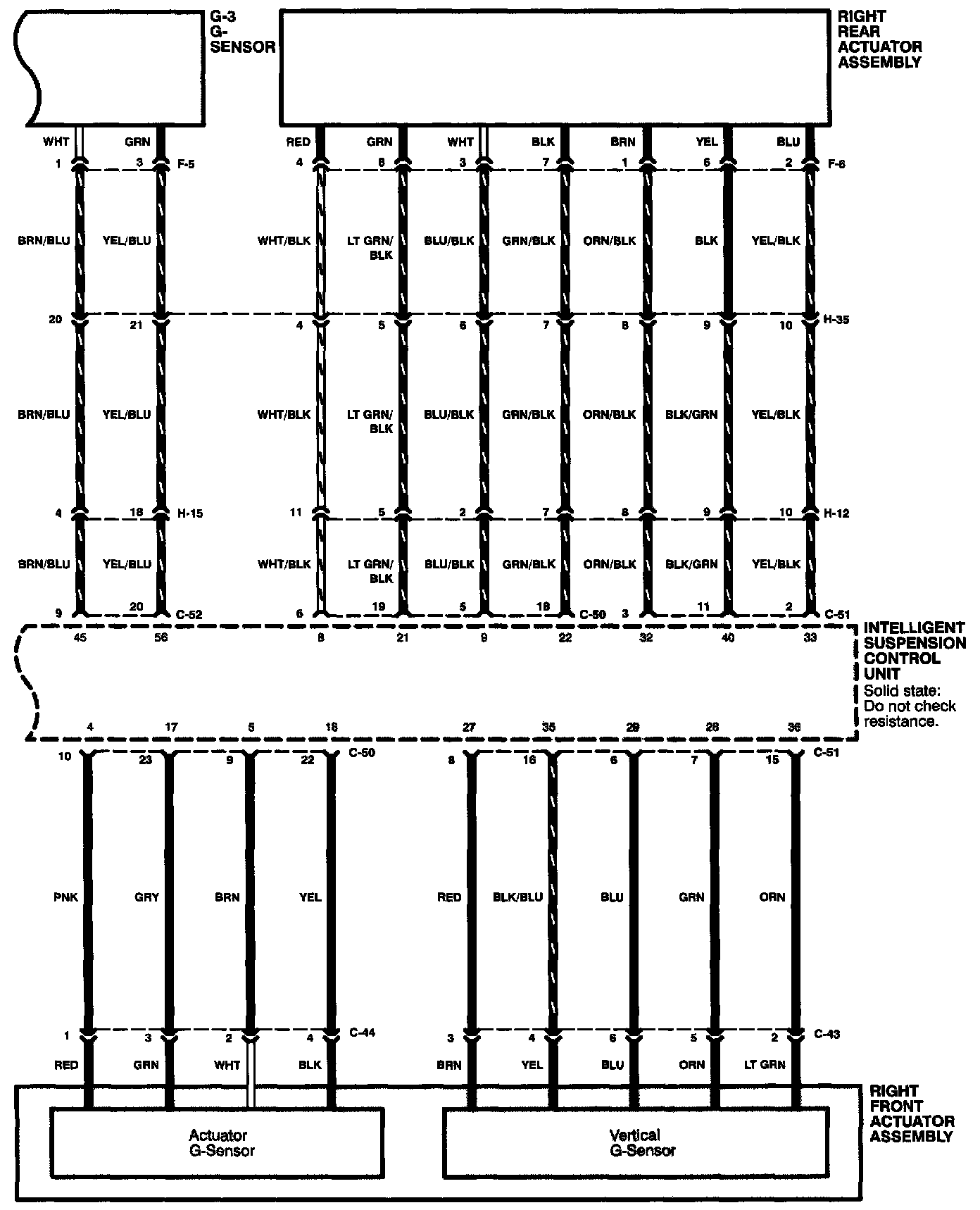

Intelligent Suspension System (1 Of 4):

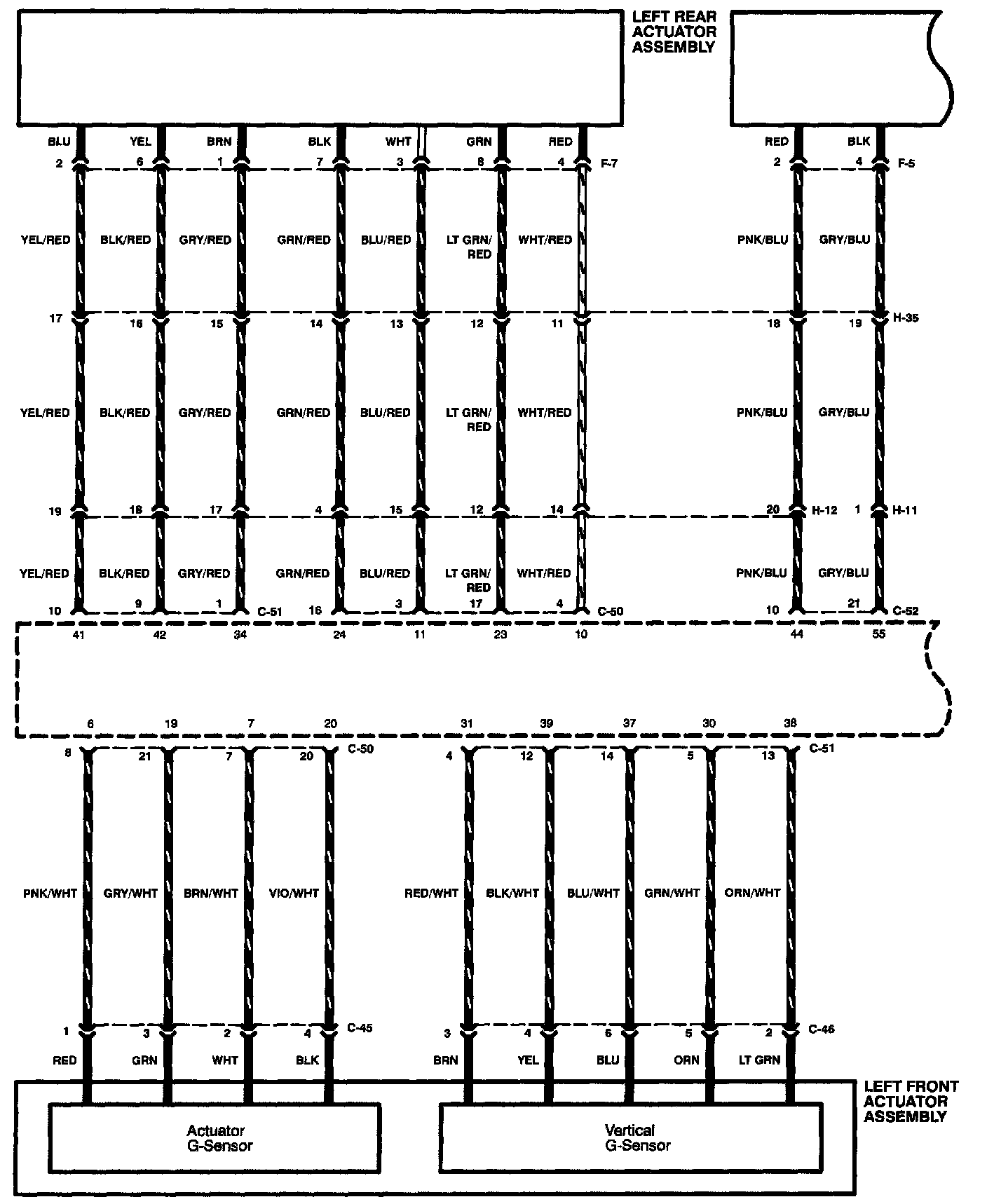

Intelligent Suspension System (2 Of 4):

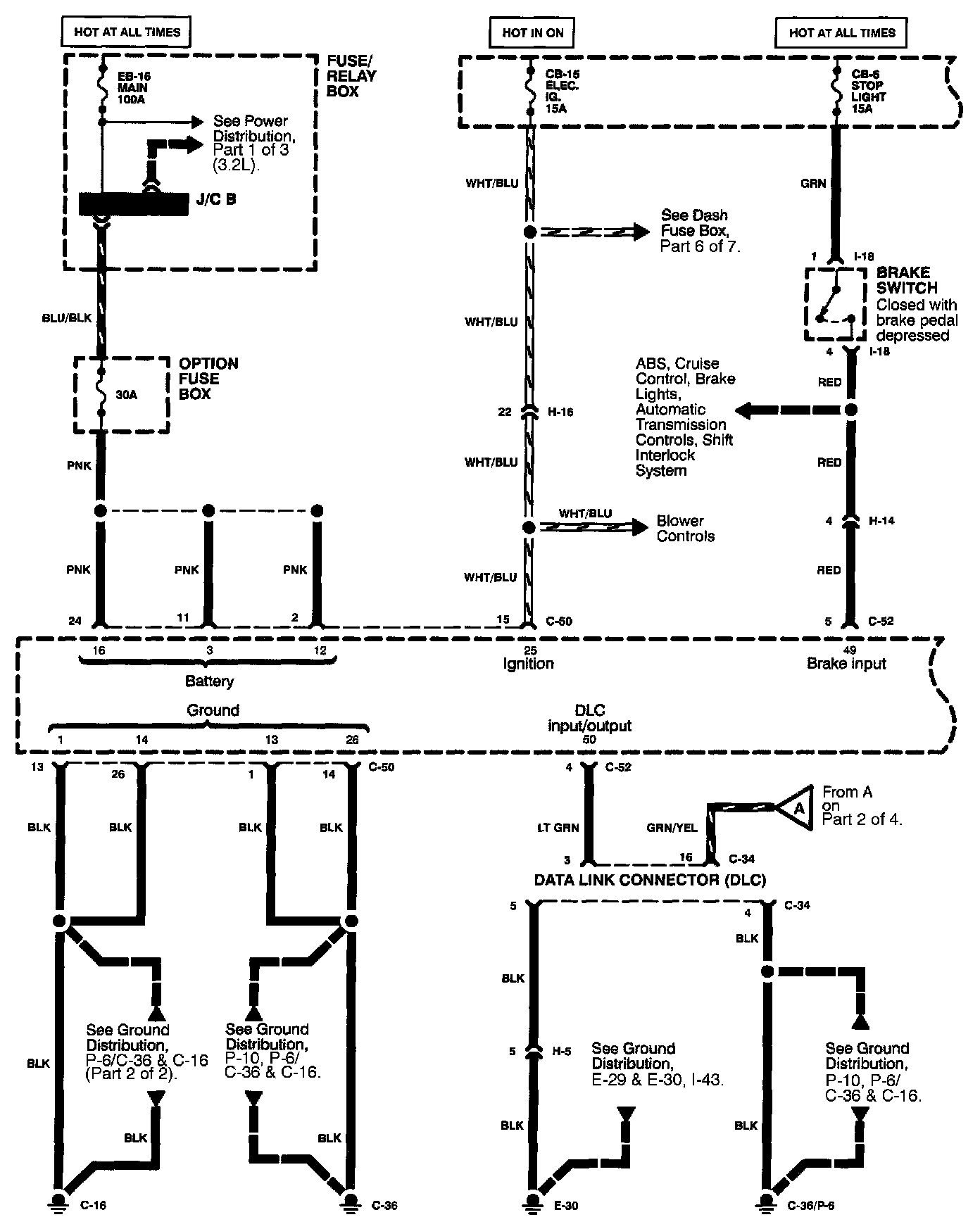

Intelligent Suspension System (3 Of 4):

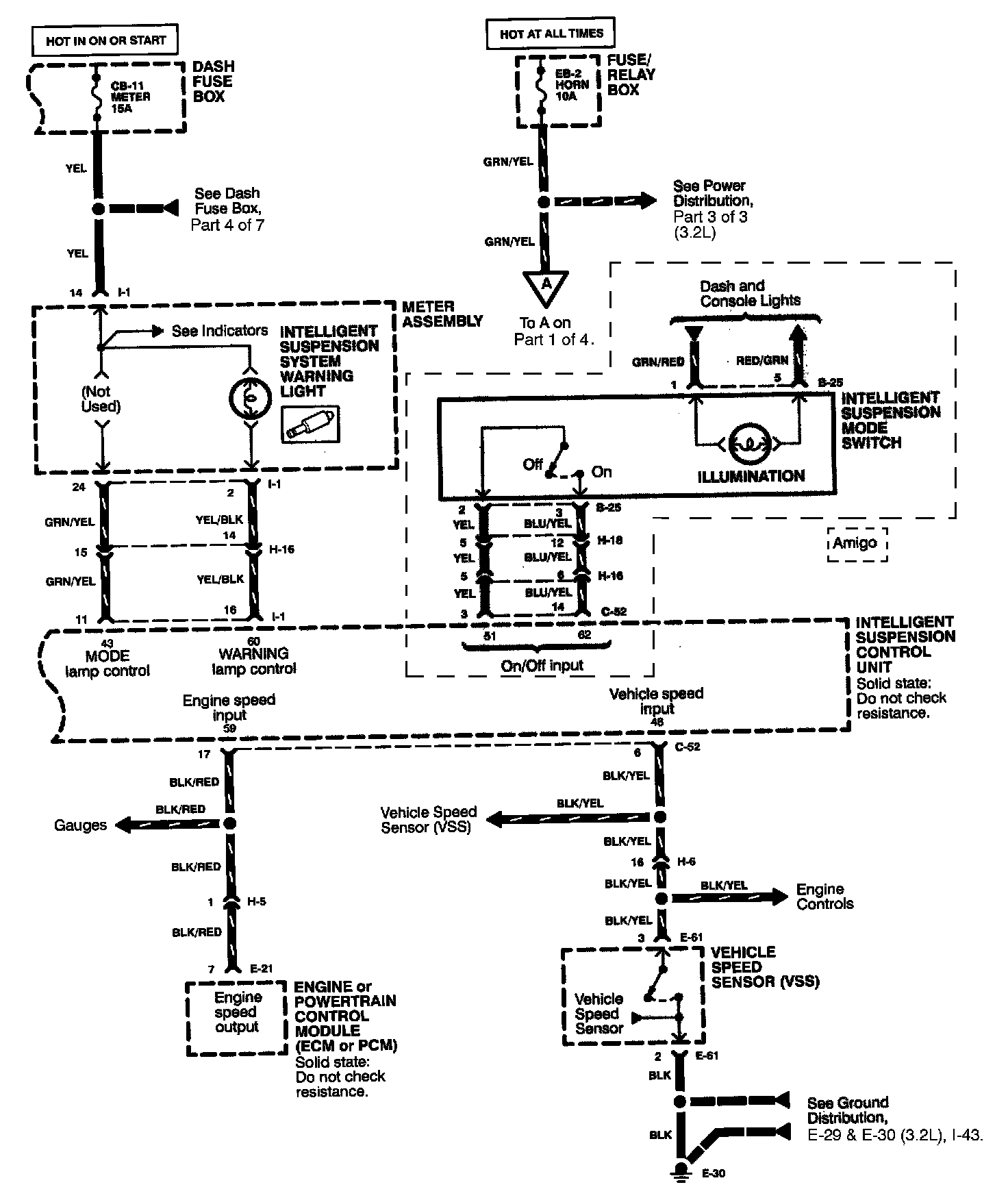

Intelligent Suspension System (4 Of 4):
