Home >> Isuzu >> 2000 >> Rodeo LSE 4WD V6-3.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - M/T >> Gear Sensor/Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

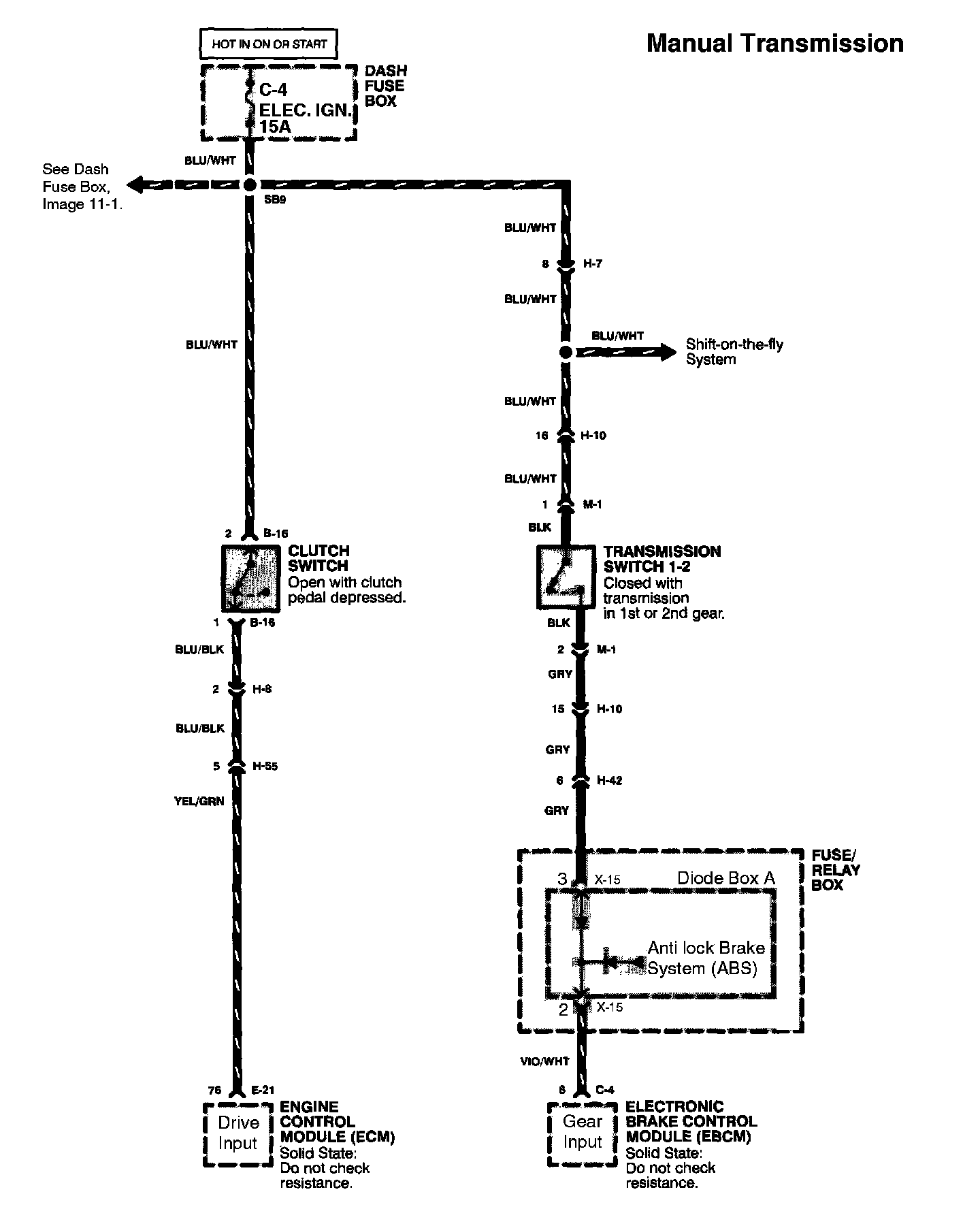

Engine Controls (M/T) Image 23-9:
