LEMON Manuals: Even more car manuals for everyone
Home >> Isuzu >> 2000 >> Rodeo LSE 4WD V6-3.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Diagrams >> Diagram Information and Instructions >> Glossary of Symbols

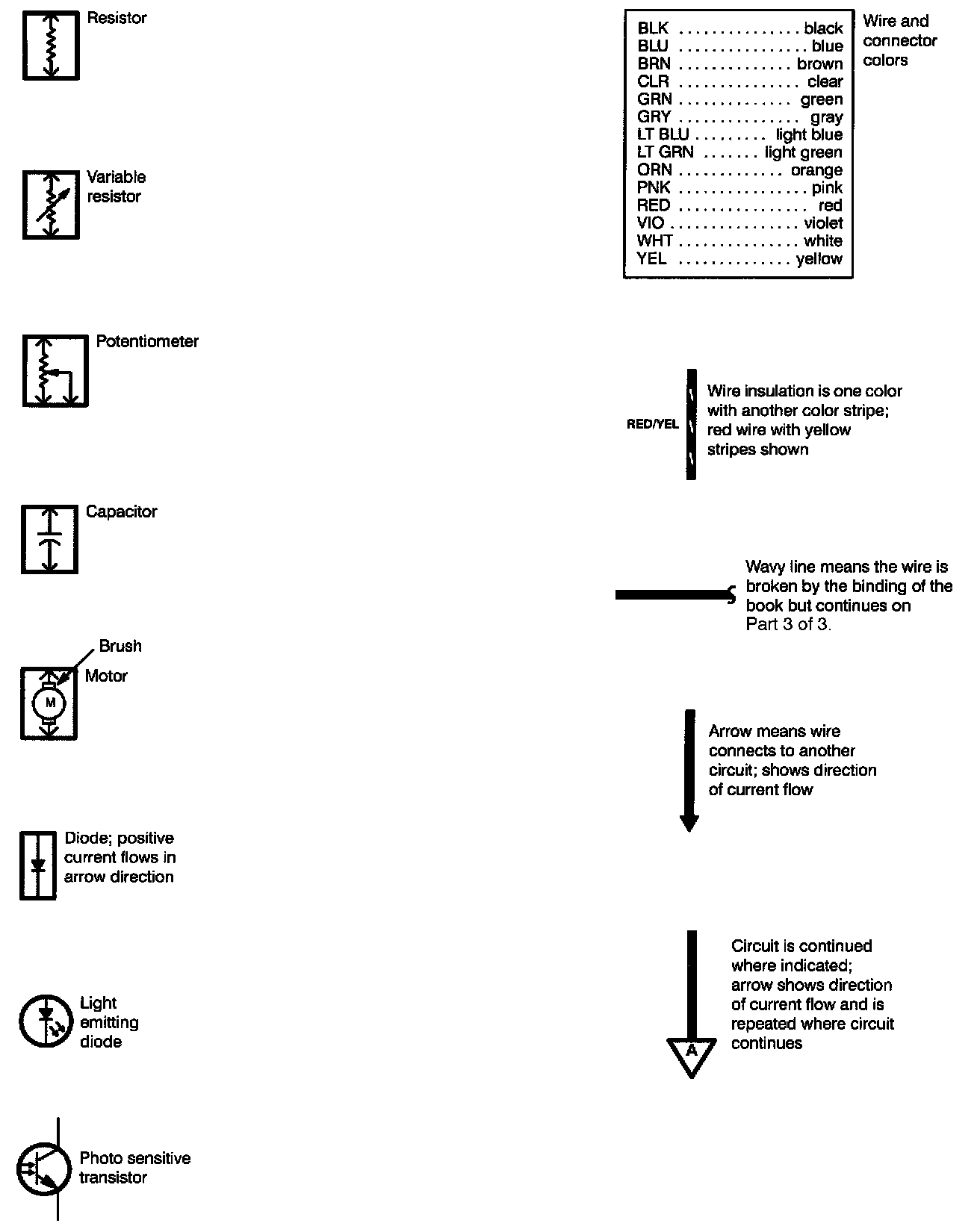

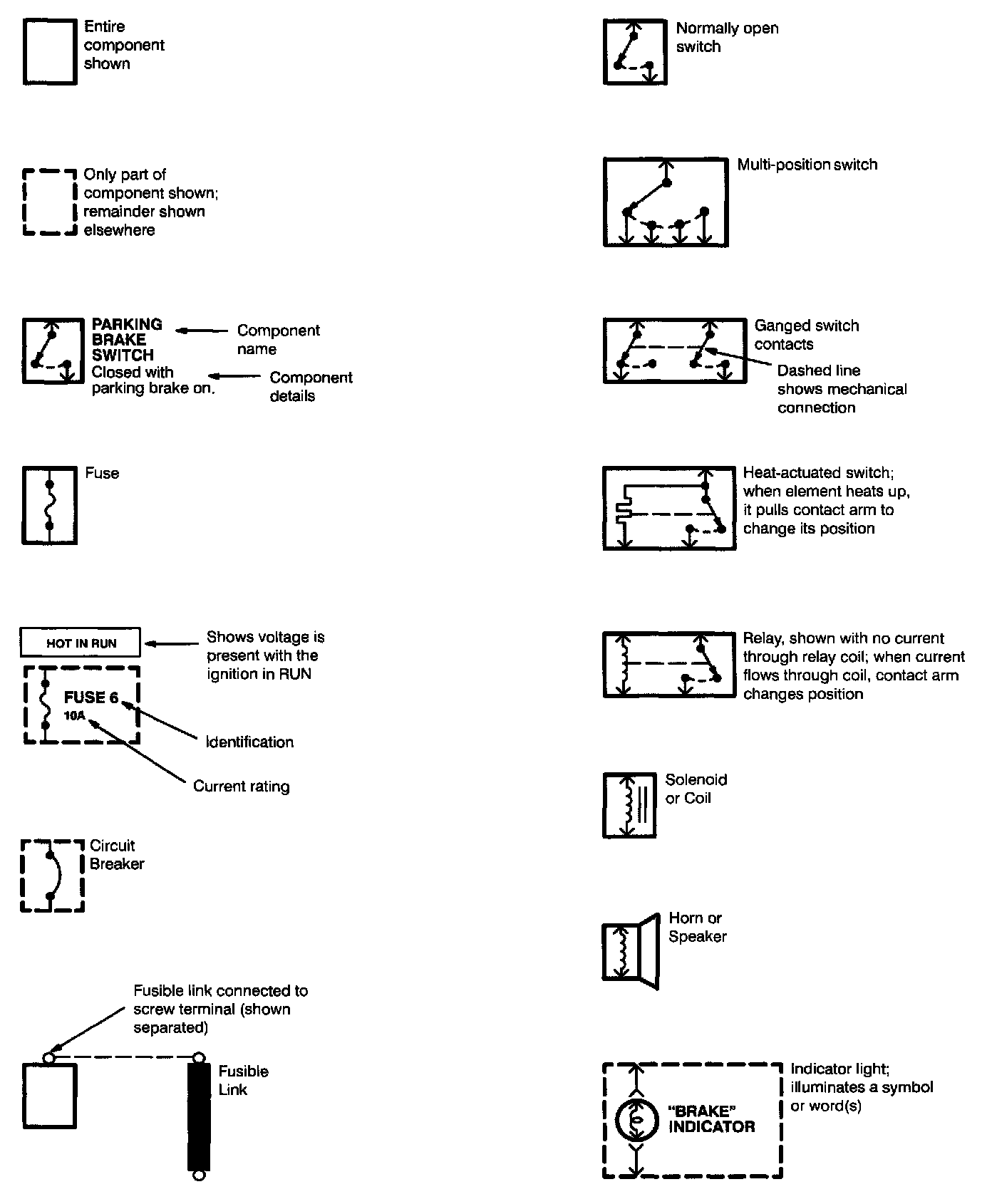

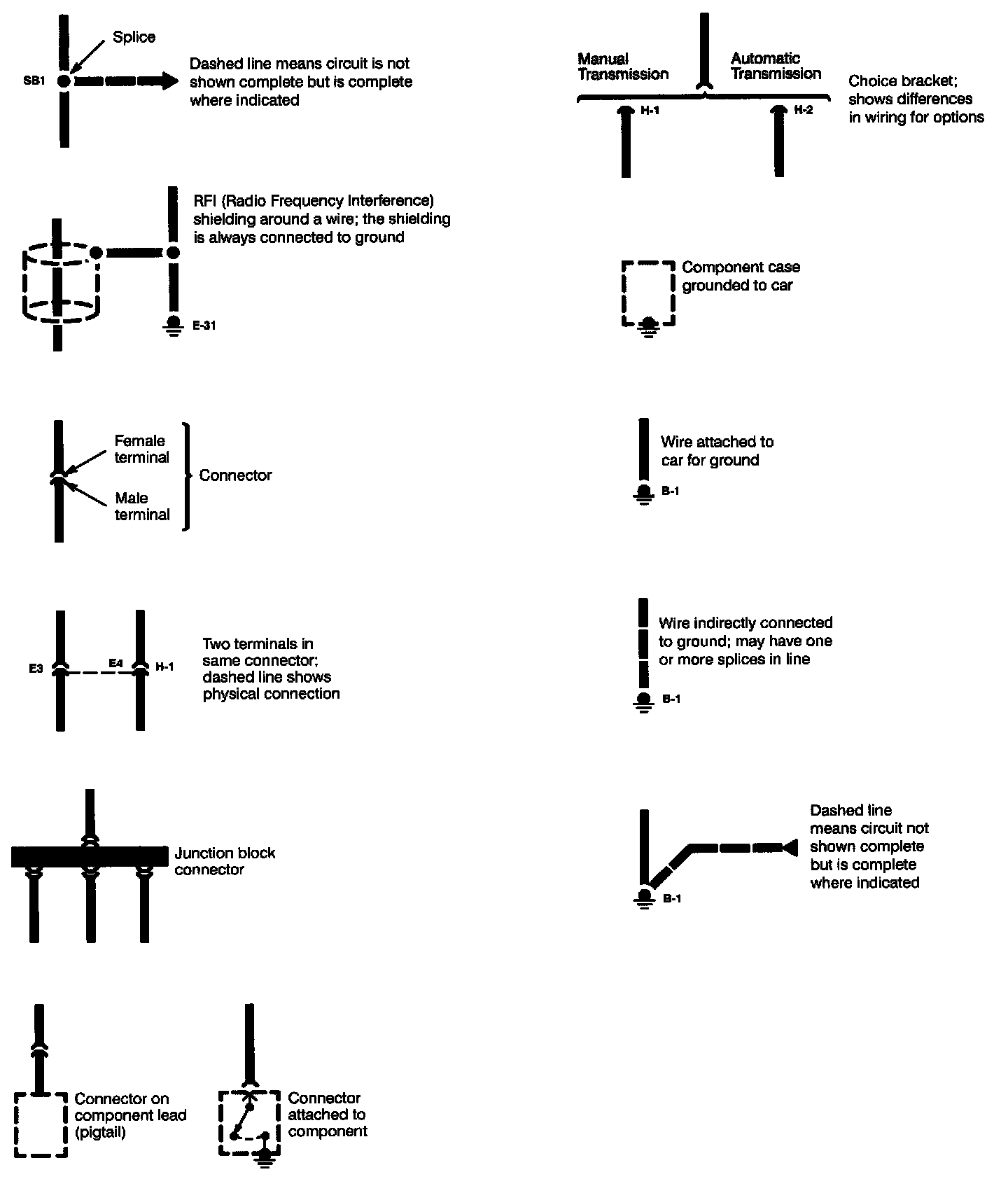

Glossary of Symbols

1 Of 3:



2 Of 3:



3 Of 3:
