Instrument Cluster / Carrier

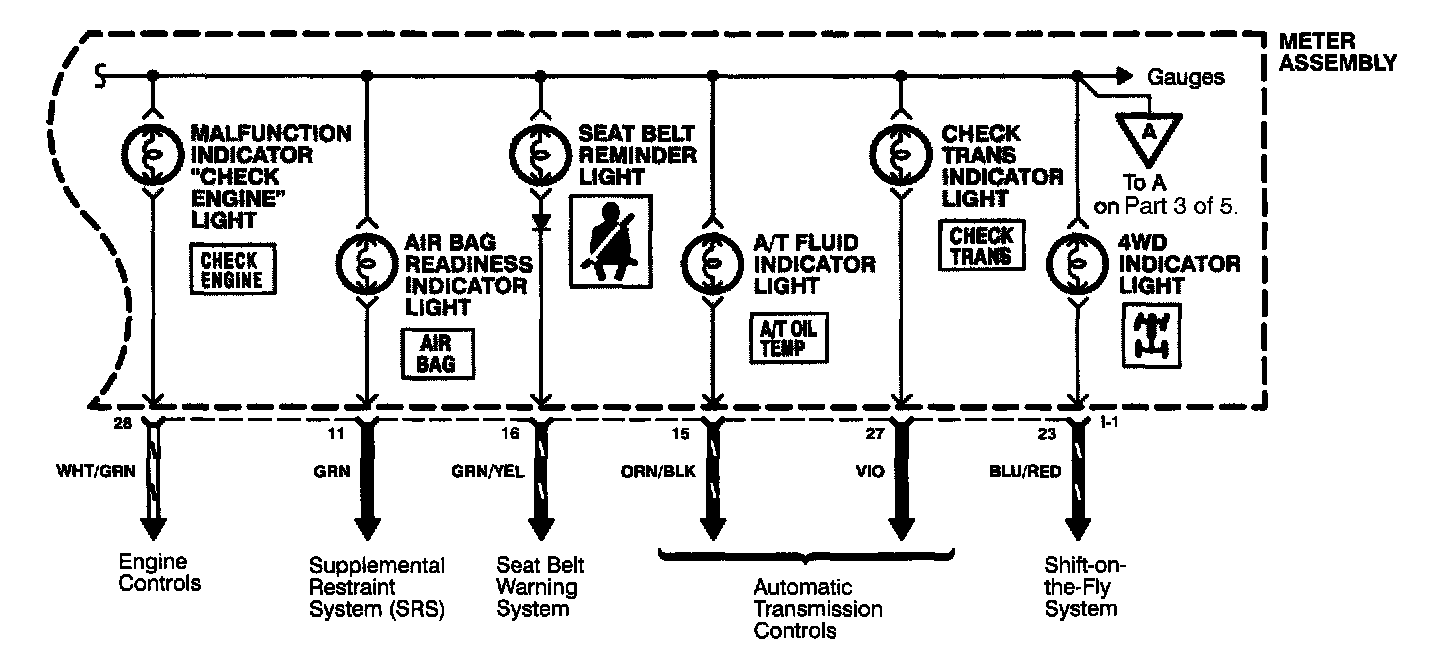

Indicators (1 Of 5):

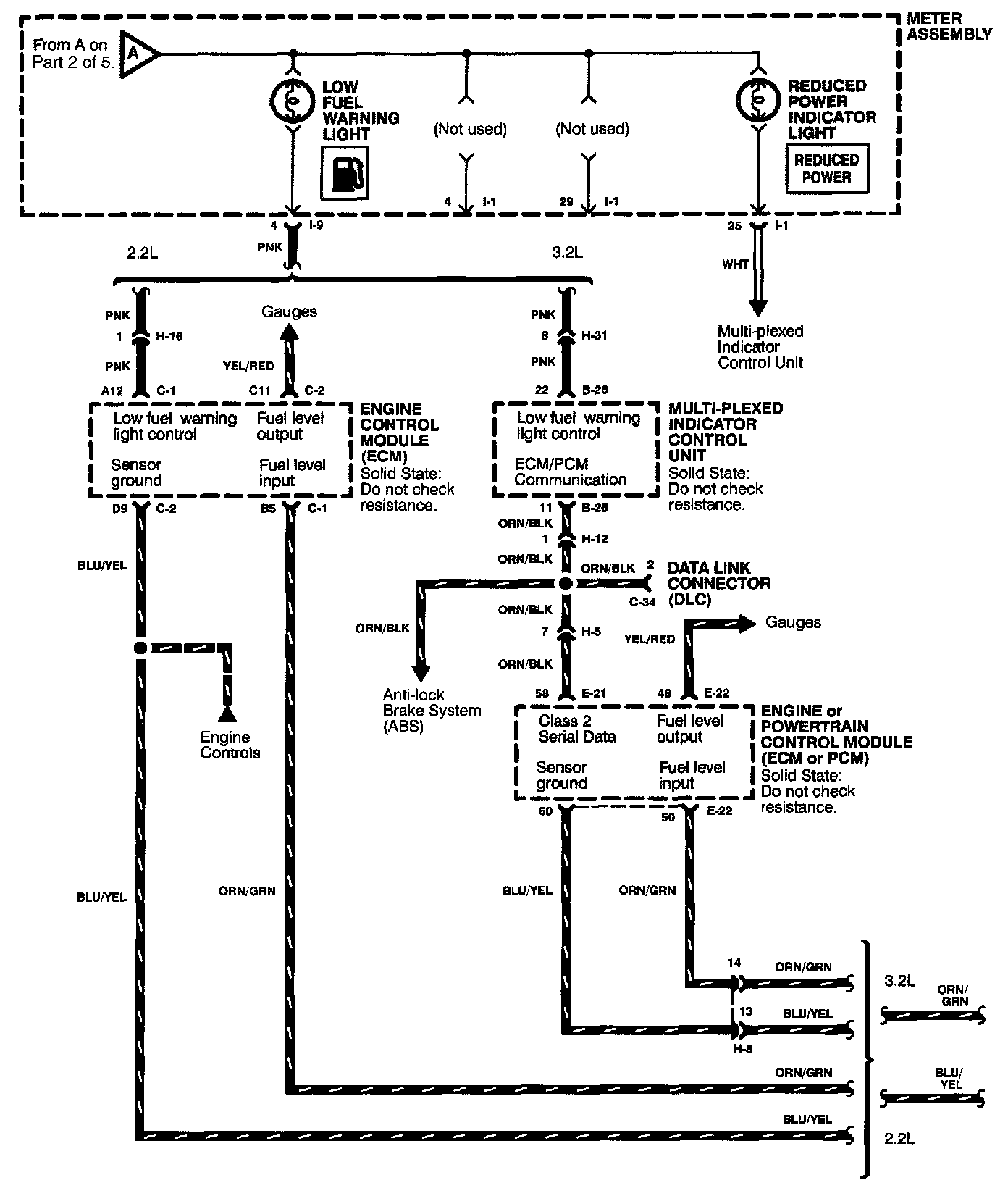

Indicators (2 Of 5):

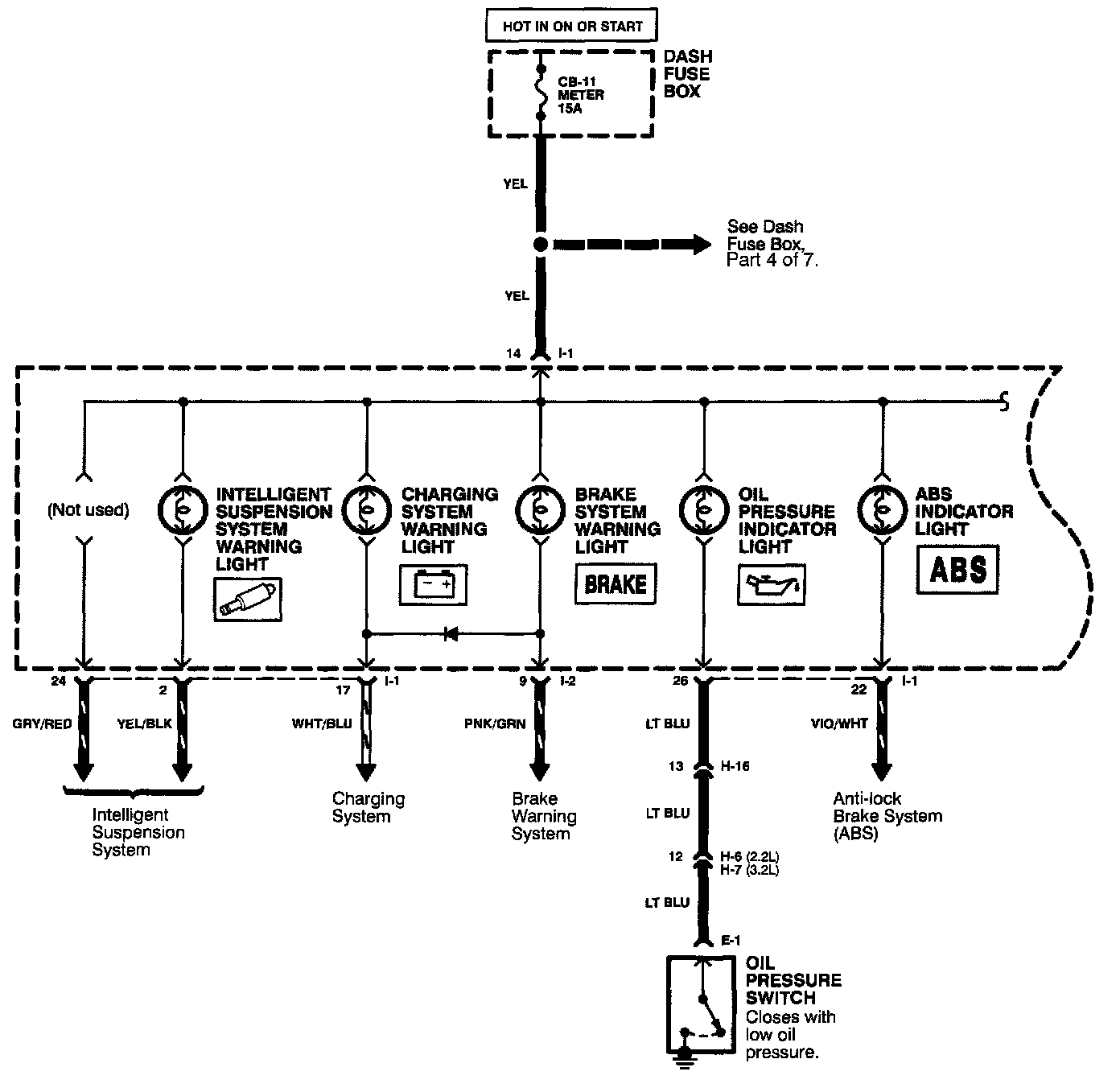

Indicators (3 Of 5):

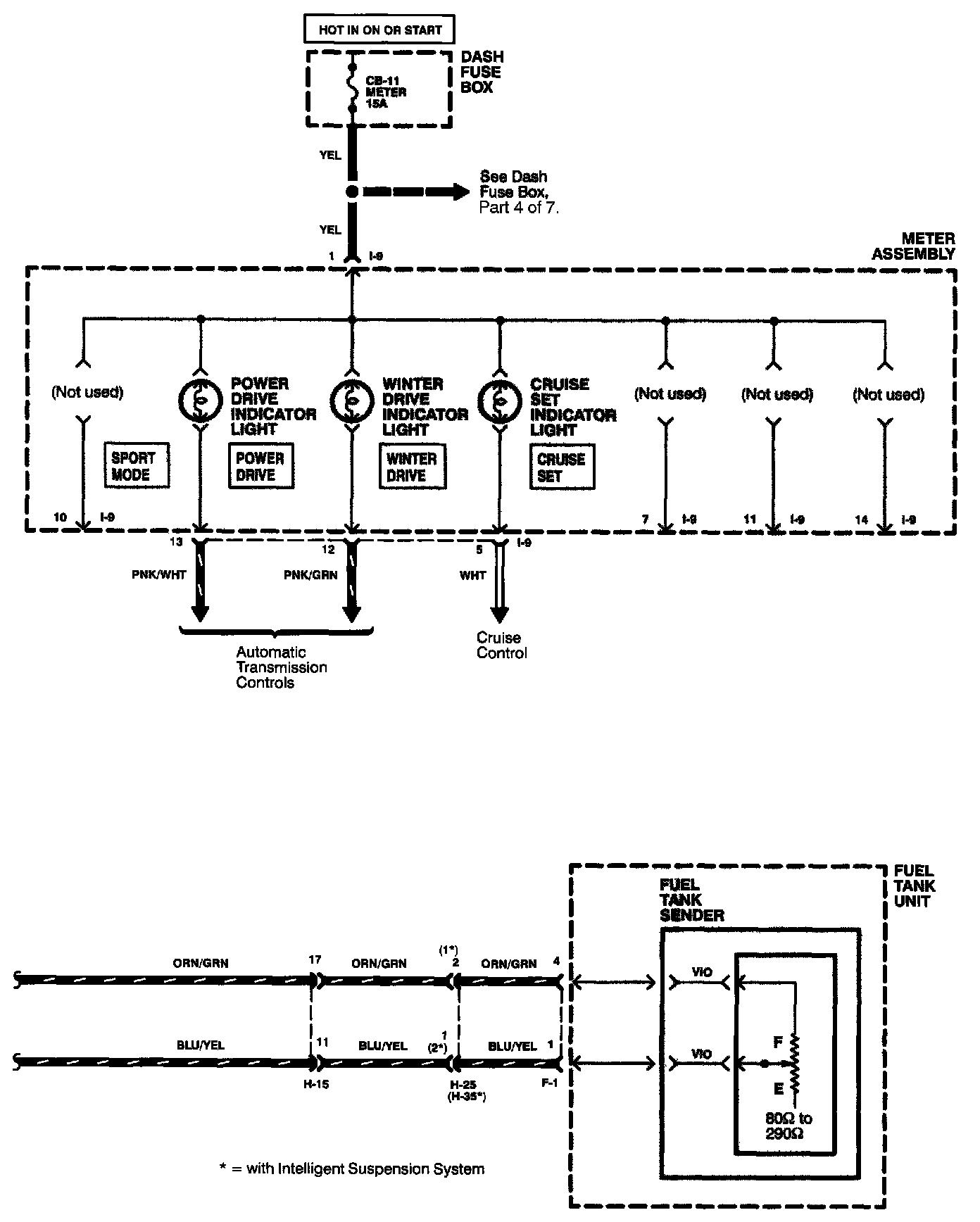

Indicators (4 Of 5):

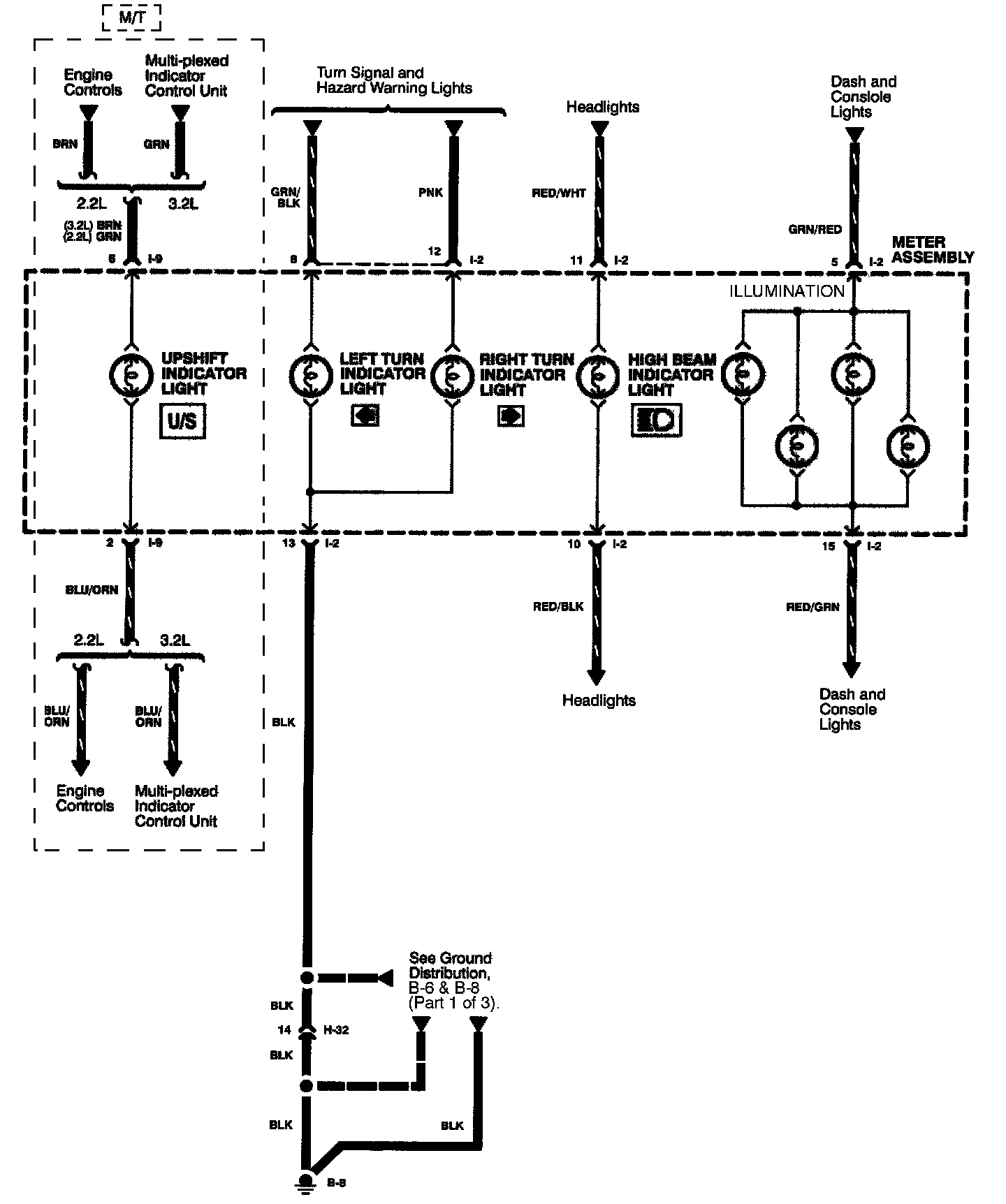

Indicators (5 Of 5):



Gauges (1 Of 2):



Gauges (2 Of 2):

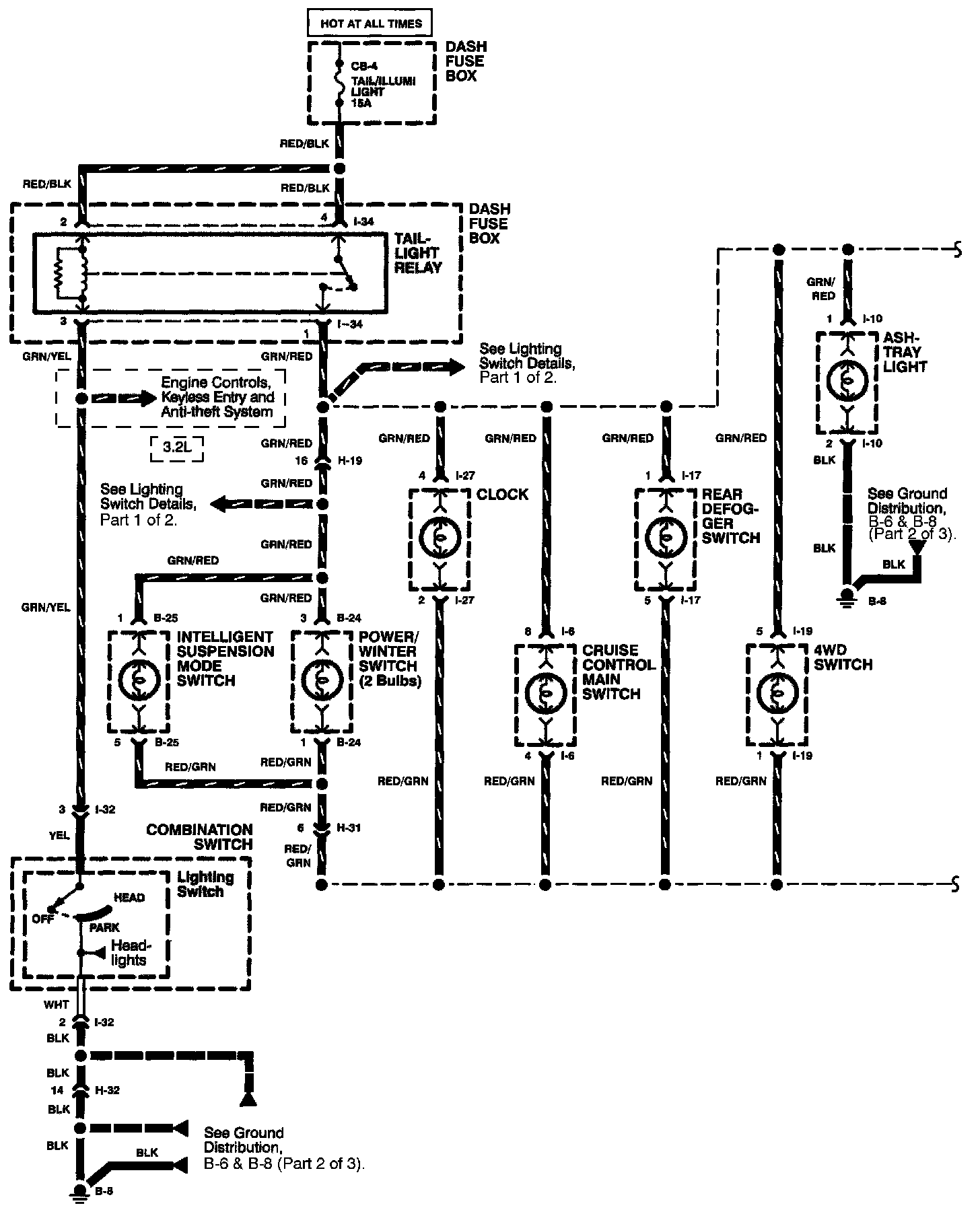

Dash & Console Lights (1 Of 2):

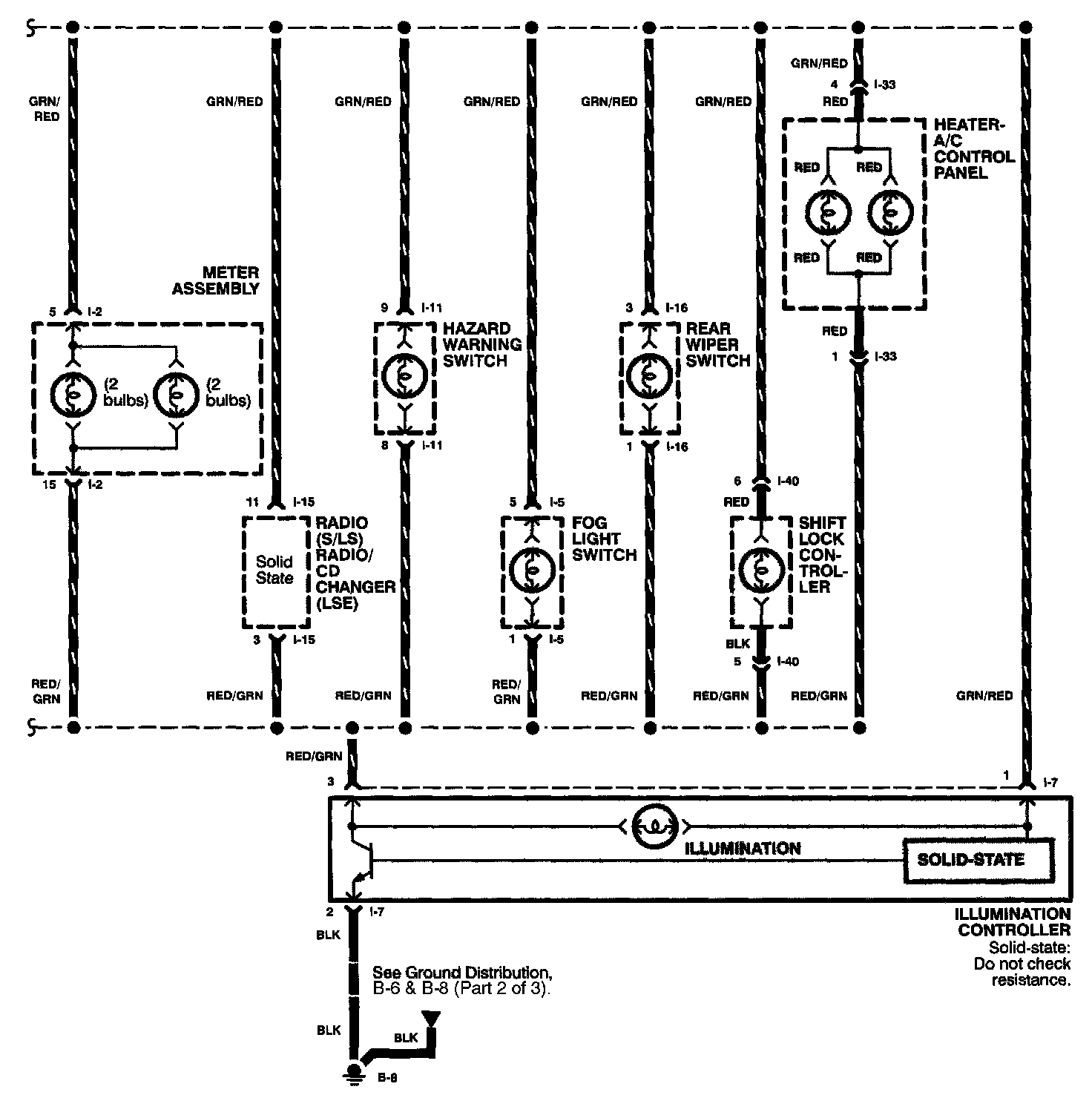

Dash & Console Lights (Part 2 Of 2):
