Spare Tire Hanger

Spare Tire Hanger

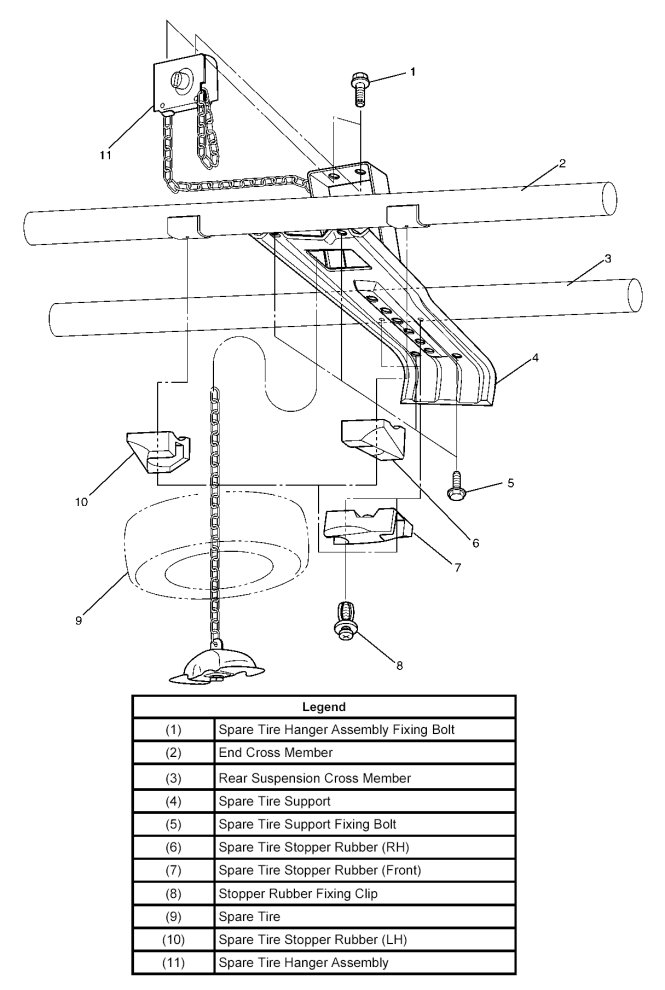

Parts Location:

Removal

1. Open the hatch gate and tail gate.
2. Remove the spare tire (3).

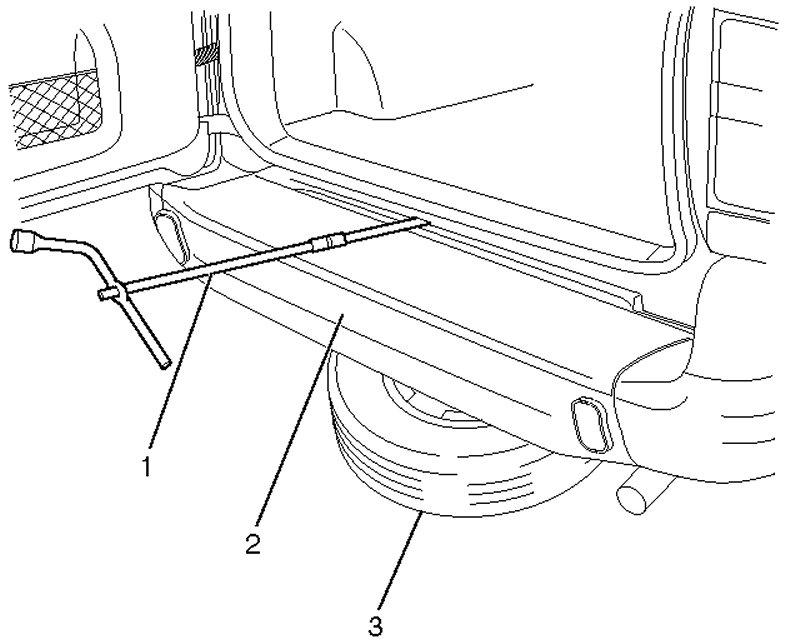

- Put the spare tire handle (1) to the center of upper side of rear bumper (2) and turn counterclockwise. Put spare tire down.







3. Remove the spare tire support.
- Remove the four bolts that are fixed to frame cross member.

4. Remove the spare tire hanger assembly.
- Remove the two fixing bolts.

Installation

To install, follow the removal steps in the reverse order, noting the following points:

1. Install the spare tire firmly.
2. Tighten the spare tire support fixing bolts to the specified torque.

Torque: 40 N.m (4.1 kg.m)


3. Tighten the spare tire hanger fixing bolts to the specified torque.

Torque: 19 N.m (1.9 kg.m)
