Shock Absorber: Removal

  1. Remove shock absorber fixing nut and washer.
  2. Remove shock absorber fixing bolt and nut.
  3. Remove shock absorber. See Fig 1.

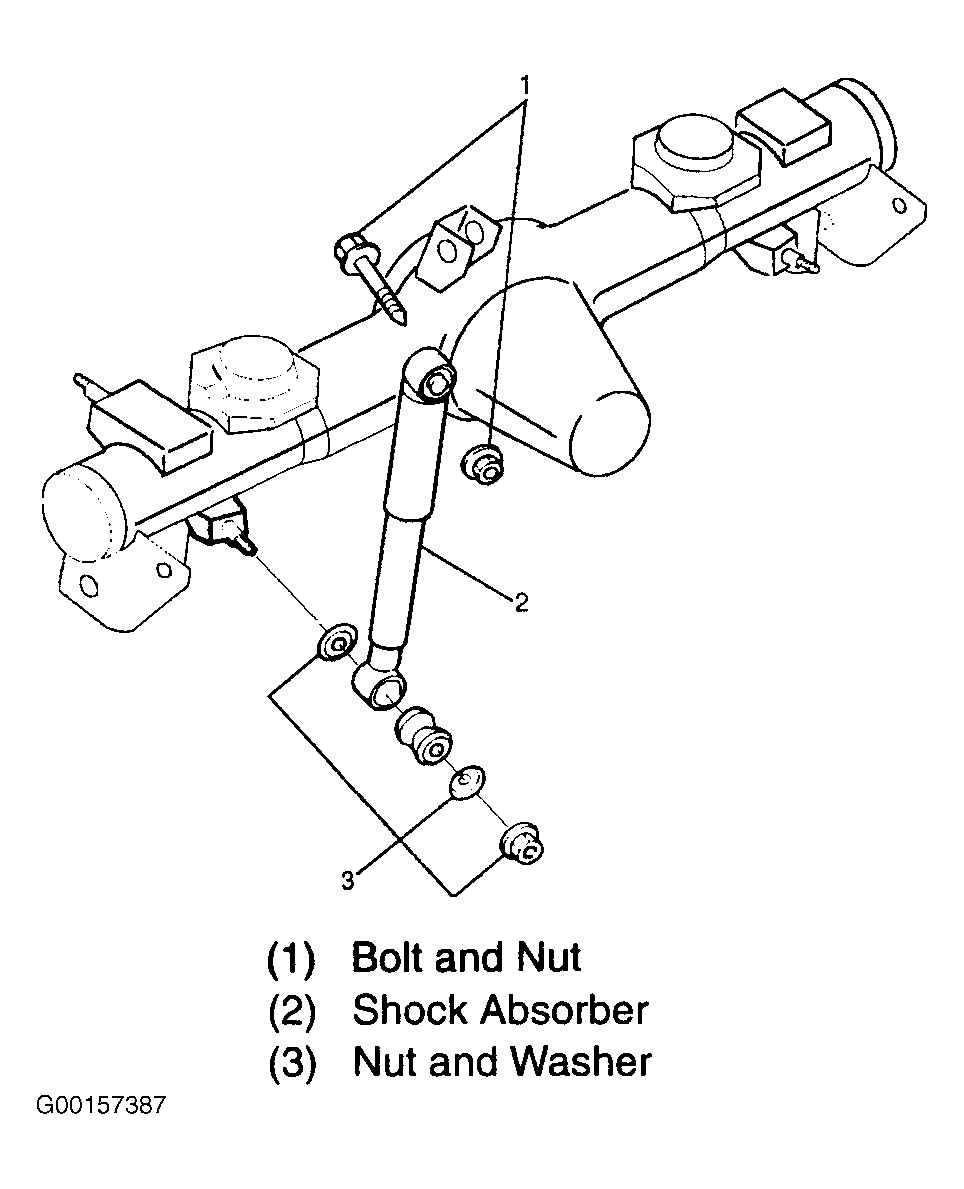

Fig 1: Exploded View Of Shock Absorber Assembly
G00157387Courtesy of ISUZU MOTOR CO.
