Removal & Installation (Passenger-Side)

  1. Before proceeding, see SERVICE PRECAUTIONS  . Disable passenger-side air bag. See DISABLING & ACTIVATING AIR BAG SYSTEM  .

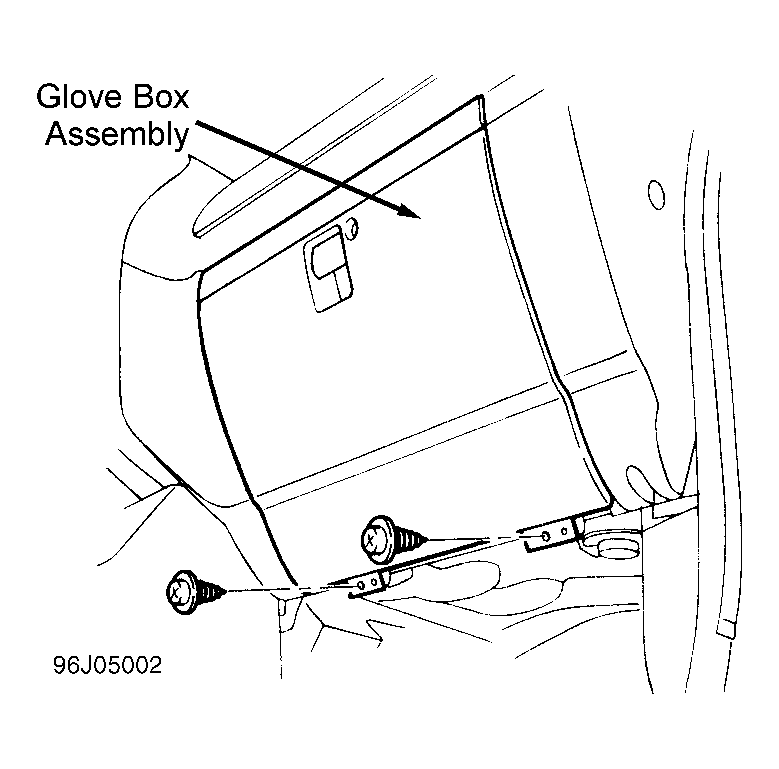

  2. Remove gear shift knob, front and rear console assembly and disconnect harness connector. Remove Electronic Control Module (ECM) and SDM cover. Remove glove box assembly with lid and remove glove box cover. See Figure .
  3. Remove instrument panel assist side lower cover. Disconnect engine hood opener lever and remove instrument panel door side lower cover. Remove lower cluster with ashtray. Remove meter cluster assembly and disconnect harness connector. Remove instrument panel lower center cover.
  4. Disconnect passenger-side air bag assembly harness connector. See Fig 1 . Remove air bag assembly mounting bolts and nuts. Remove air bag assembly.
  5. To install, reverse removal procedure. Tighten air bag assembly mounting nuts and bolts to 52 INCH lbs. (6 N.m). Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Check system for proper operation. See SYSTEM OPERATION CHECK  .

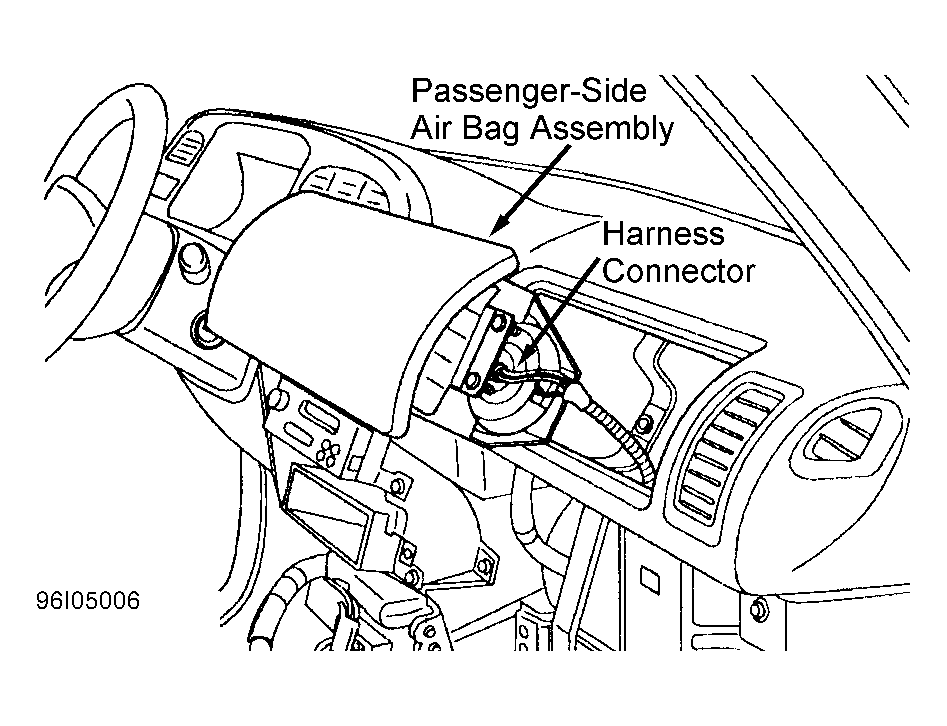

Fig 1: Removing & Installing Passenger-Side Air Bag Assembly
G96I05006Courtesy of ISUZU MOTORS LIMITED
