Removal & Installation (Driver-Side)
- Before proceeding, see SERVICE PRECAUTIONS
. Disable driver-side air bag. See DISABLING & ACTIVATING AIR BAG SYSTEM

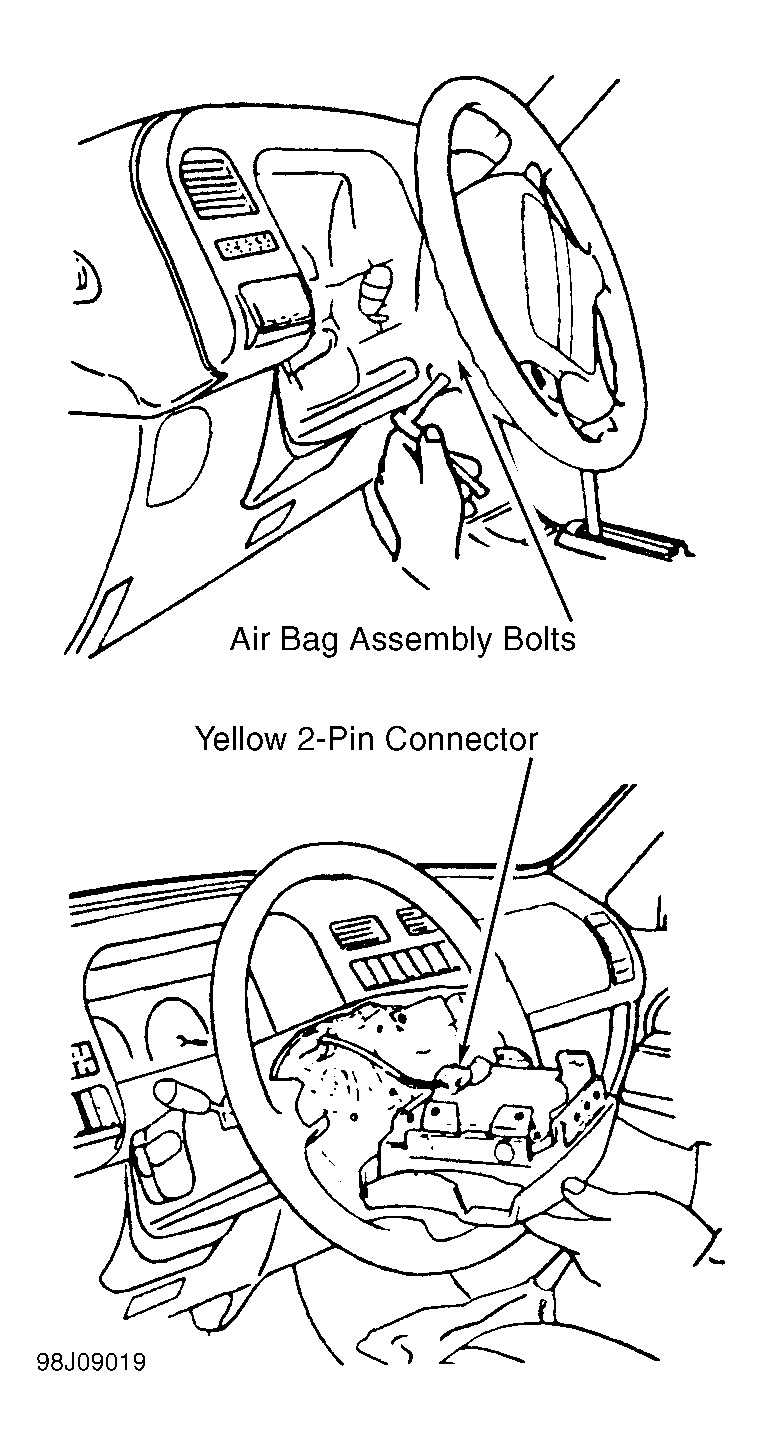

. Loosen air bag assembly mounting bolts from behind steering wheel assembly using a Torx driver. Disconnect driver-side air bag 2-pin connector and remove air bag assembly.
- To install, reverse removal procedure. Pass wire harness through wire protector tabs on air. Secure air bag assembly with new Torx bolts. See Fig 1
. Tighten Torx bolts to 69 INCH lbs. (8 N.m). Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM
. Check system for proper operation. See SYSTEM OPERATION CHECK
.
Courtesy of ISUZU MOTORS LIMITED
