Diagnostic Chart Step References

NOTE: Following step references refer to test step numbers on diagnostic chart. For circuit number and wire color identification, see WIRING DIAGRAMS .

2) This test checks for open in IGNITION 1 circuit to SDM.
3) This test checks for voltage of IGNITION 1.
4) This test checks if malfunction is short to ground in circuit IB04.

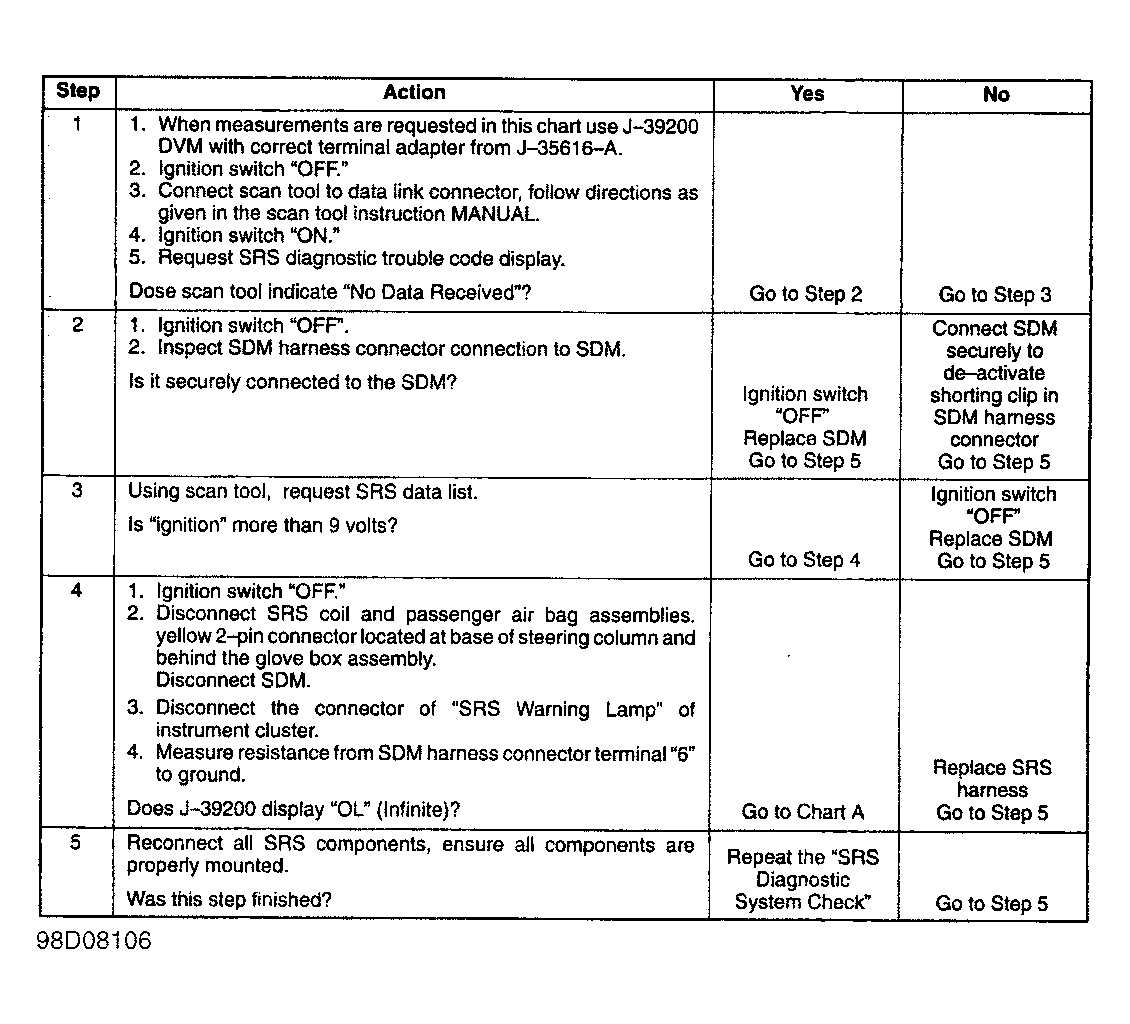

Fig 1: Chart B - Air Bag Warning Light Comes On Steadily

Courtesy of ISUZU MOTORS LIMITED
