Serpentine Belt Routing Hombre (4.3L) 1997-98

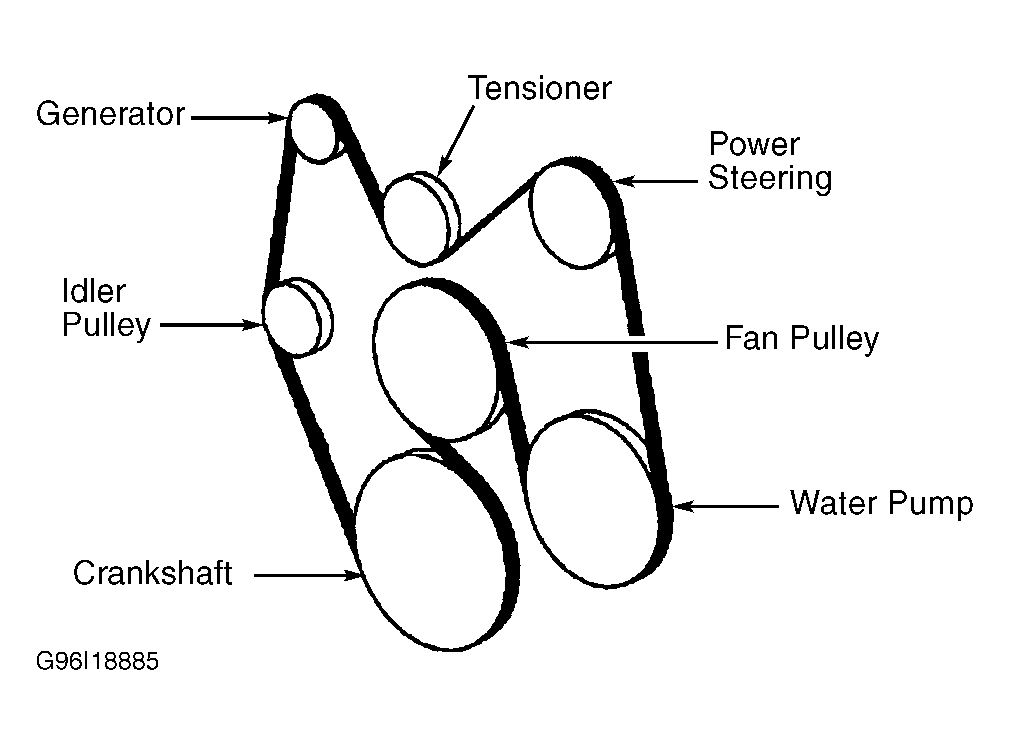

Fig 1: Serpentine Belt Routing - Hombre (4.3L) W/Power Steering - 1997-98
G96I18885Courtesy of ISUZU MOTOR CO.

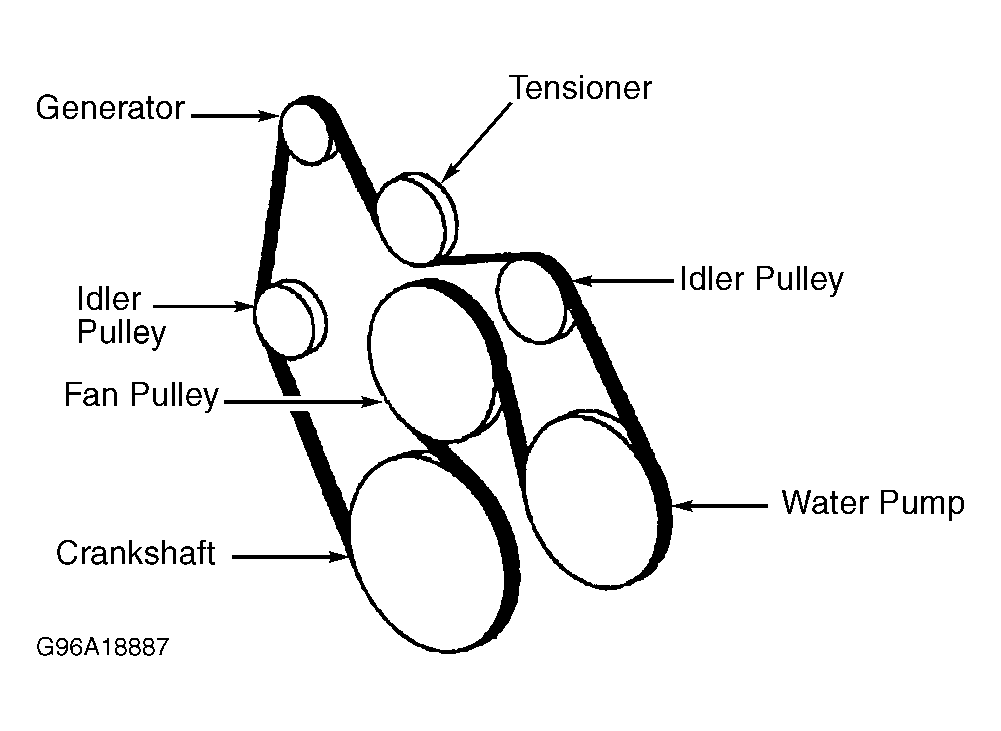

Fig 2: Serpentine Belt Routing - Hombre (4.3L) Without Power Steering - 1997-98
G96A18887Courtesy of ISUZU MOTOR CO.
