Serpentine Belt Routing Hombre (2.2L) 1997-98

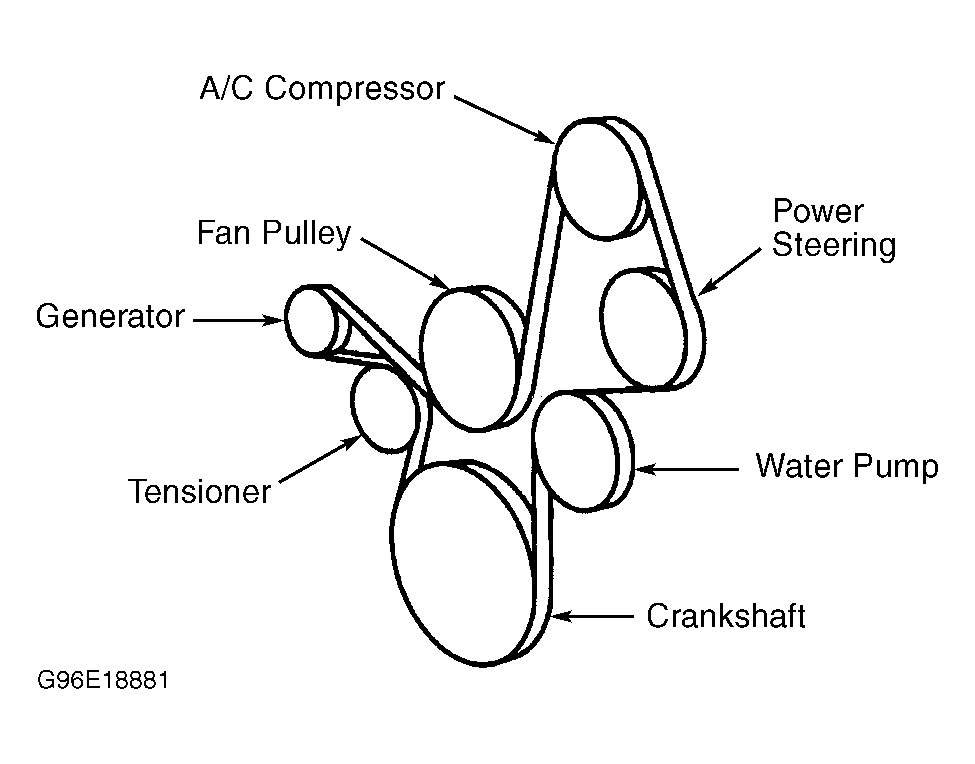

Fig 1: Serpentine Belt Routing - Hombre (2.2L) W/Power Steering - 1997-98
G96E18881Courtesy of ISUZU MOTOR CO.

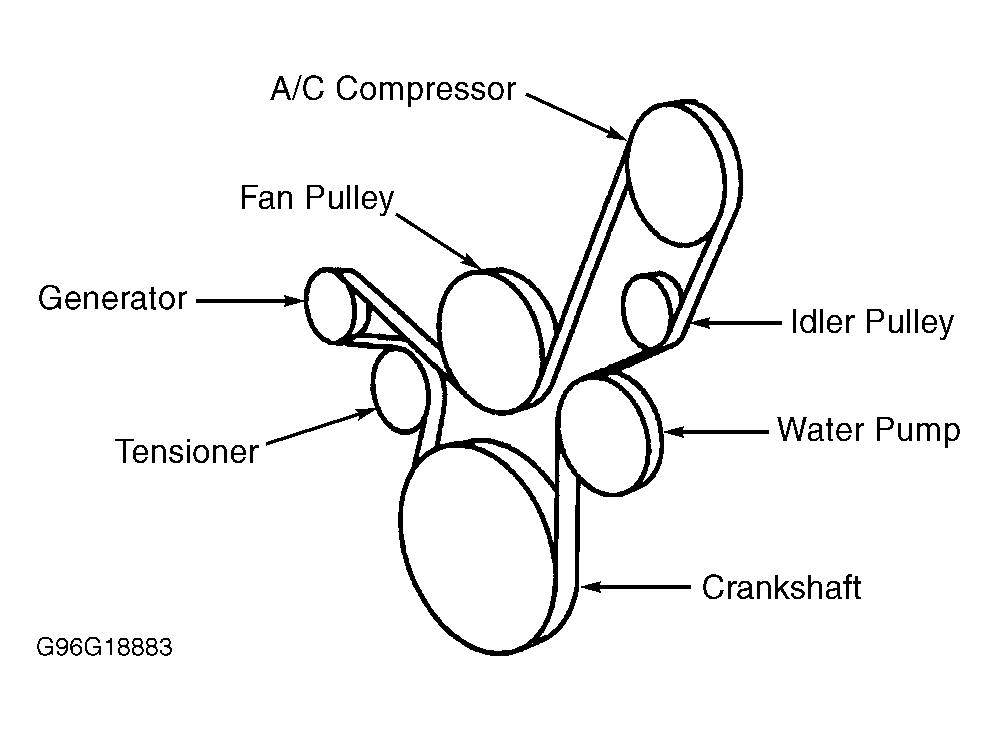

Fig 2: Serpentine Belt Routing - Hombre (2.2L) Without Power Steering - 1997-98
G96G18883Courtesy of ISUZU MOTOR CO.
