Drive Belt Routing - Passport (2.6L & 3.2L) & Rodeo (2.6L & 3.2L) - 1997

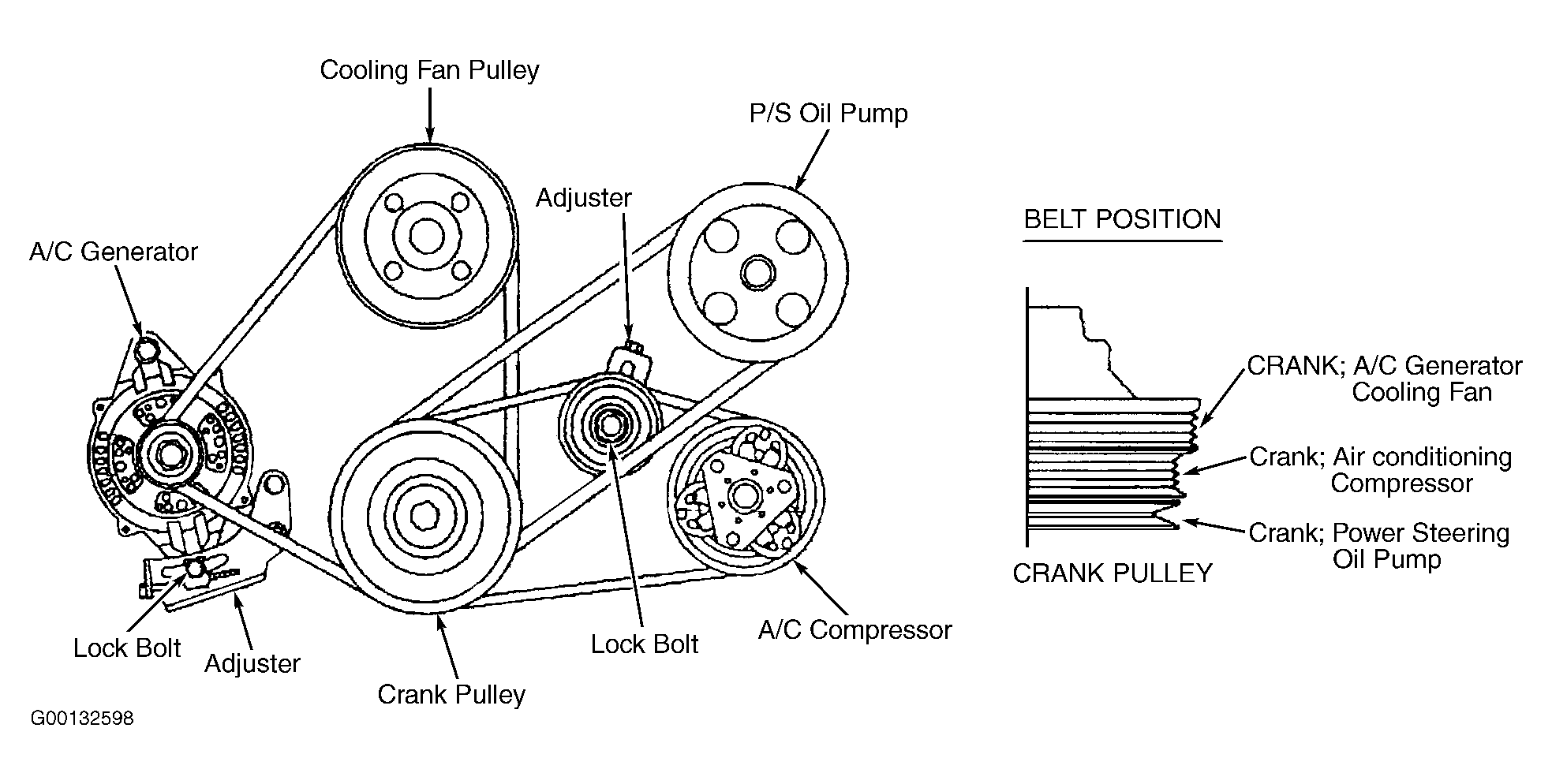

Fig 1: Drive Belt Routing - Passport (2.6L & 3.2L) & Rodeo (2.6L & 3.2L) - 1997

G00132598

Courtesy of ISUZU MOTOR CO.
