Drive Belt Routing - Amigo (2.2L & 3.2L), Passport (3.2L), Rodeo (3.2L), SLX (3.5L) & Trooper (3.5L) - 1998

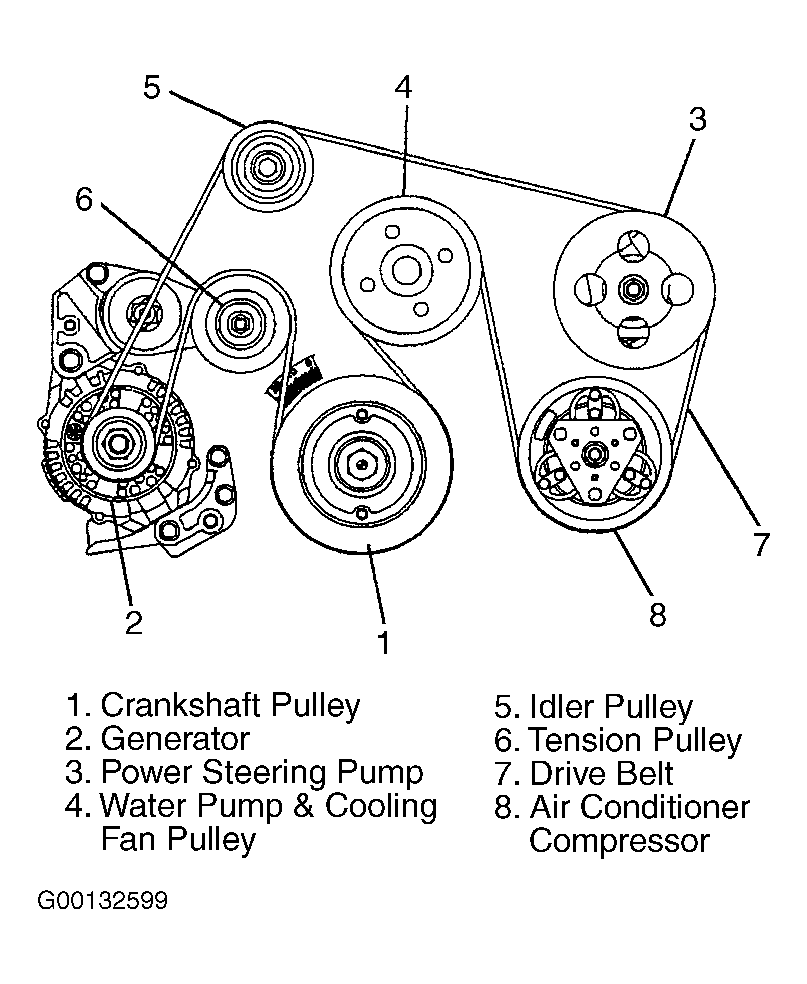

Fig 1: Drive Belt Routing - Amigo (2.2L & 3.2L), Passport (3.2L), Rodeo (3.2L), SLX (3.5L) & Trooper (3.5L) - 1998
G00132599Courtesy of ISUZU MOTOR CO.
