Axle Shaft & Bearing: Installation

Install NEW oil seal into bearing holder and install bearing holder onto shaft. Press new axle bearing onto axle shaft. Use press to seat axle shaft into bearing holder until snap ring can be installed.

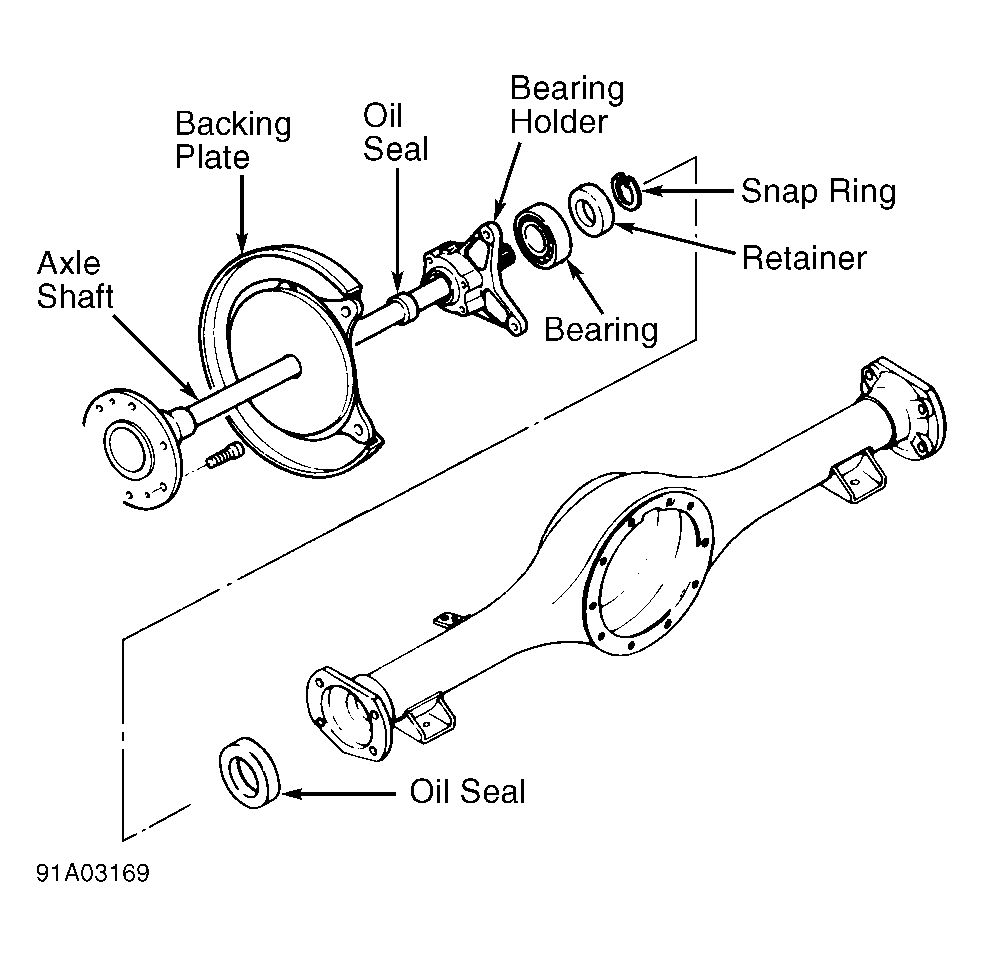

Fig 1: Exploded View Of Rear Axle Shaft

Courtesy of ISUZU MOTOR CO.
