Adjustments (LSD)

  1. Measure steel plate and friction disc end play. Adjustment can be made by selecting friction disc thicknesses.
  2. End play is calculated by using equation (("A" - "B") + "C") - ("D" + "E") = "X"
    • "A" - Depth of front differential cage contact surface to differential cage inner bottom. See Fig 1 .
    • "B" - Depth of front differential cage contact surface to outer flange.
    • "C" - Depth of rear differential cage contact surface to differential cage inner bottom.
    • "D" - Total thickness of pinion, pinion shaft and side gear assembly mounted in pressure ring, with steel plates and friction discs attached. See Fig. 7.
    • "E" - Total thickness of all 4 spacers.
    • "X" - End Play.

    See LIMITED SLIP DIFFERENTIAL FRICTION DISC & PLATE END PLAY ADJUSTMENT  table.

    LIMITED SLIP DIFFERENTIAL FRICTION DISC & PLATE END PLAY ADJUSTMENT

    Application In. (mm)
    "A" - "B" 3.17 (80.5)
    "C" .41 (10.4)
    "E" .069 (1.75)
    "X" .002-.008 (.05-.20)

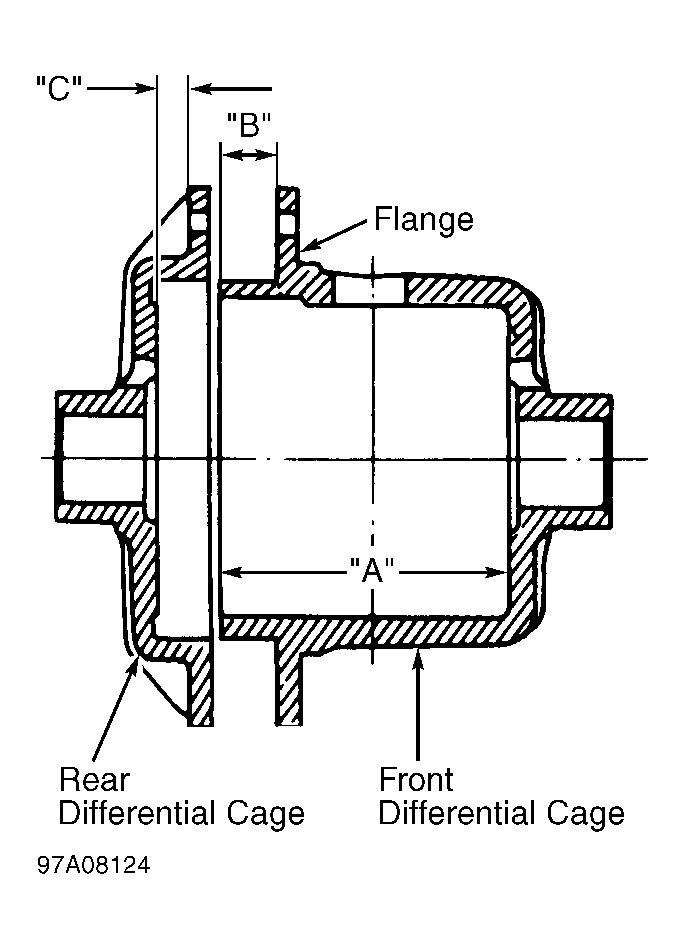

    Fig 1: Measuring Front & Rear Differential Cage
    G97A08124Courtesy of ISUZU MOTOR CO.

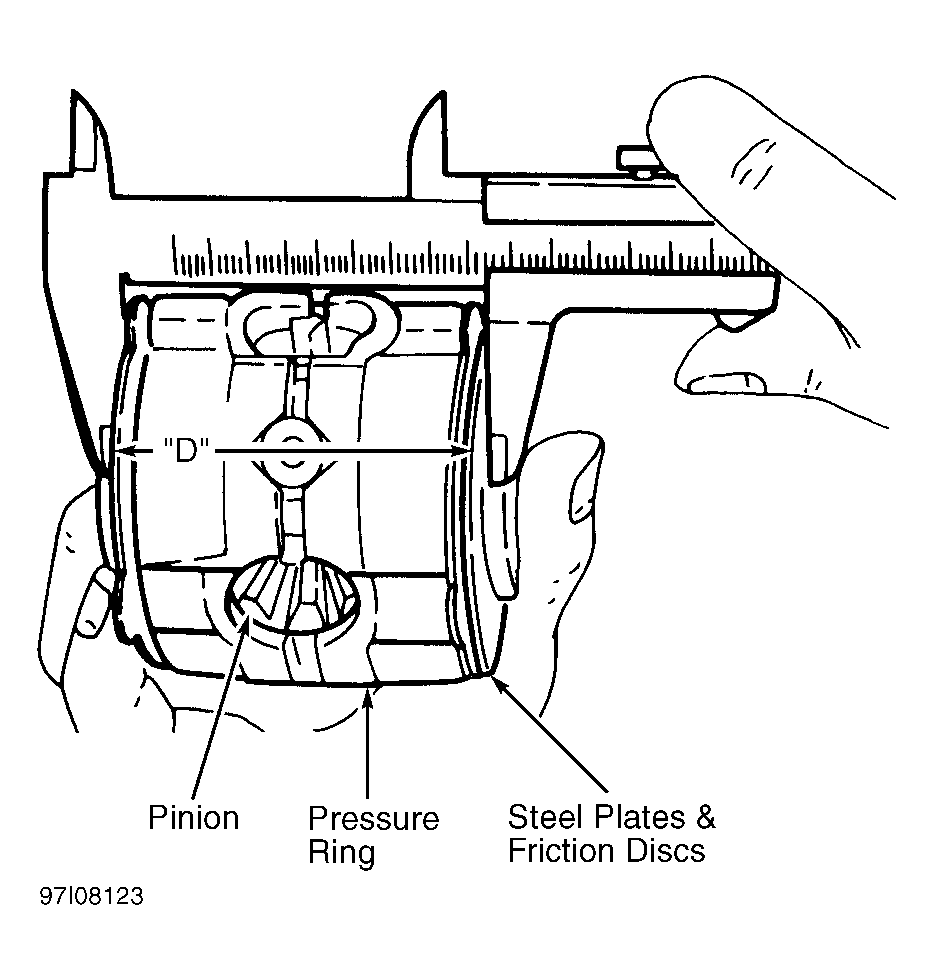

    Fig 2: Measuring Pinion Assembly With Steel Plates & Friction Discs
    G97I08123Courtesy of ISUZU MOTOR CO.

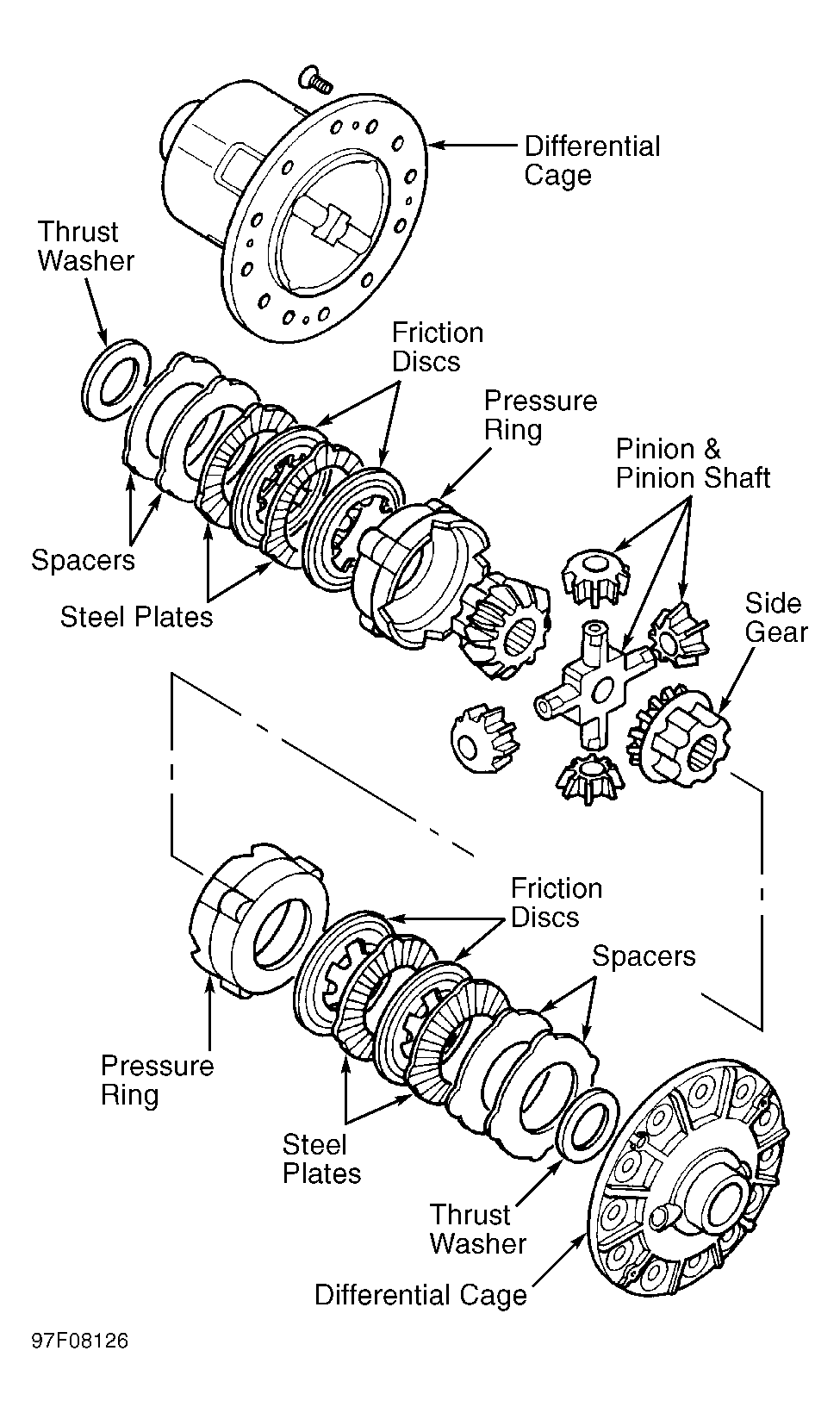

  3. Using equation, select appropriate friction discs and steel plates to correctly adjust end play while keeping number of friction discs and steel plates to specification. See Figure .
  4. Measure side gear backlash in direction of shaft. Adjustment can be made by selecting thrust washer thicknesses. Thrust washers are available in three sizes; .059" (1.50 mm), .063" (1.60 mm), .067" (1.70 mm).
  5. Backlash is calculated by using equation ("A" - "B") + "C" - "H" = "X"
    • "A" - Depth of front differential cage contact surface to differential cage inner bottom. See Fig 1 .
    • "B" - Depth of front differential cage contact surface to outer flange.
    • "C" - Depth of rear differential cage contact surface to differential cage inner bottom.
    • "H" - Total thickness of pinion, pinion shaft and side gear assembly mounted in pressure ring, with thrust washers attached. See Fig 3 .
    • "X" - Backlash.

    See LIMITED SLIP DIFFERENTIAL FRICTION DISC & PLATE END PLAY ADJUSTMENT  table.

    LIMITED SLIP DIFFERENTIAL FRICTION DISC & PLATE END PLAY ADJUSTMENT

    Application In. (mm)
    "A" - "B" 3.23 (82.0)
    "C" .47 (11.9)
    "X" .002-.008 (.05-.20)
  6. Using equation, select appropriate thrust washers to correctly adjust backlash while keeping number of thrust washers to specification. See Figure . After implementing above equation, adjust backlash gap between back surface of pressure ring and thrust washers to .002" (.05 mm) or less.

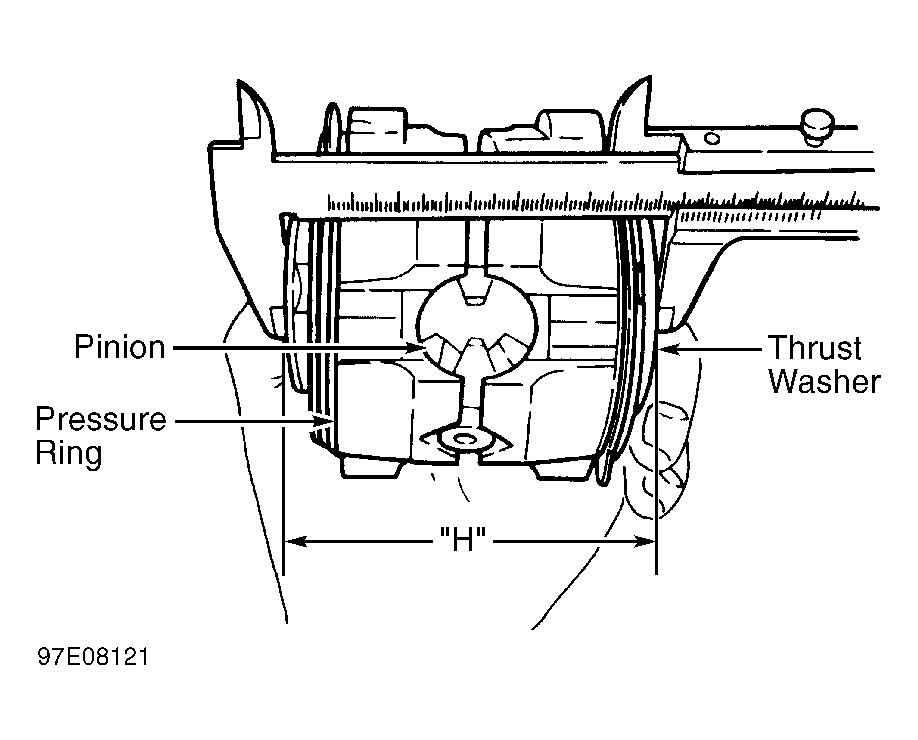

    Fig 3: Measuring Pinion Assembly With Trust Washers
    G97E08121Courtesy of ISUZU MOTOR CO.
