Amigo, Rodeo & Trooper

Turn SRS coil assembly clockwise to full stop, stop turning coil if resistance is felt. Return coil about 3 turns and align NEUTRAL marks. See Fig 1.

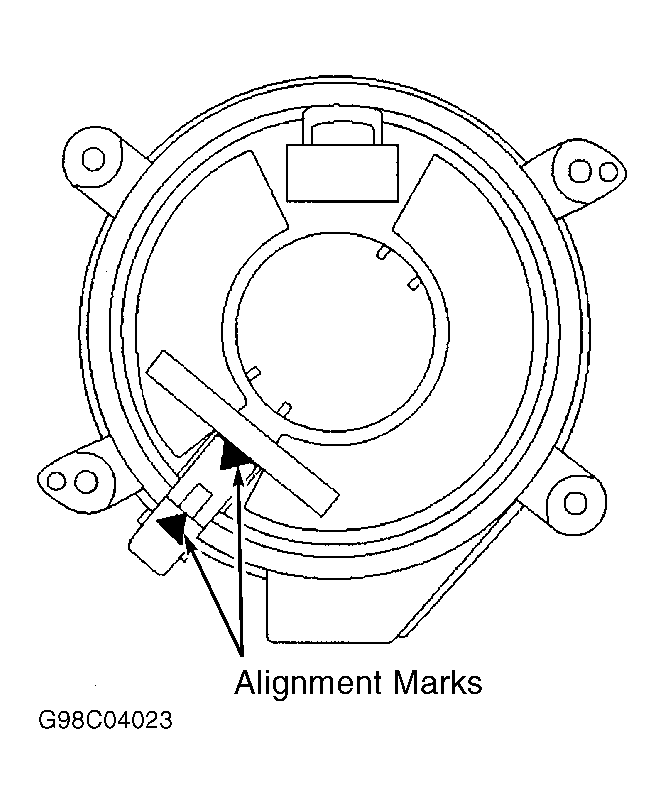

Fig 1: Centering SRS Coil Assembly (Amigo, Rodeo & Trooper)
G98C04023
