Automatic Locking Hub Without Shift-On-The-Fly System: Inspection

Measure inside diameter of housing assembly at .32" (8 mm) below "A". See Fig 1 . Inspect flange surface of "A" and "B" for excessive wear.
Using a feeler gauge, measure hold-out ring axial play of drive clutch assembly. See Fig 1 . Measure drive clutch assembly at dimensions "L" and "D." See Fig 2 and Fig 3 . Replace component if not within specification. See AUTOMATIC LOCKING HUB SPECIFICATIONS .

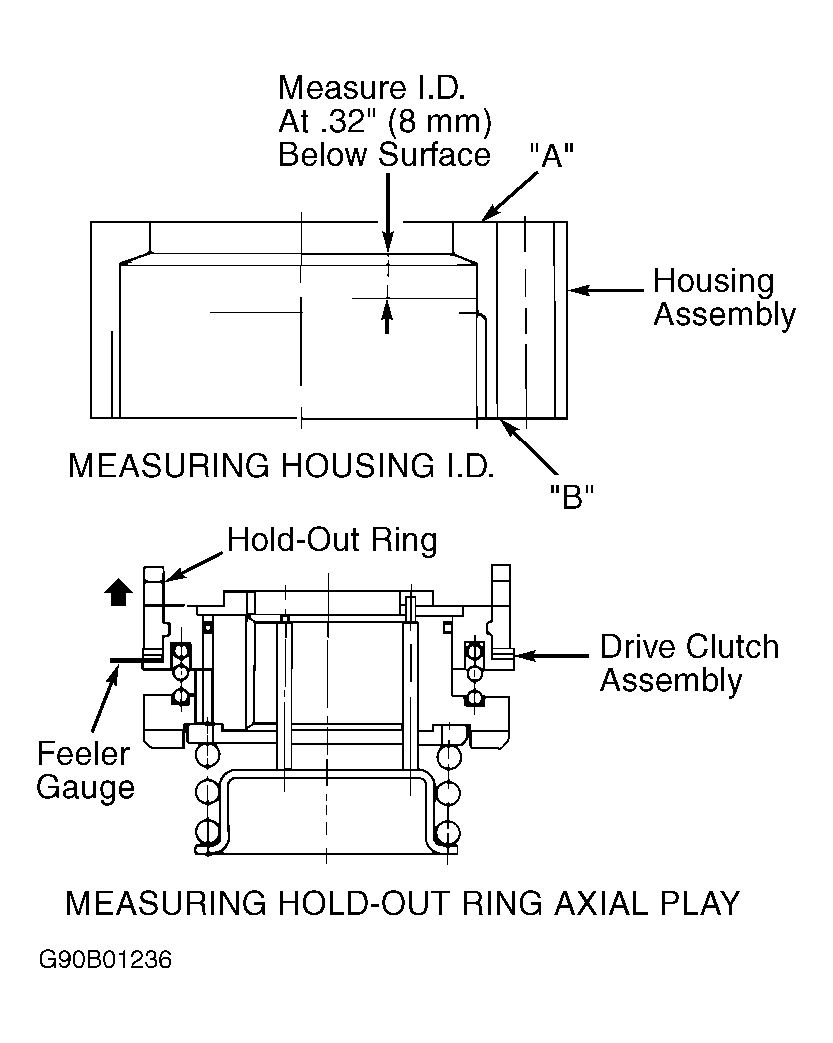

Fig 1: Measuring Housing Assembly Inside Diameter & Hold-Out Ring Axial Play

Courtesy of ISUZU MOTOR CO.

Fig 2: Measuring Drive Clutch Dimension

Courtesy of ISUZU MOTOR CO.

Fig 3: Measuring Drive Clutch Outside Diameter

Courtesy of ISUZU MOTOR CO.

AUTOMATIC LOCKING HUB SPECIFICATIONS

Application ⁽¹⁾

In. (mm)

Drive Clutch Dimension At "L"

.307-.323 (7.79-8.20)

Drive Clutch O.D. At "D"

2.54-2.55 (64.5-64.7)

Hold-Out Ring Axial Play

⁽²⁾ .016 (.40)

Housing I.D.

2.561-2.568 (65.05-65.23)

⁽¹⁾	Use illustrations for locations of measurements "D" and "L". See Fig 2 and Fig 3 .

⁽²⁾	Maximum measurement is given. Standard measurement is .012" (.3mm) or less.
