Description & Operation

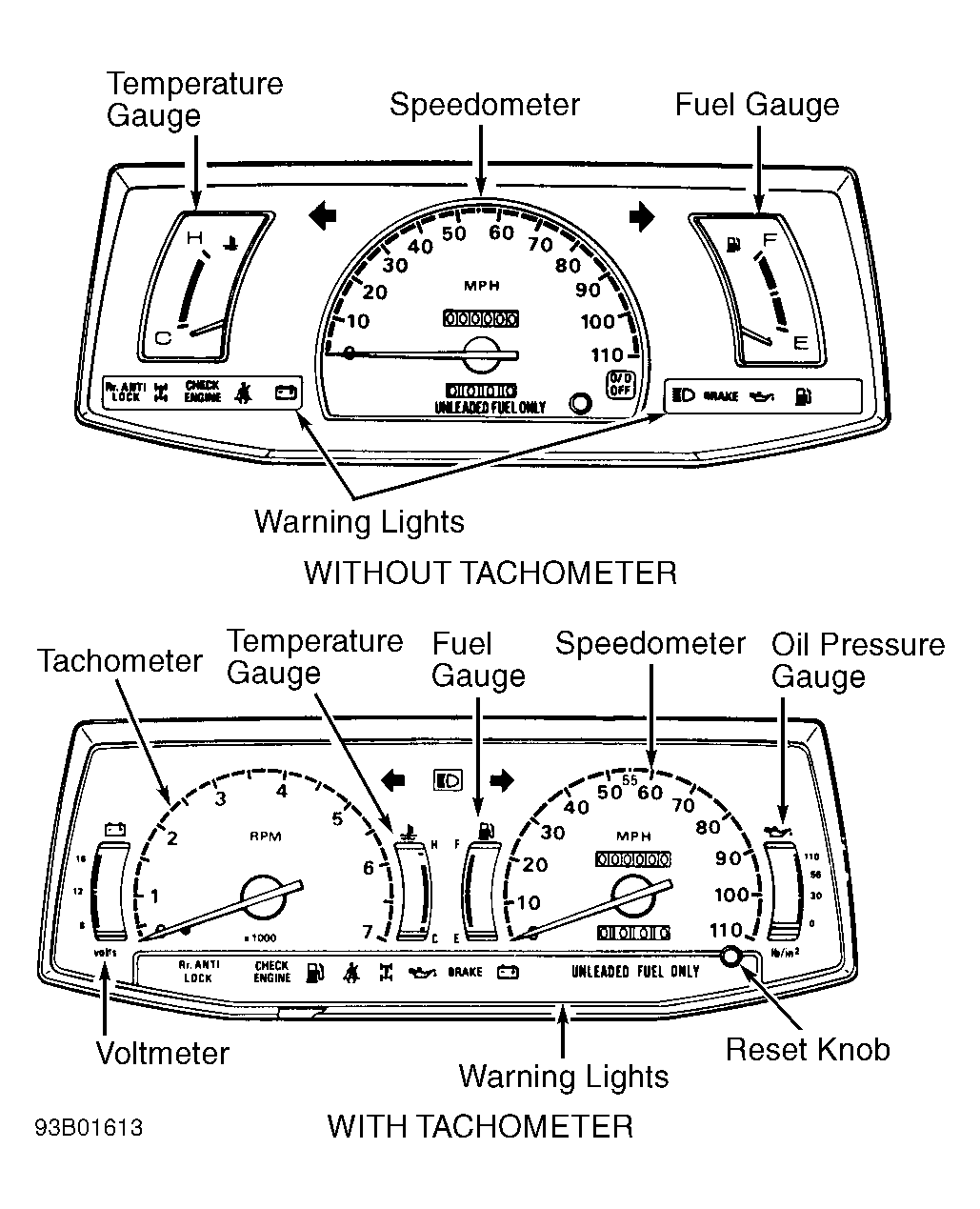

Instrument cluster consists of a speedometer, fuel gauge and temperature gauge. Tachometer, oil pressure gauge, and voltmeter are optional on some models. SeeFig 1 . All gauges use variable resistance sending units. Voltage regulator in the cluster ensures gauge readings stay constant as system voltage varies.
