Temperature Gauge

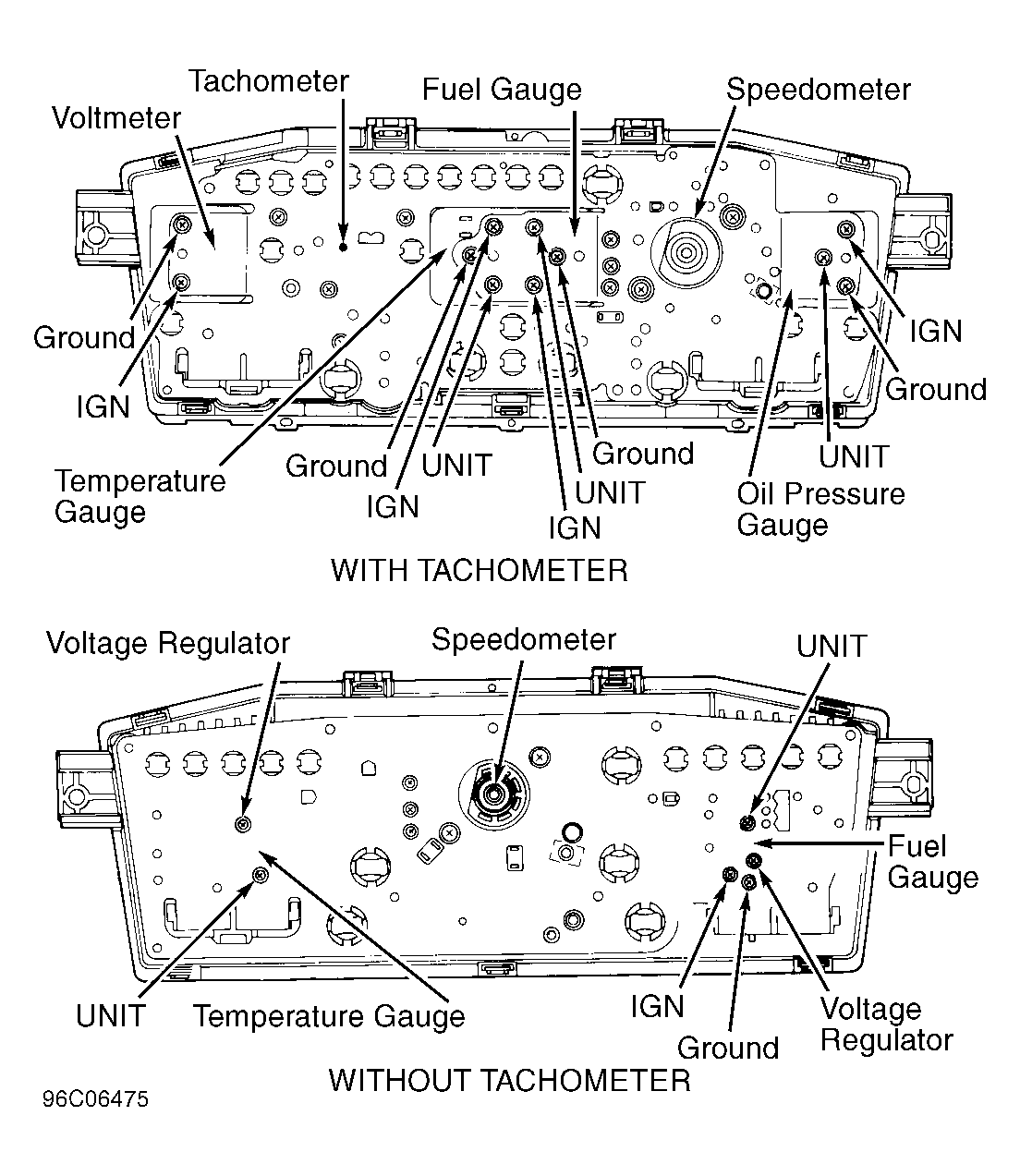

Remove instrument cluster from vehicle. Using ohmmeter, measure resistance between specified terminals. See TEMPERATURE GAUGE RESISTANCE . SeeFigure . If any resistance is not as specified, replace gauge.
TEMPERATURE GAUGE RESISTANCE
| Measuring Points | Ohms | |
|---|---|---|
| With Tachometer | ||
| IGN & Ground | 197 | |
| IGN & Unit | 88 | |
| Unit & Ground | 109 | |
| Without Tachometer | ||
| Regulator & Unit | 25 | |
