Transfer Rear Case Assembly (4WD): Disassembly

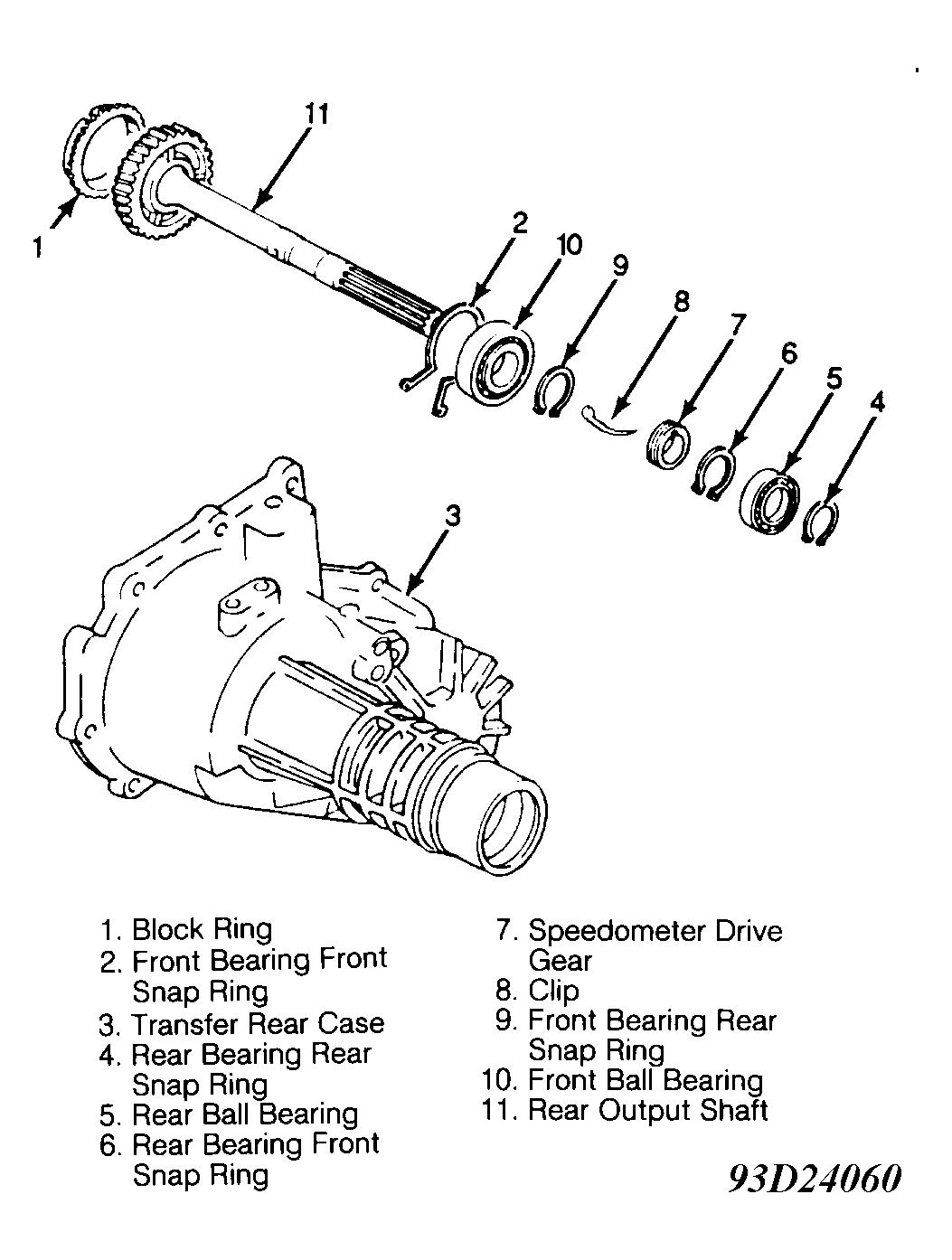

  1. Remove block ring. See Figure. Remove front bearing front snap ring and pull out rear output shaft assembly. Remove rear bearing rear snap ring. Press off rear bearing using Bearing Remover (J22912-01).
  2. Remove rear bearing front snap ring, speedometer drive gear, clip and front ball bearing rear snap ring. Press off front ball bearing using bearing remover. Pry out rear oil seal using flat-blade screwdriver.
