MAINSHAFT Assembly: Disassembly

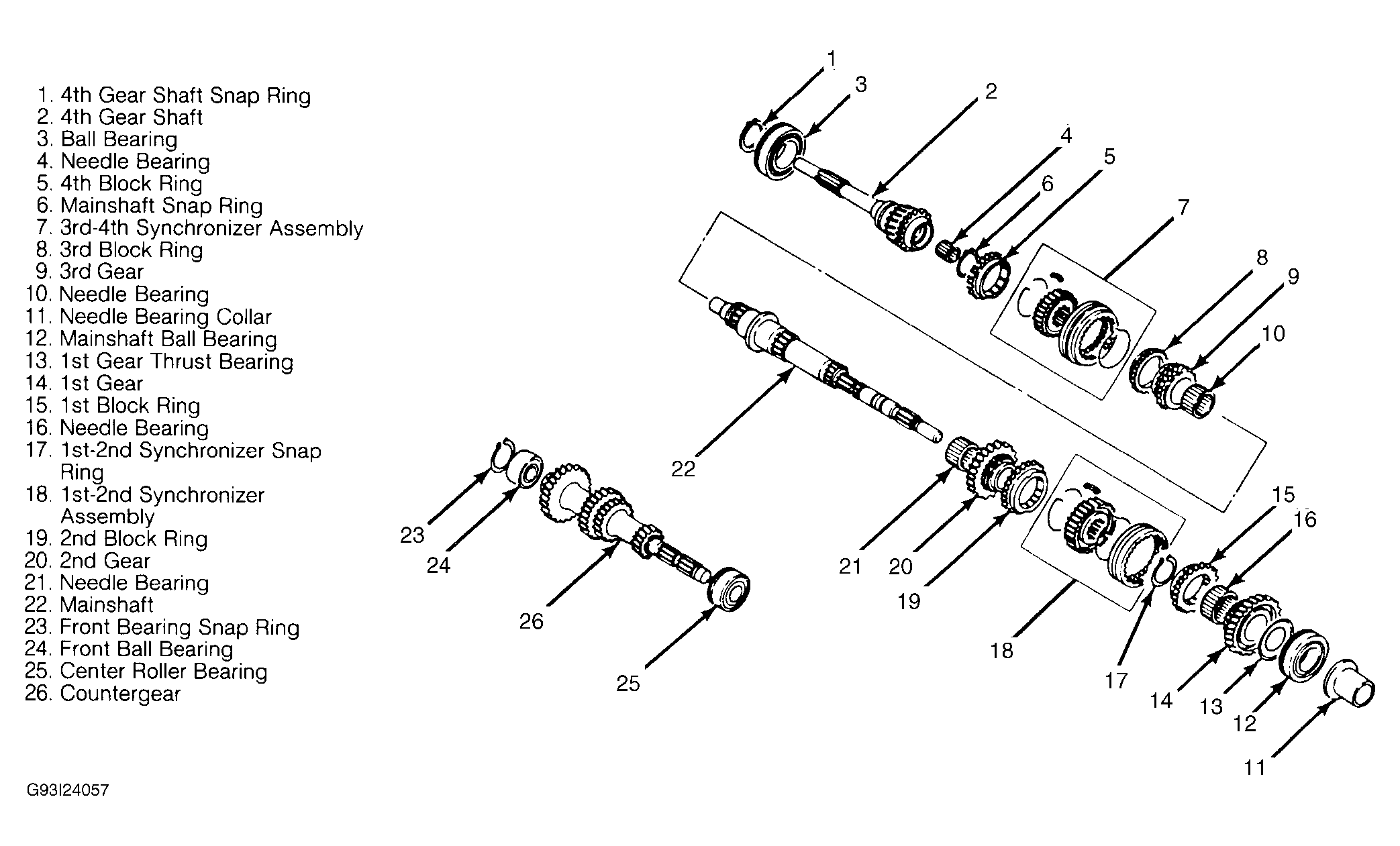

  1. Remove needle bearing and 4th block ring. See Figure. Remove mainshaft snap ring. Press off 3rd-4th synchronizer assembly using Bearing Remover (J22912-01). Remove 3rd block ring and 3rd gear needle bearing.
  2. Press off needle bearing collar, mainshaft ball bearing, 1st gear thrust bearing and 1st gear together using bearing remover. Remove 1st block ring, needle bearing and 1st-2nd synchronizer snap ring. Press off 1st-2nd synchronizer assembly, 2nd block ring and 2nd gear together using bearing remover. Remove needle bearing.
