Steering Knuckle: Installation

To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS  . Adjust wheel bearings. See WHEEL BEARING PRELOAD  under ADJUSTMENTS & INSPECTION.

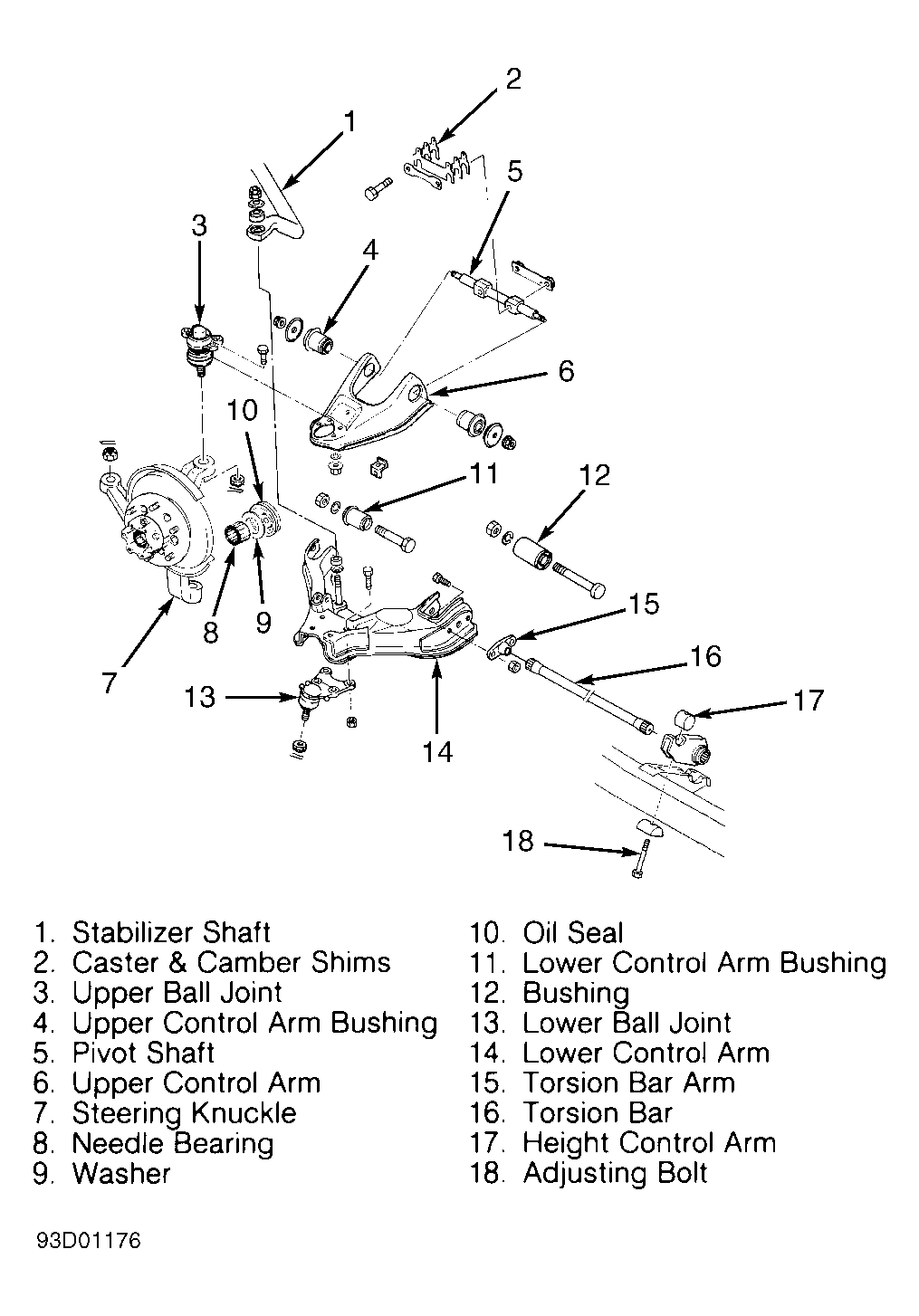

Fig 1: Exploded View Of Front Suspension (Trooper)

Courtesy of ISUZU MOTOR CO.
