Impulse & Stylus

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1991 Isuzu Trooper, 1991 Isuzu Stylus, 1991 Isuzu Rodeo, 1991 Isuzu Pickup, and 1991 Isuzu Impulse. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place transaxle in Neutral. Rotate gearshift cable adjusting nuts until gearshift is at right angle to case when viewed from side. See Fig 1 . Gearshift should be in a vertical position and not slanted.
  2. Rotate select cable adjusting nuts until shift lever is at right angle to case when viewed from rear of case. After shift lever is properly positioned, tighten all adjusting nuts to 17 ft. lbs. (23 N.m).

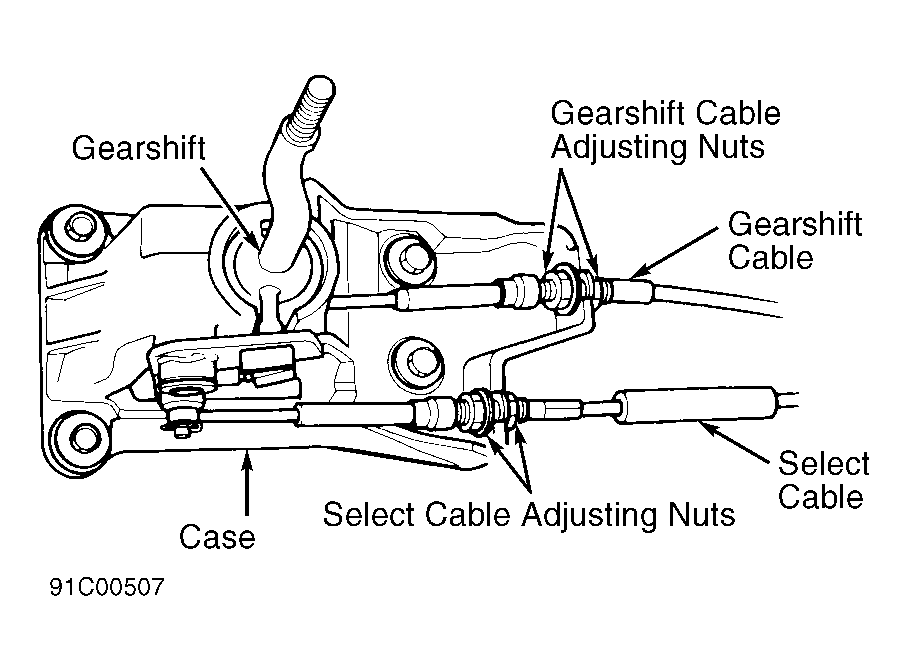

    Fig 1: Adjusting Gearshift Cables (Impulse & Stylus)
    G91C00507Courtesy of ISUZU MOTOR CO.
