Vacuum Switching Valve (VSV)

VSV is controlled by ECM to supply vacuum signal to canister purge, fuel pressure regulator, air management valve and EGR valve, under specified conditions.

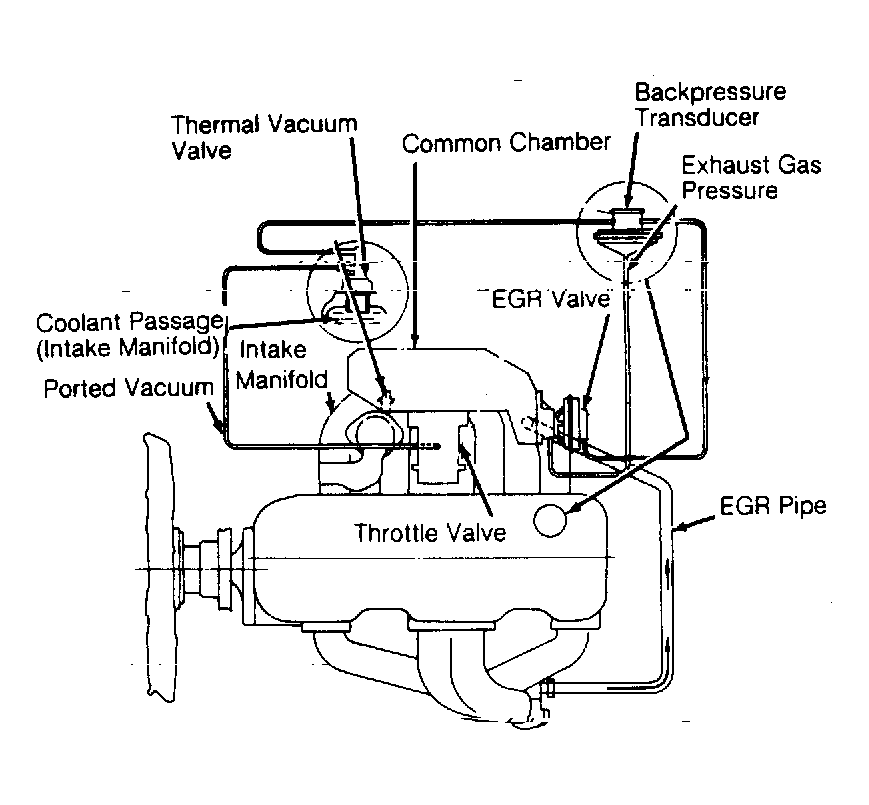

Fig 1: Identifying EGR System Components (Typical)
G122088Courtesy of ISUZU MOTOR CO.
