Drive Belt Routing - 2.6L (Amigo, Pickup, & Rodeo)

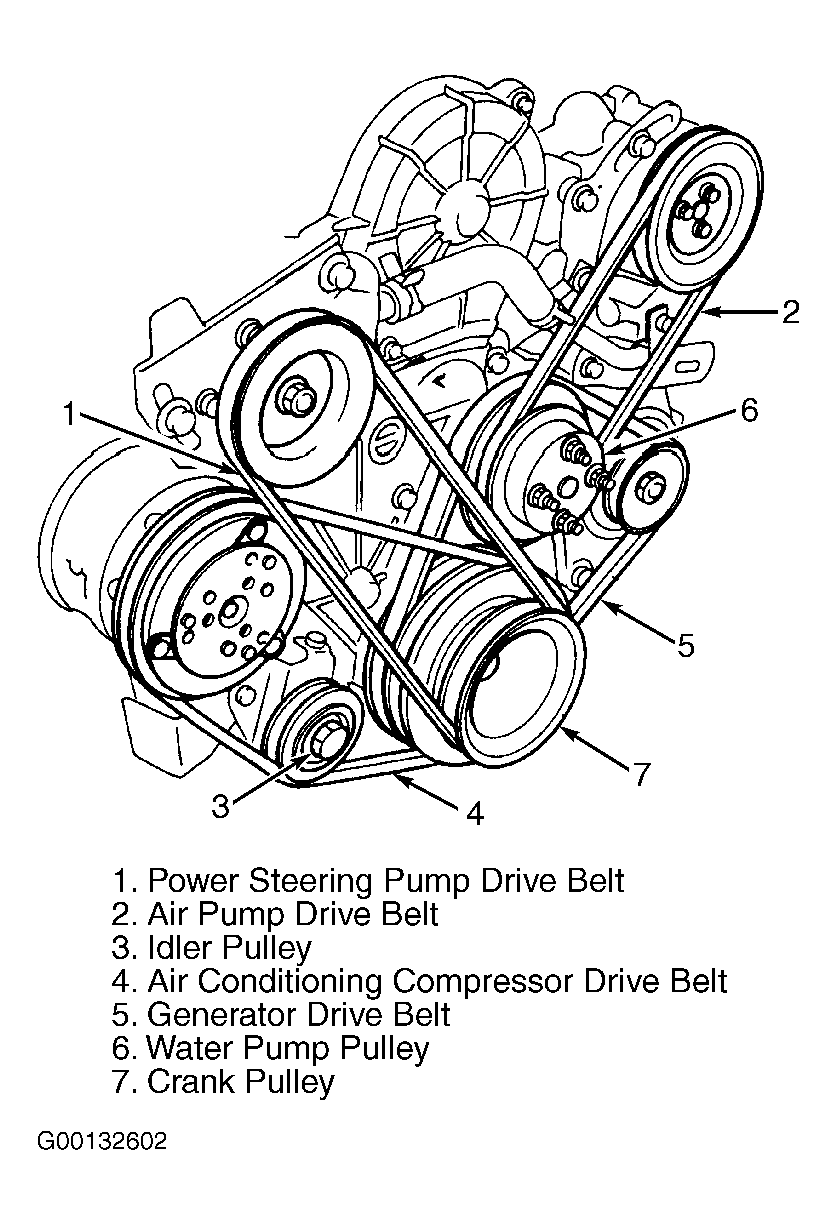

Fig 1: Drive Belt Routing - 2.6L (Amigo, Pickup, & Rodeo)

G00132602

Courtesy of ISUZU MOTOR CO.
