Universal Joint & Flange: Disassembly

  1. To aid in overhaul of U-joint assembly, refer to exploded view illustration. See Fig 1. Apply alignment marks on the yokes of the universal joint. See Fig 2.

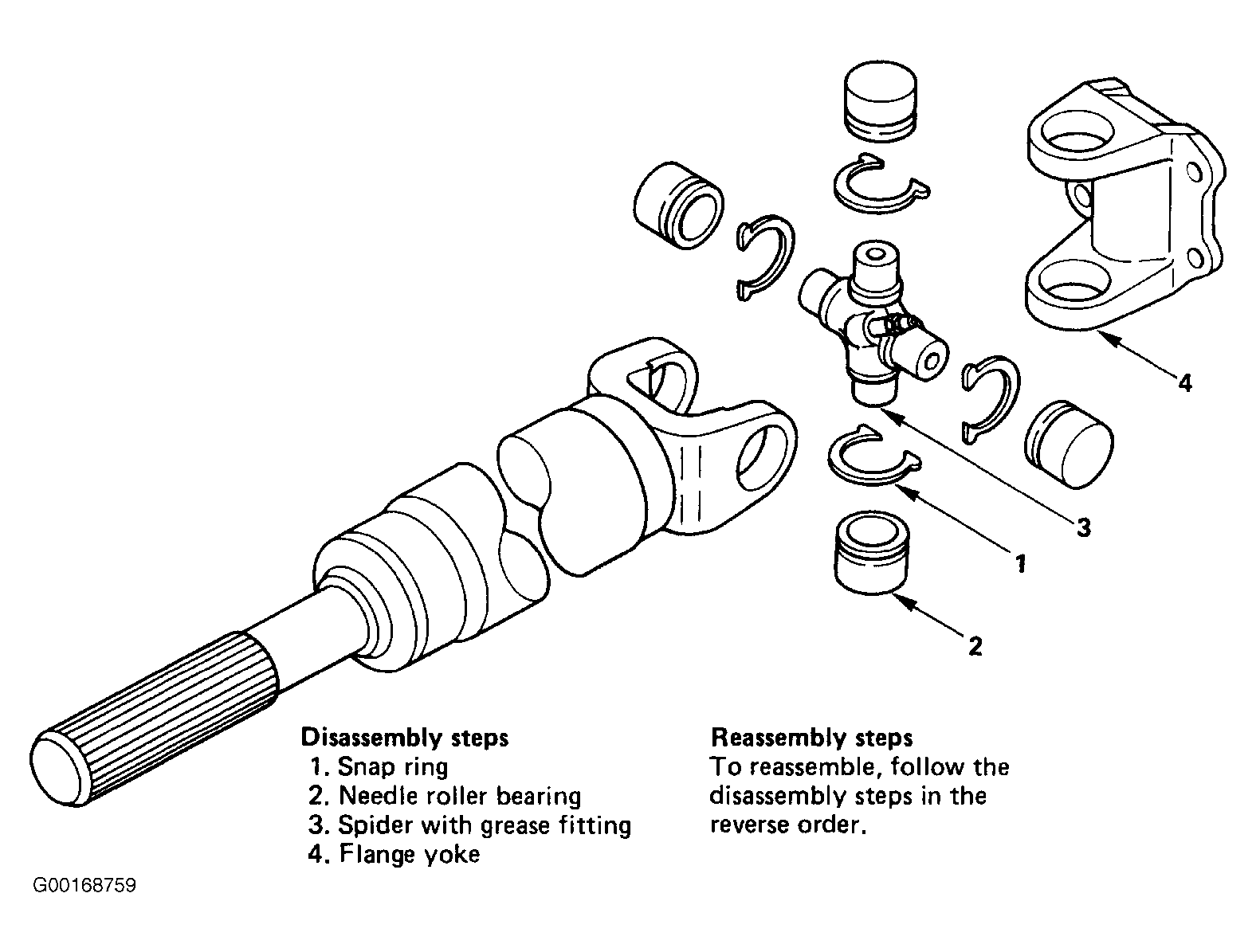

    Fig 1: Exploded View Of U-Joint Assembly
    G00168759Courtesy of ISUZU MOTOR CO.

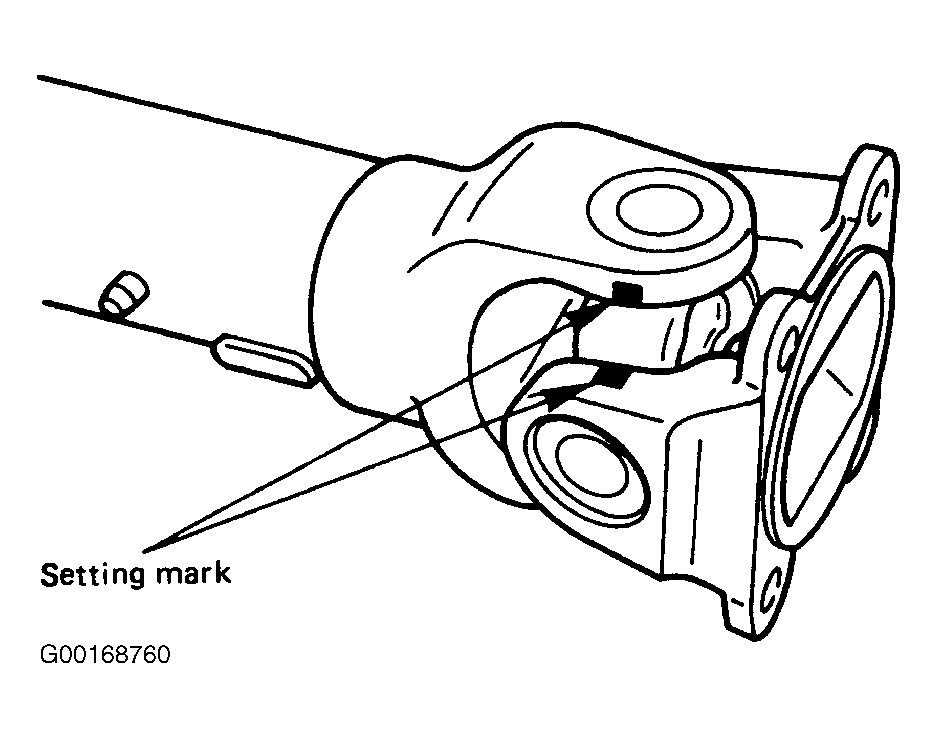

    Fig 2: Applying Setting Marks
    G00168760Courtesy of ISUZU MOTOR CO.
  2. Tap out the bearing by gently striking the shoulder of the yoke, using a mallet or a copper hammer. See Fig 3.
  3. Remove spider with grease fitting.
  4. Remove the flange yoke.
Fig 3: Removing U-Joint
G00168755Courtesy of ISUZU MOTOR CO.
