Front & Rear Disc Brake Caliper: Reassembly

Lubricate caliper piston seal ring with brake fluid. Install piston seal ring. Install NEW dust seal. Install dust seal ring (if equipped). Install caliper.

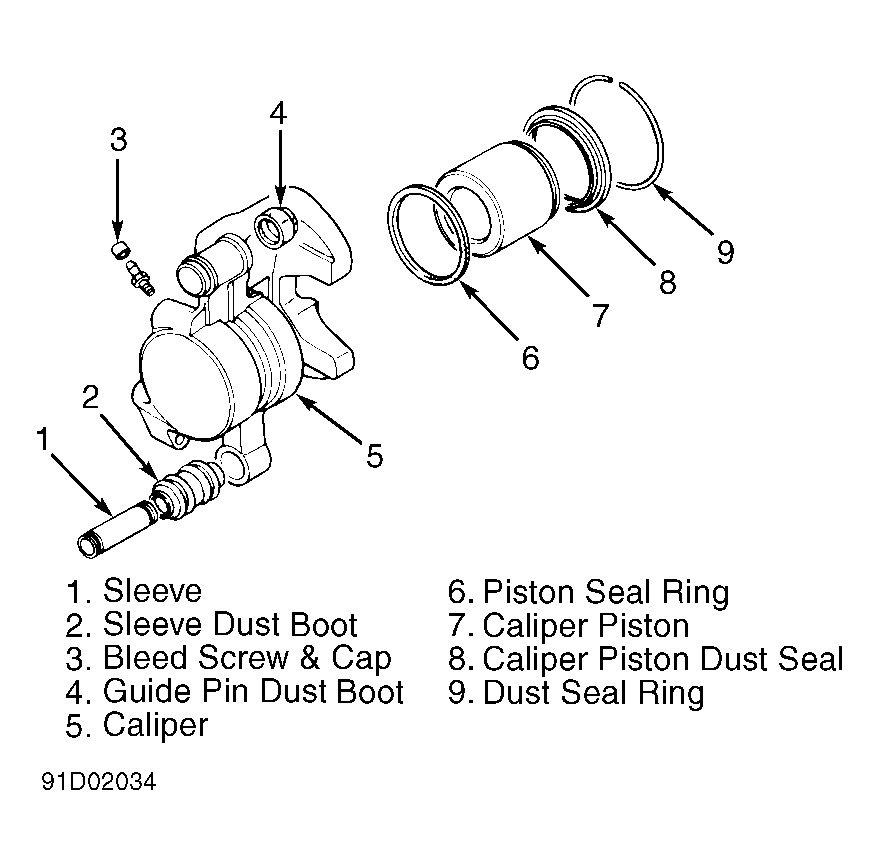

Fig 1: Exploded View Of Front Or Rear Caliper Assembly (Trooper)
G91D02034Courtesy of ISUZU MOTOR CO.
