Anti-Lock Light & Brake Light Self-Check, But Wheels Lock W/Hard Stop
Anti-Lock Light & Brake Light Self-Check, But Wheels Lock W/Hard Stop

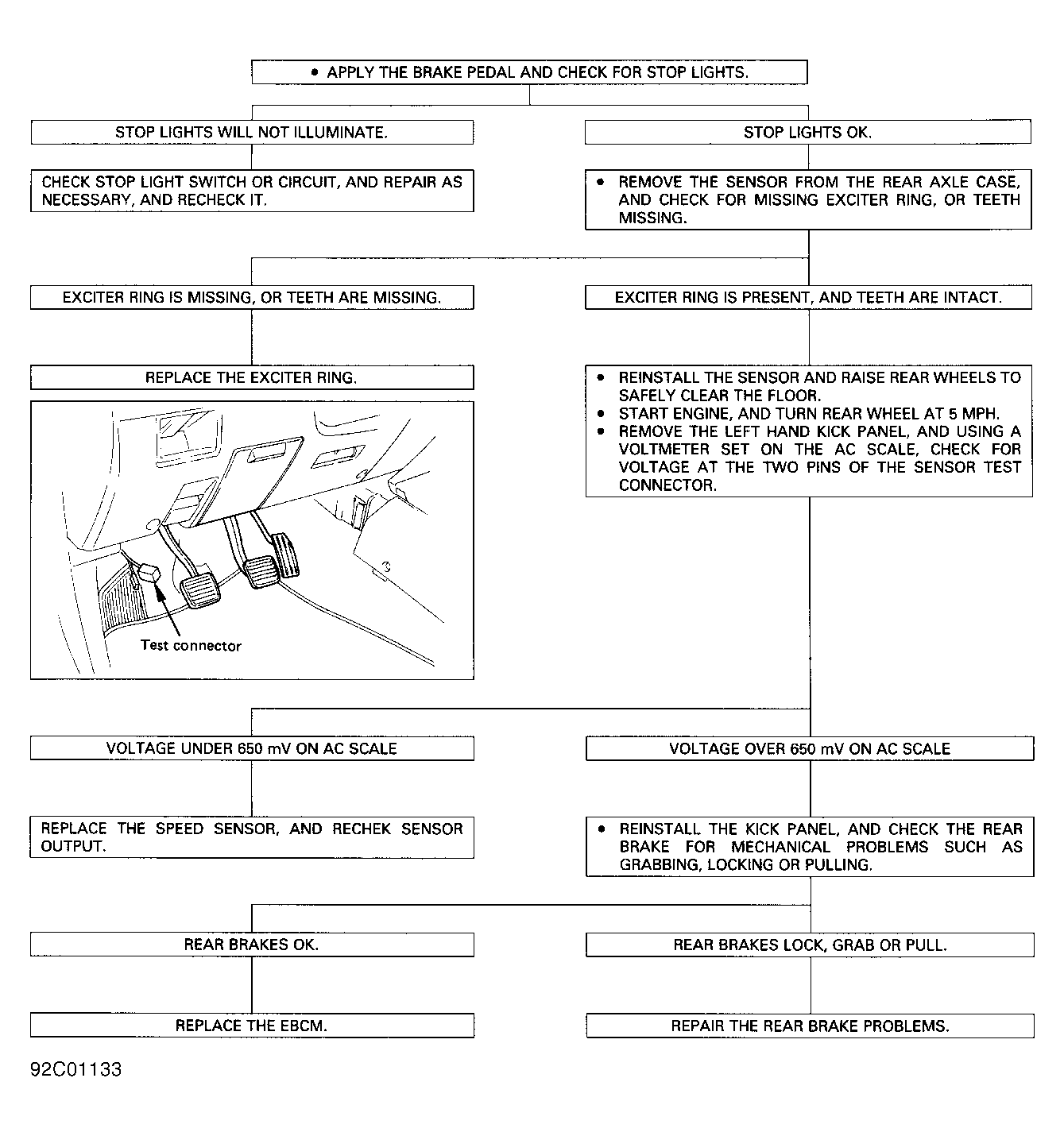

Fig 1: Anti-Lock Lt. & Brake Lt. Self-Check, But Wheels Lock W/ Hard Stop
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
