Anti-Lock Light & Brake Light On, No Diagnostic Codes Exist

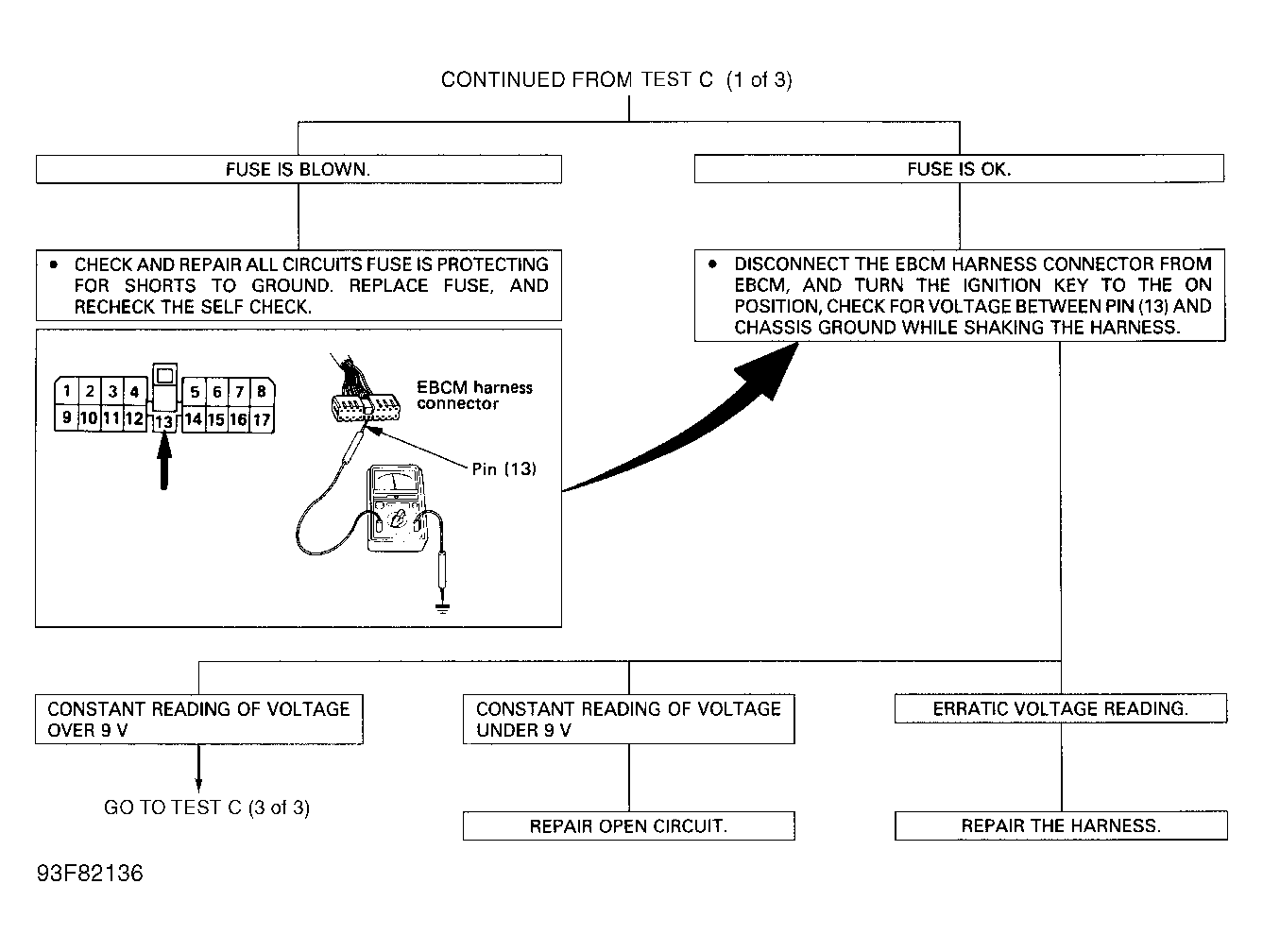

Fig 1: Anti-Lock Light & Brake Lt. On - 1 Of 3 (No Diag. Codes Exist)

Courtesy of ISUZU MOTOR CO.

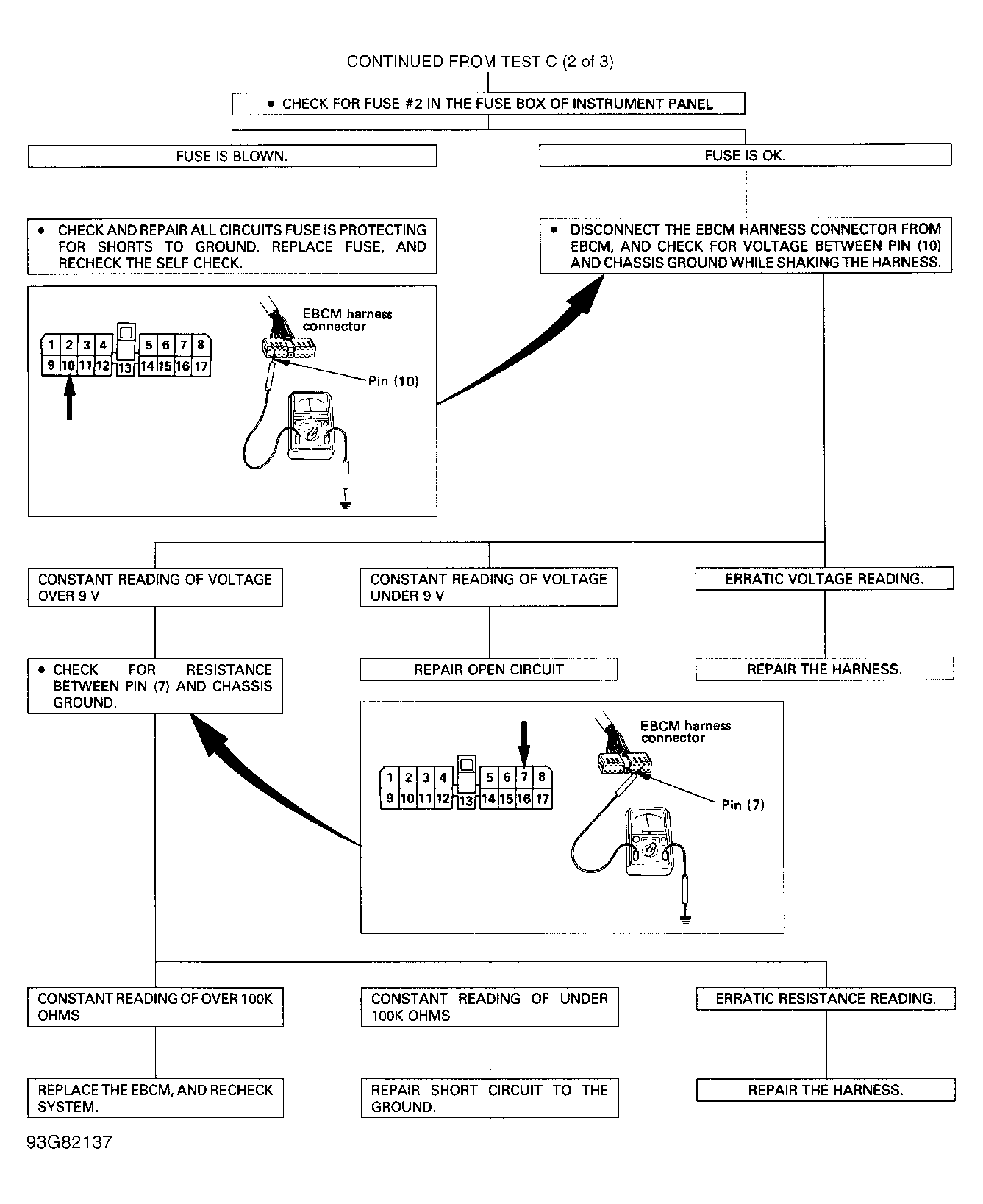

Fig 2: Anti-Lock Lt. & Brake Light On - 2 Of 3 (No Diag. Codes Exist)

Courtesy of ISUZU MOTOR CO.

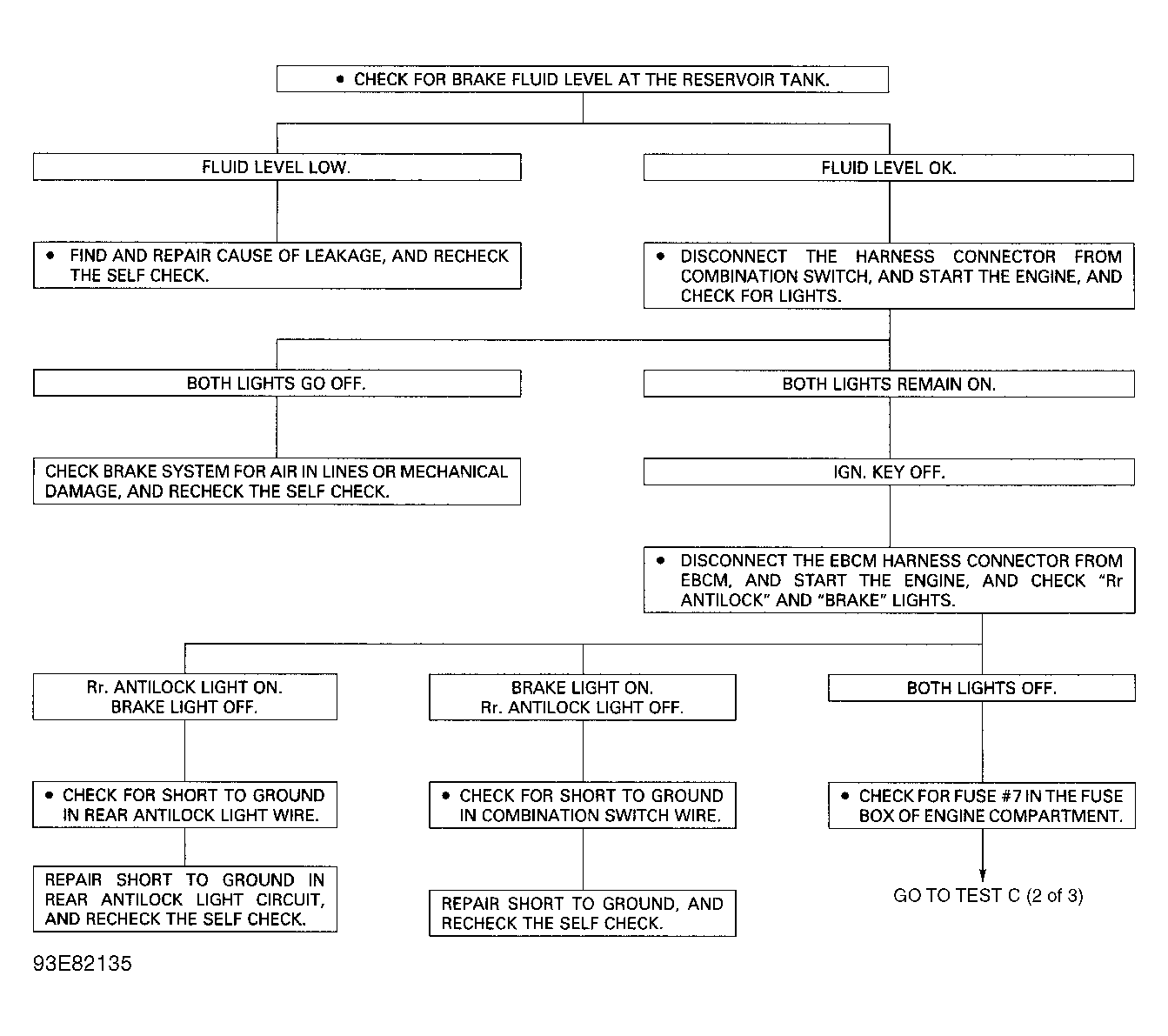

Fig 3: Anti-Lock Light & Brake Lt. On - 3 Of 3 (No Diag. Codes Exist)

Courtesy of ISUZU MOTOR CO.
