Instrument Panel - Standard
>>
Wiring Diagrams
Wiring Diagrams

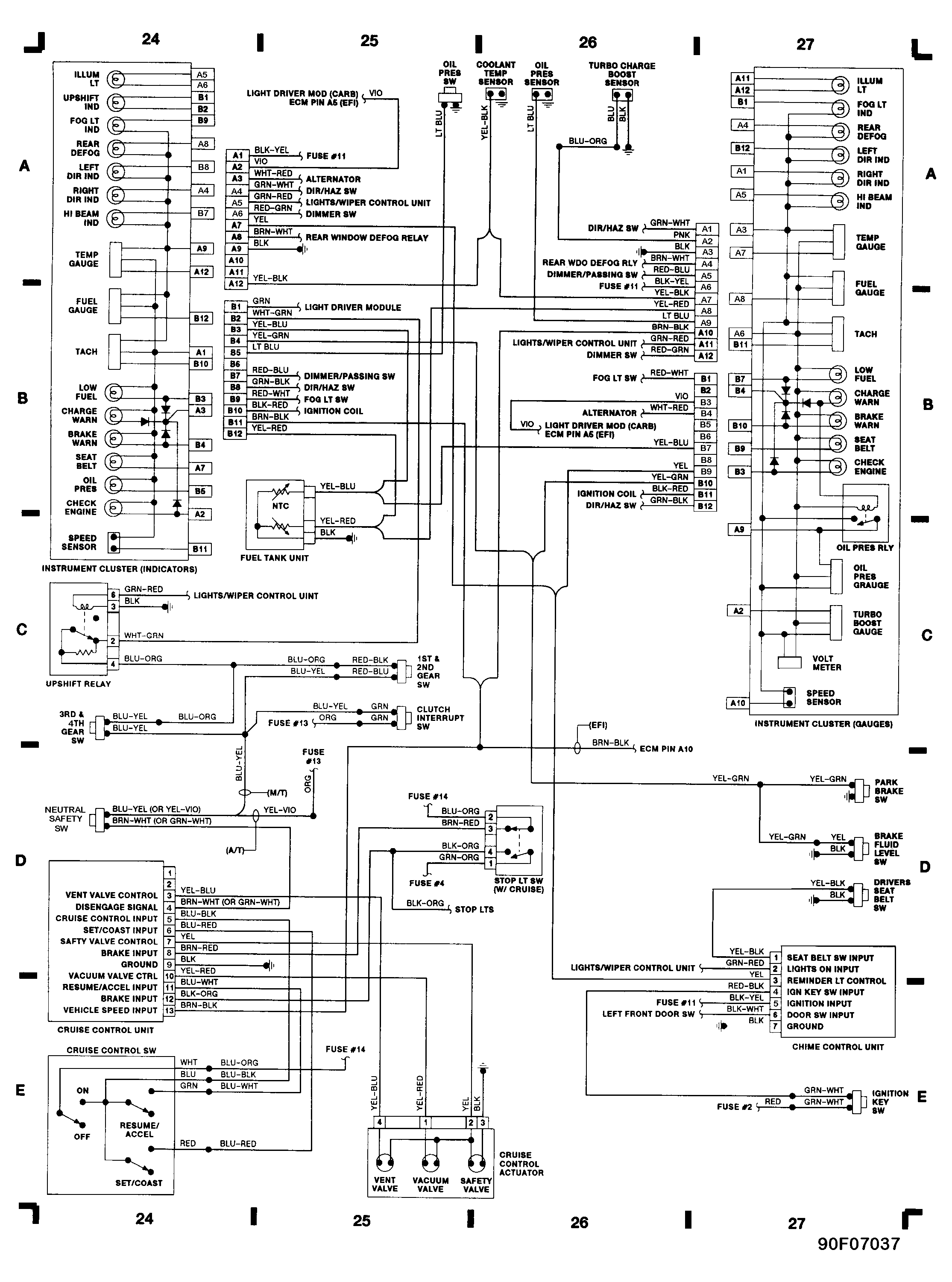

Fig 1: I-Mark Instrument Cluster Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
