With Tachometer

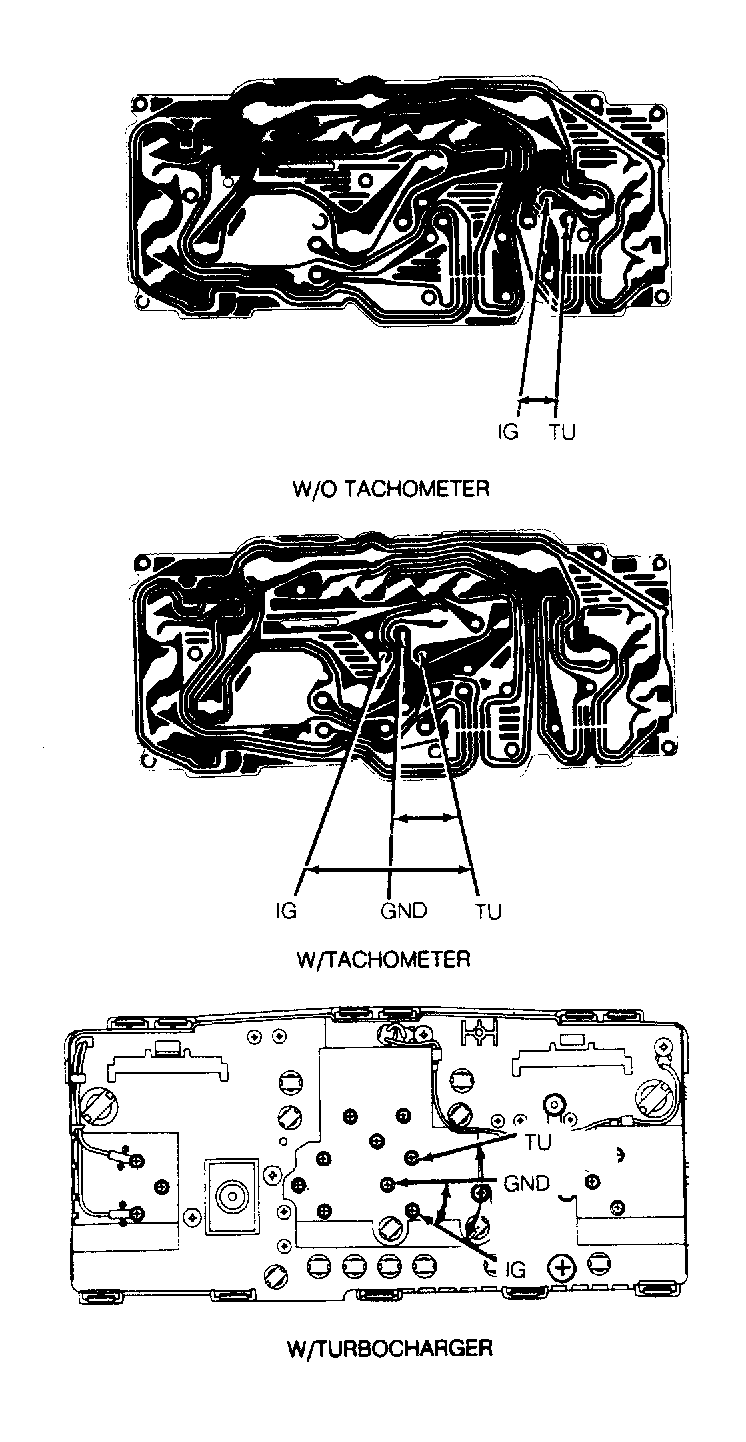

Measure resistance between "IG" and "TU" terminals. Resistance should be 96.1 ohms. Measure resistance between "TU" and "GND" terminals. Resistance should be 101 ohms. SeeFigure . If resistance is not as specified, replace temperature gauge.
