Wiring Diagrams

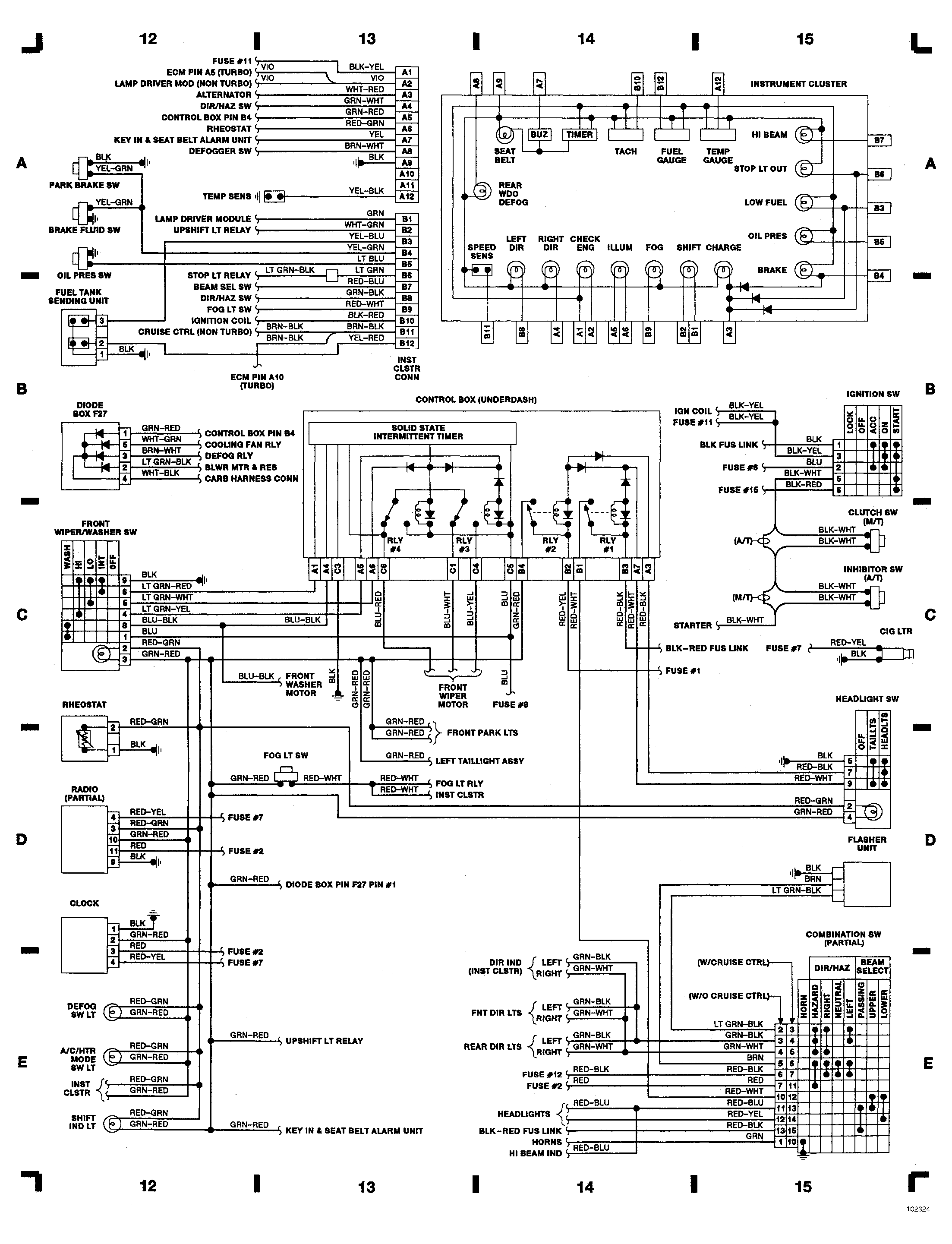

Fig 1: I-Mark Instrument Cluster Wiring Diagram

G102324

Courtesy of GENERAL MOTORS CORP.
