Vacuum Hose Routing--Non Turbo

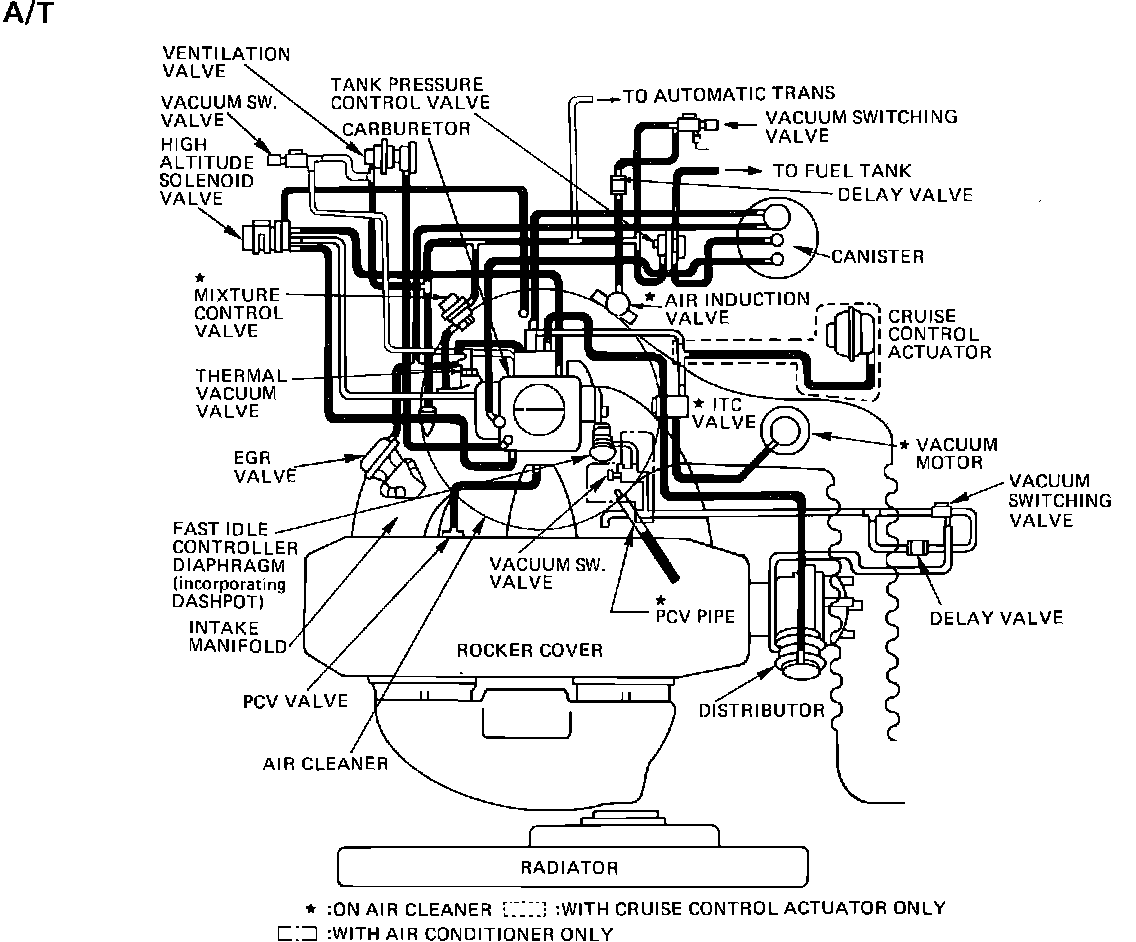

Fig. 3 Vacuum hose routing. 1987-88 4-90 (1.5L A/T):

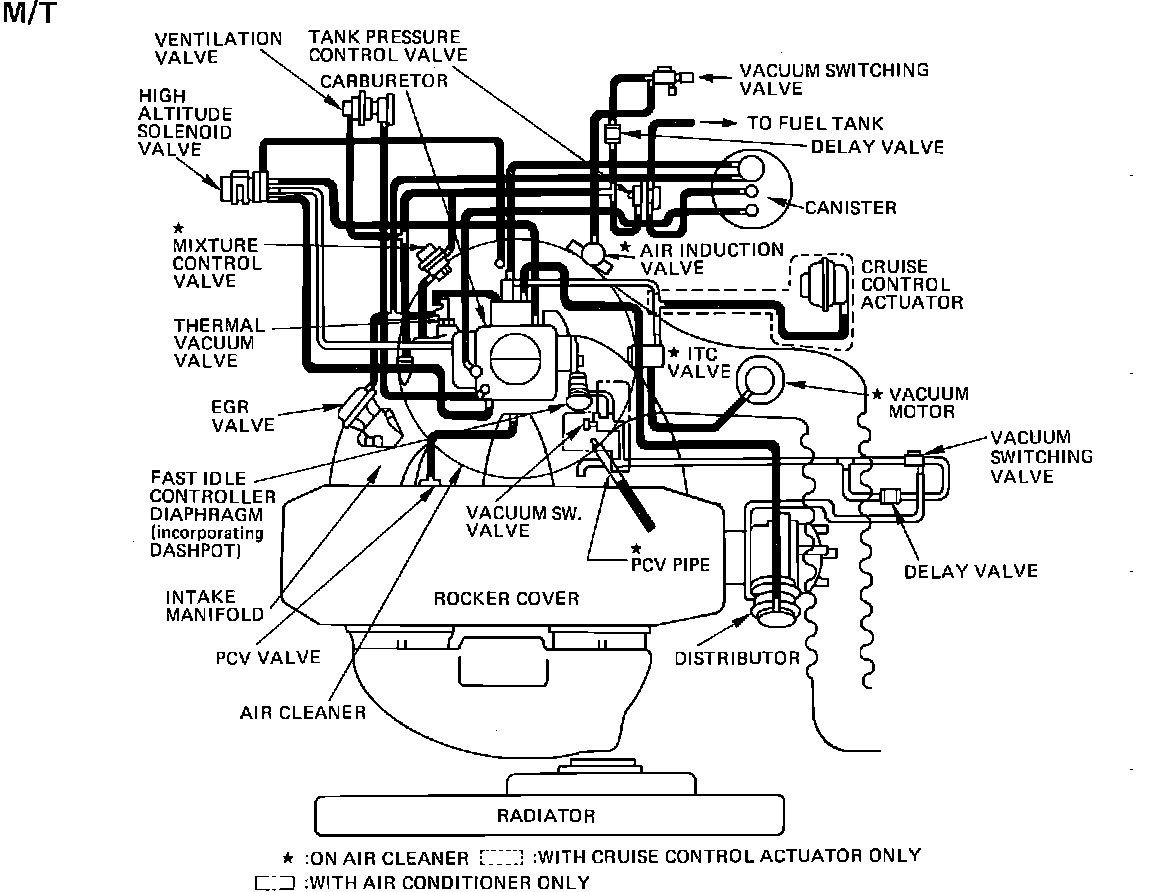

Fig. 3 Vacuum hose routing. 1987-88 4-90 (1.5L M/T):
