Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
Rear Def, Fog & Room Lamp, Clock, Wiper/Washers & Audio
Rear Def, Fog & Room Lamp, Clock, Wiper/Washers & Audio

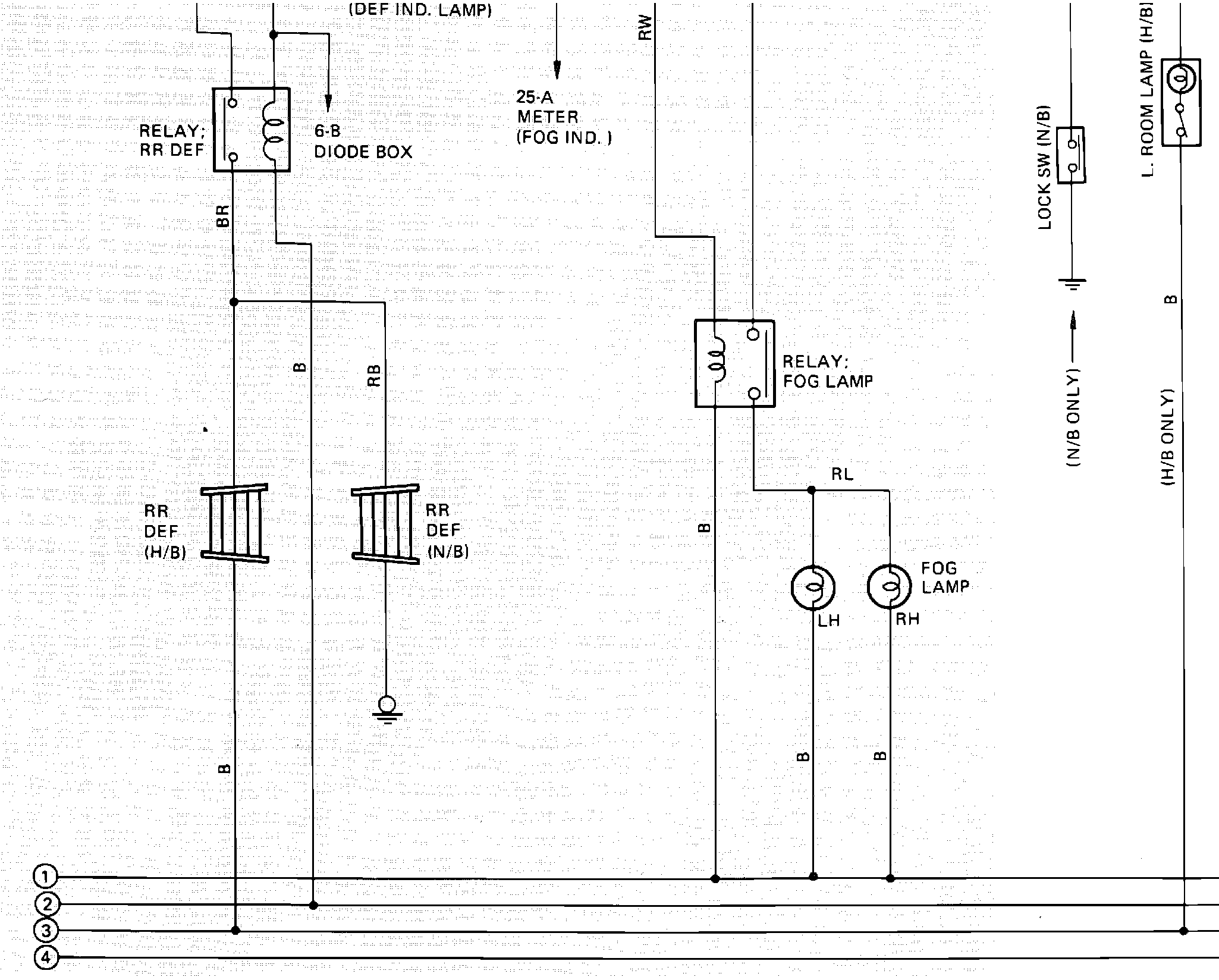

��|*(�|*ٖ}*��}*_�}*��~*��~*��*k�*Rear Defogger, Fog & Room Lamps, Clock, Wiper/Washers & Audio Wiring Circuit:
