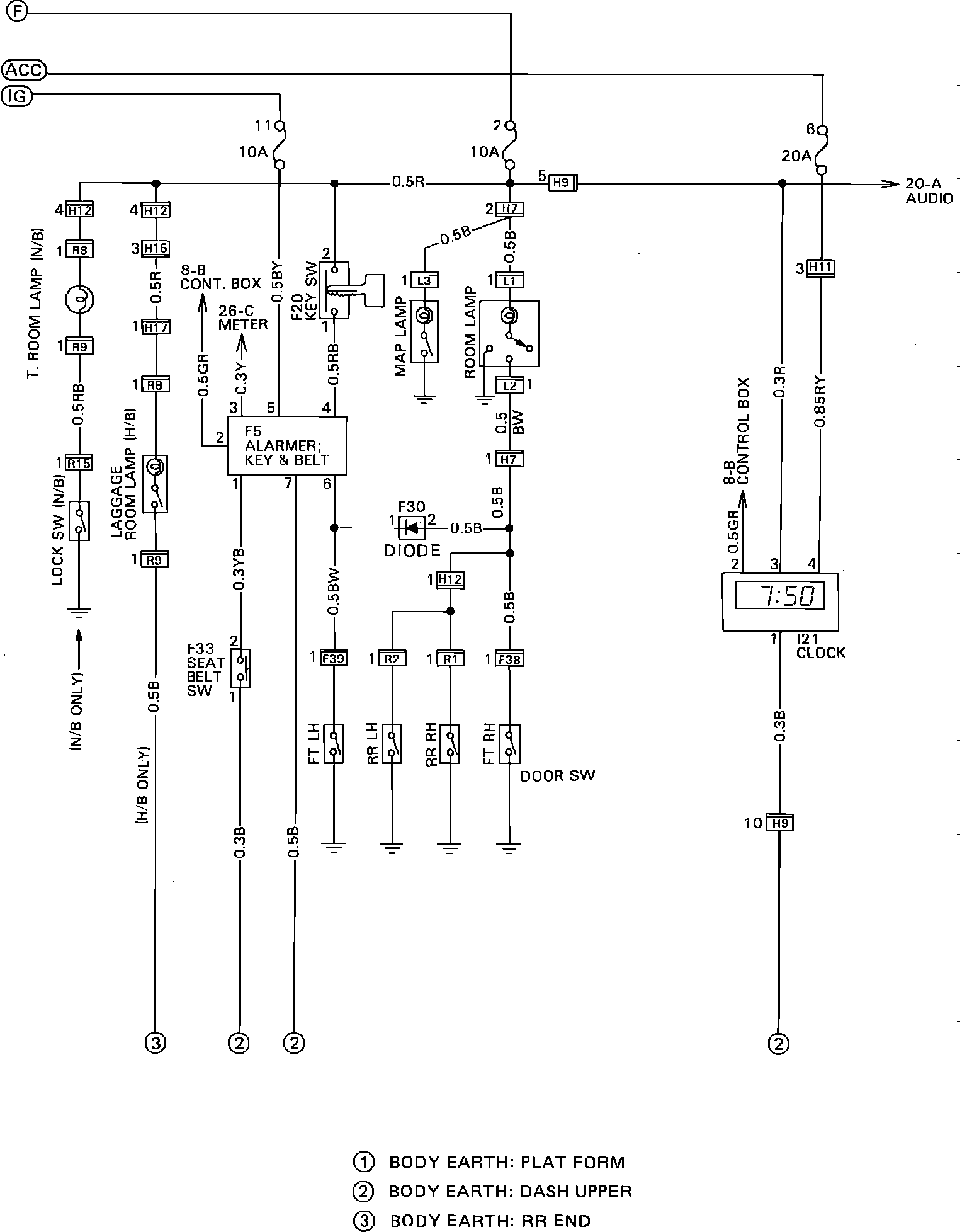

Interior Lights, Door Switch & Clock Wiring Circuit-Turbo

Interior Lights, Door Switch & Clock Wiring Circuit:
