Rear Suspension
Rear Suspension

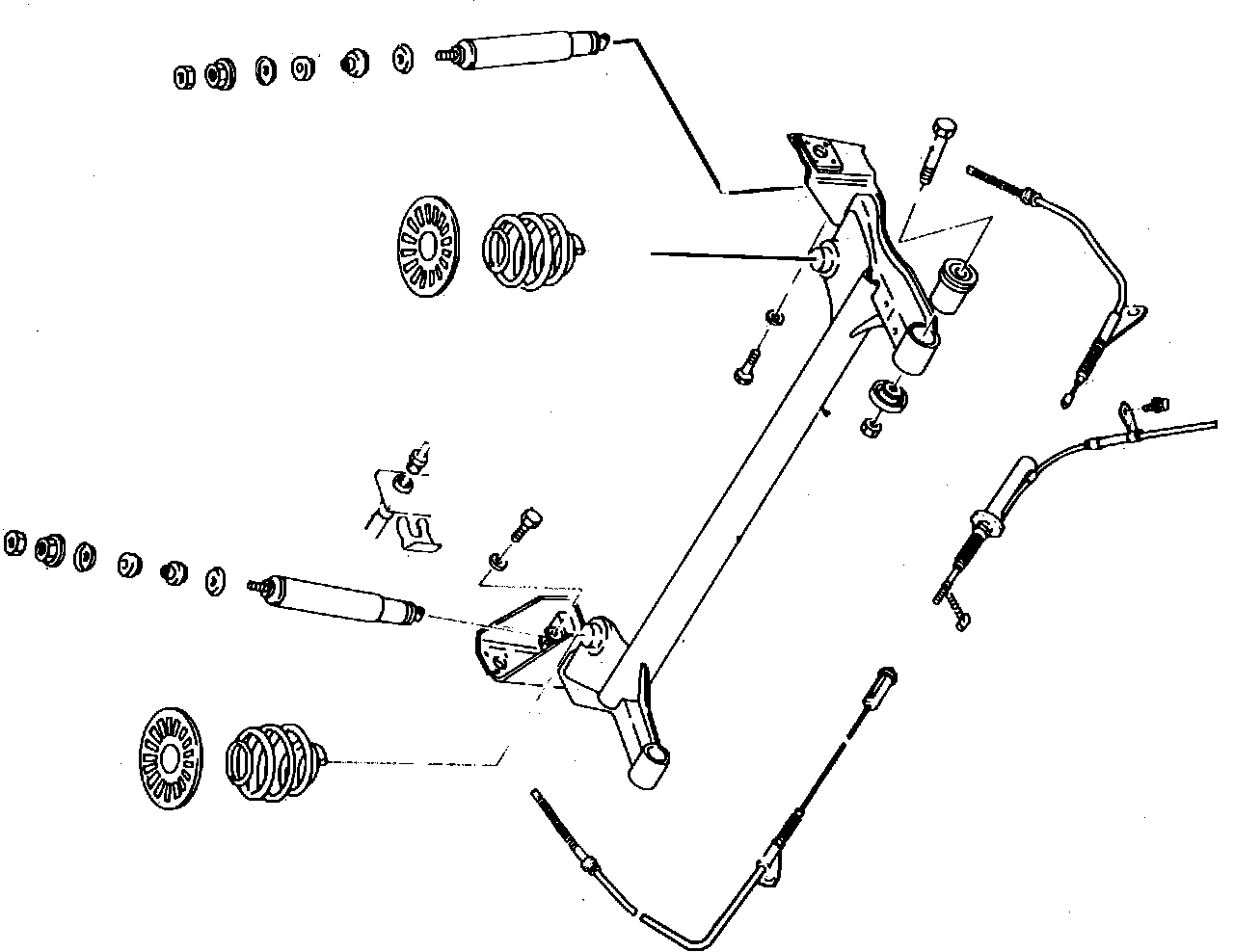

Fig. 5 Exploded view of rear suspension. I-Mark W/FWD:
Refer to
Fig. 5
for removal and installation of shock absorber.
