Fuel Gauge: P'Up

Connect ohmmeter to fuel gauge terminals. Resistance should be 25 ohms. SeeFig 1 . If not, replace gauge.

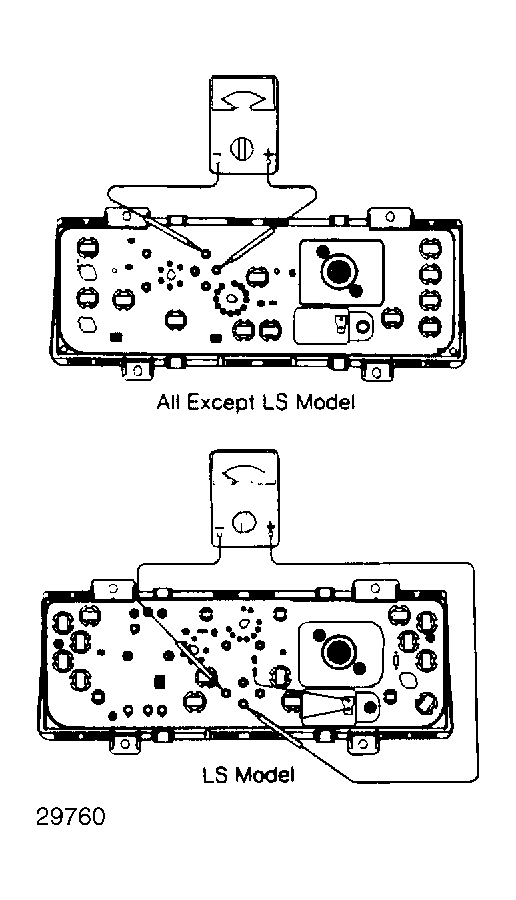

Fig 1: Ohmmeter Hookup Points for Testing P'UP Fuel Gauge

G29760
