Manual Steering Gears - (GEMMER/ROSS) Cam & Lever: Description
NOTE:
Some models may use other units. See IHC (Gemmer/Ross) Worm & Roller or IHC (Saginaw) Recirculating Ball in this Section.

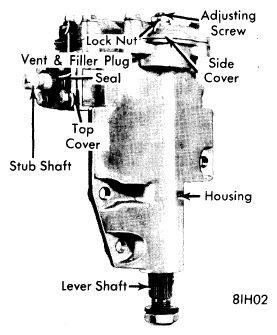

International Harvester uses two types of cam and lever steering gear assemblies. One assembly has a single cam follower mounted in lever shaft and other assembly has twin cam followers mounted in lever shaft. Lever shaft is adjustable for end play and is supported by the housing and side cover. Cam is preloaded by shims between top cover and housing. The cam is supported at both ends by ball bearings.
